Fine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train)

SAL Small Packet
Add to Wish List 17 ppl added
Sales Price : 1,976 yen
about13.03USD
List Price : 2,288yen
Points Acquired : 19pointsOther Currencies
Manufacturer:Tomix
Scale:N Scale
Material:ABS , Nickel Silver , Stainless
Series:Track
Release Date : Late Nov., 2017
JAN code : 4543736012269
Item code:1226
Fine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train)
User Area

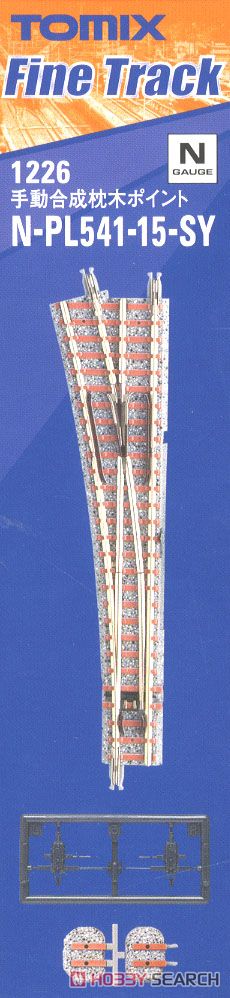

PackageFine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train) Package1
Item pictureFine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train) Item picture1
Other pictureFine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train) Other picture1
About itemFine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train) About item1Fine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train) About item2

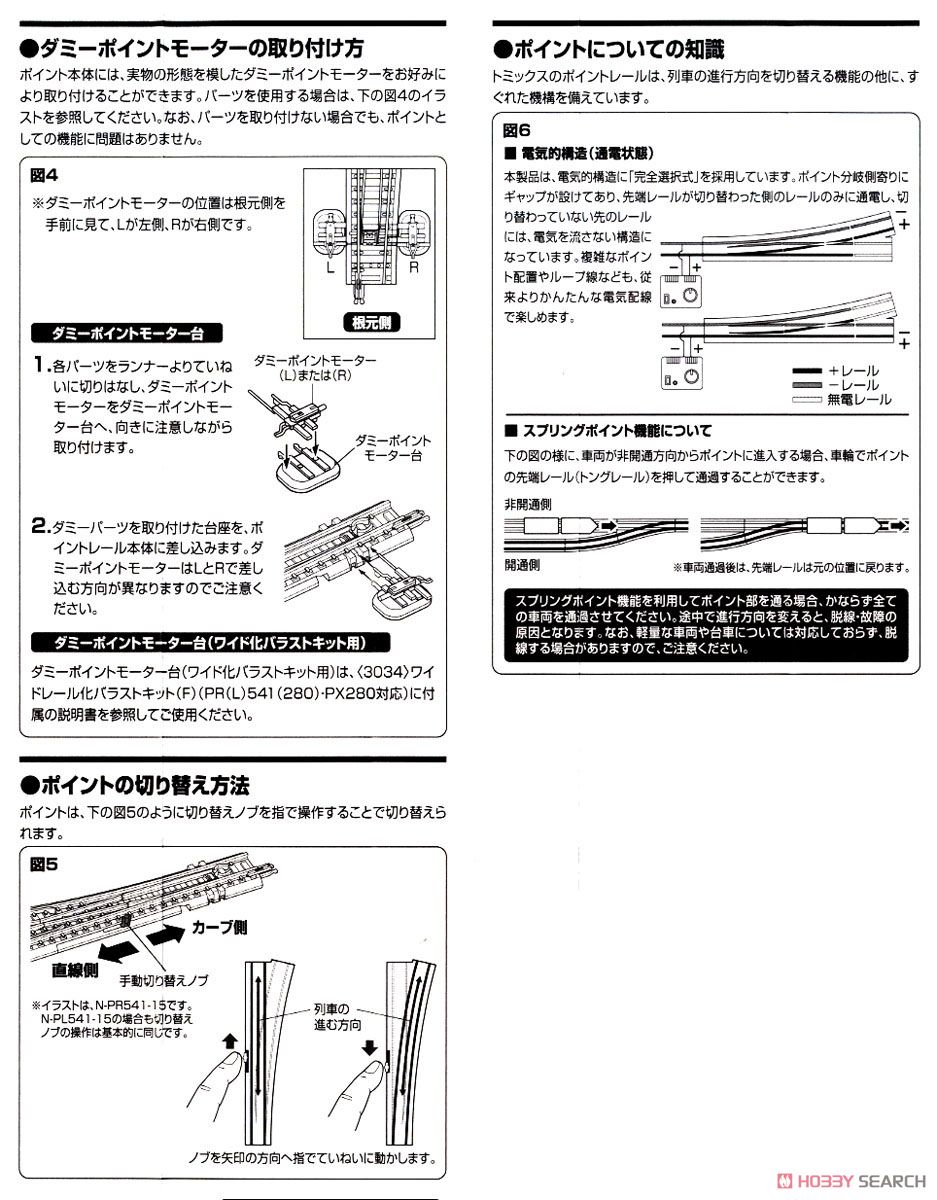

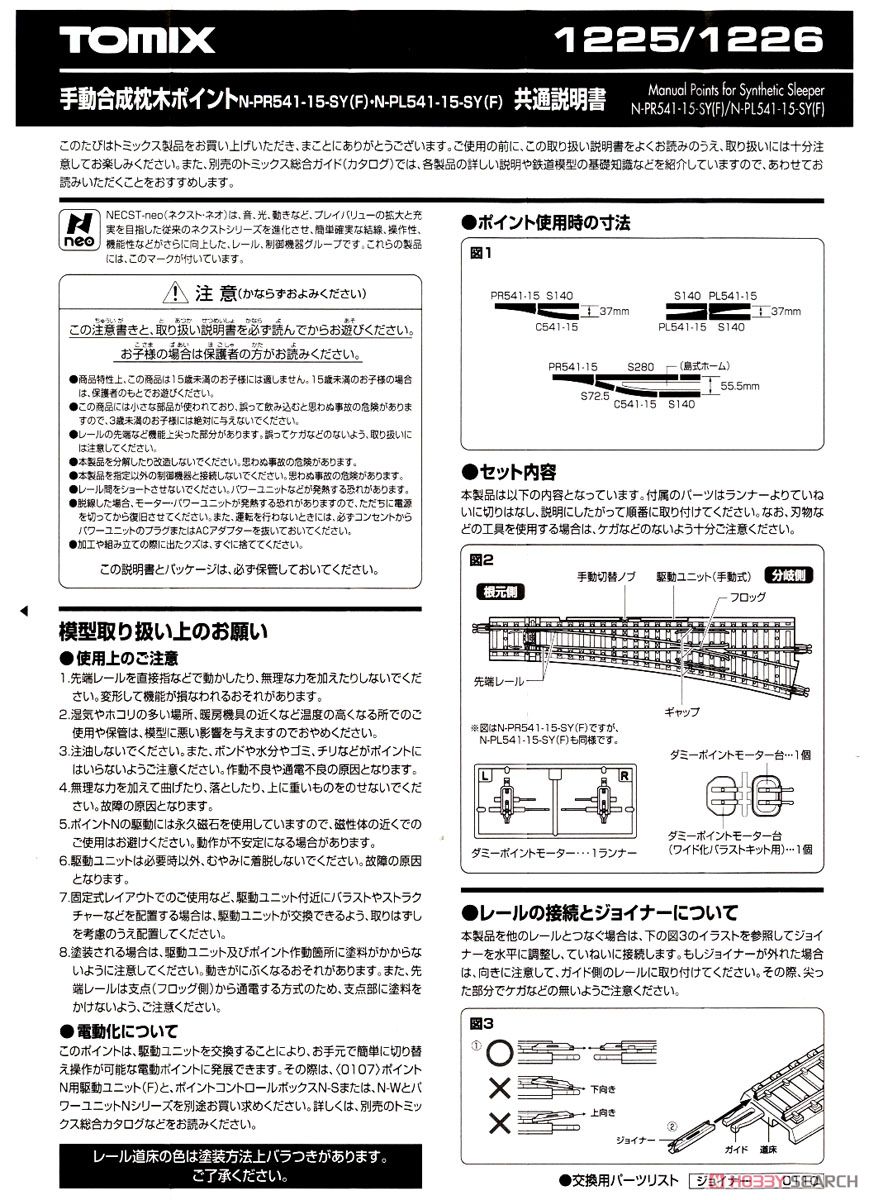

Assembly guideFine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train) Assembly guide1Fine Track Manual Points for Synthesis Sleeper N-PL541-15-SY (F) (Model Train) Assembly guide2
Item series :

This item is limited to 50 per household.

- Tomix standard type manual point expressing a synthetic resin made sleeper that branches to 15 ° with a curve radius of 541 mm in the left direction at a length of 140 mm.

[Product feature]
- This is a manual point rail that recreates a synthetic resin sleeper that has become more opportunities to see in recent years as a new sleeper replacing a wooden sleeper easy to corrode.
- The product is reproduced based on the real thing arrangement of the branch destination branch different from the wooden sleeper.
- Moreover, basic specifications such as attaching a dummy point motor conform to the conventional point N series.

- Adopt fine track rail.
- Easy and reliable connection, synthesized cherry tree expressions.
- Points sold separately Electric pointed by one N drive unit possible.
- Completely selected type, you can enjoy with easy electric wiring even with reverse operation and complicated point installation.
- Gap realized by exchanging with an optional gap joiner.
- Can be used as a spring point.
- Dummy point motor included.

[Characteristic]
- Completely selected formula, can be used as a spring point

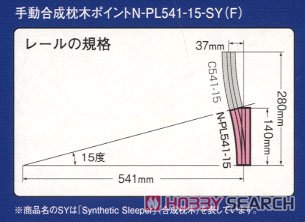

- Branch to double track distance 37 mm in combination with C541 - 15 rail
- Two pairs realize a single-crossover wire with a double-wire spacing of 37 mm at a distance of 280 mm
- Gap realized by exchanging with an optional gap joiner
- A fully selective type of a system that completely switches both energization of + - - of two rails, it can enjoy with simple electric wiring also in reverse driving and complicated point setting
- Points sold separately Electric pointed by one N drive unit, operated by combination of point control box N and power unit N
- Dummy point motor included
- Durable die-cast molded race
- Synthetic cherry tree expressions, beautiful appearance painted ballast and sleepers
- The rails are snapped together with snare, easy and secure connection
- Improved joiner for joiner
- Connection compatible with conventional tomics rails


[Product Details]
- Body:
· Manual Synthesizer Tie Point N - PL 541 - 15 - SY (F)
- accessories:
· Runner parts: Dummy point motor
· Runner Parts: Dummy Point Switching Machine Base

( This is a machine translation. Please allow for possible misinterpretations in the text. )

Item Size/Weight : 19 x 4.2 x 2.4 cm / 48g
