Product Description

[overview]

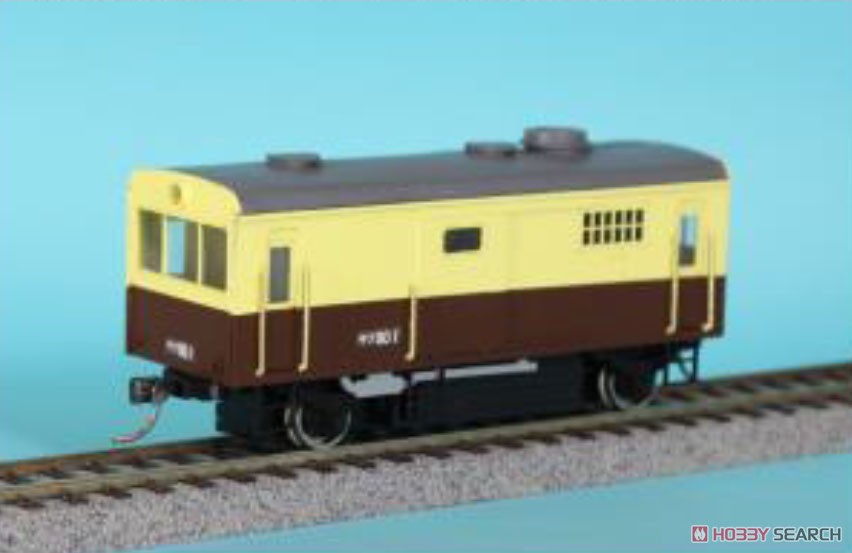

- A prototype vehicle with a diesel engine and driver's cab installed in a boxcar.

[Features]

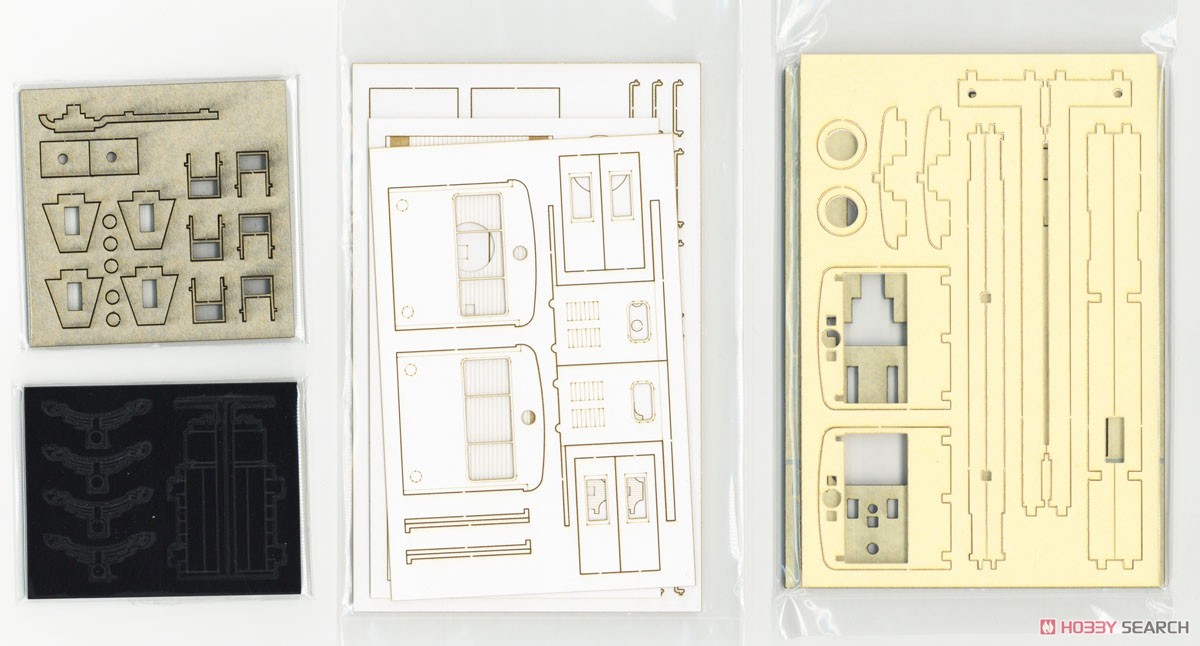

- Laser cut from acrylic resin board and paper, with precise dimensions.
- The acrylic resin frame structure makes assembly easy.
- Internal wiring is connector type, no soldering is required.
- Since a power unit is included, the only part that needs to be purchased separately is the coupler.

[Kiwa 90 Series Diesel Freight Car Specification]
- Finished dimensions (mm): Approx. L101 x W32 x H47
- Finished weight (g): Approx. 80
- Drive method: Single-axis drive (12V)

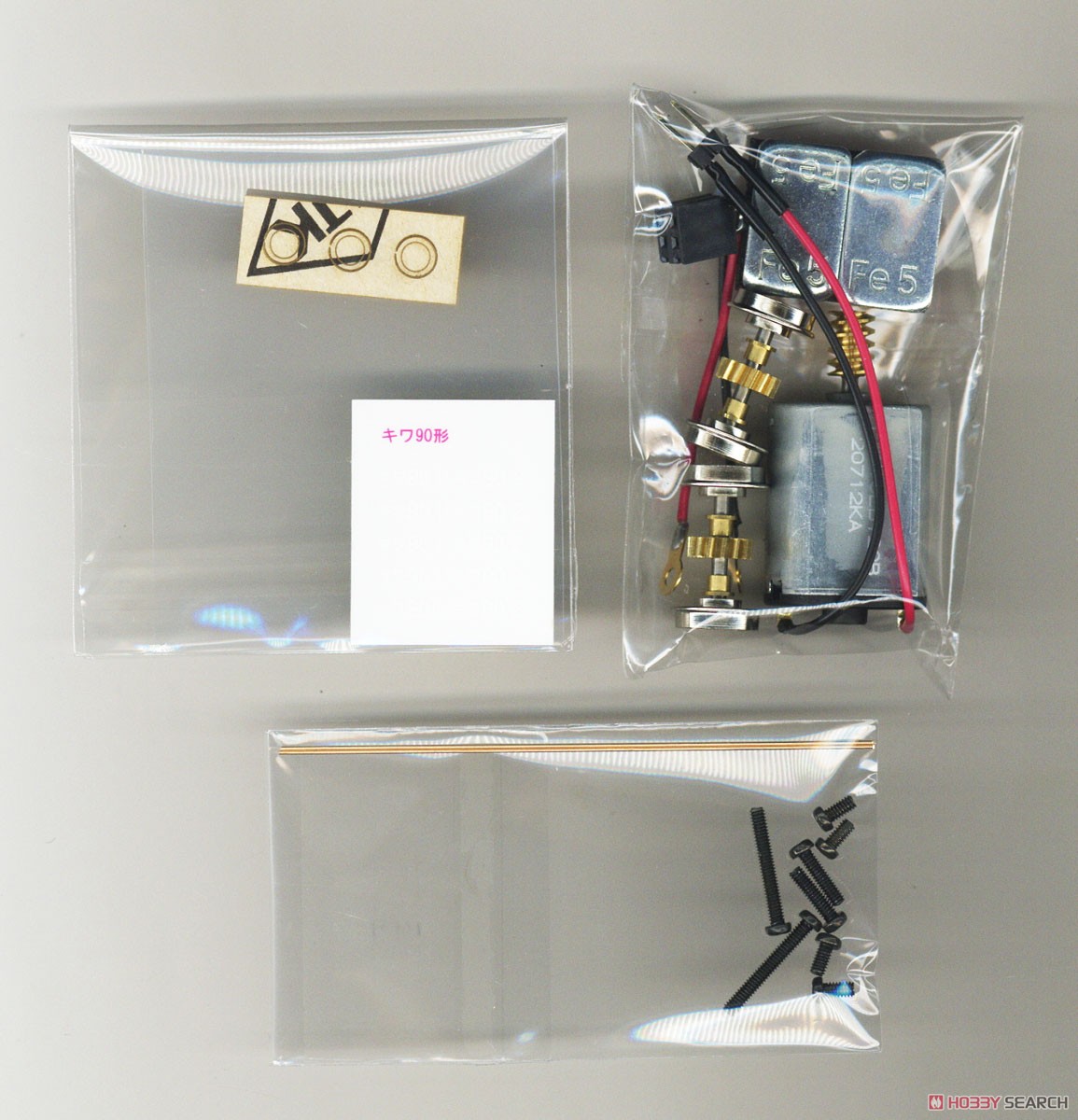

- accessories
・1 geared motor
- 2 geared wheels
・1 set of wiring with connector
- Phosphor bronze Φ0.3×74mm 2 pieces
- 2 M2 x 4 screws
- 2 M2 x 15 screws
- 2 M2 x 8 screws
・2 sets of 5g weights
・1 transparent window panel
・1 label sticker
- Separately purchased parts
・Coupler Kadee No. 5

*Appearance and specifications may be subject to change.


Item Size/Weight : 16.8 x 12.6 x 3 cm / 171g

Product Specifications

Item series

Unassembled Kit

Organization

Japan National Railways (JNR)

Region

Kyushu

Item code

HT-866K

JAN code

4582330655410
