──Please come to Miyazaki! Red sunlight welcomes you!

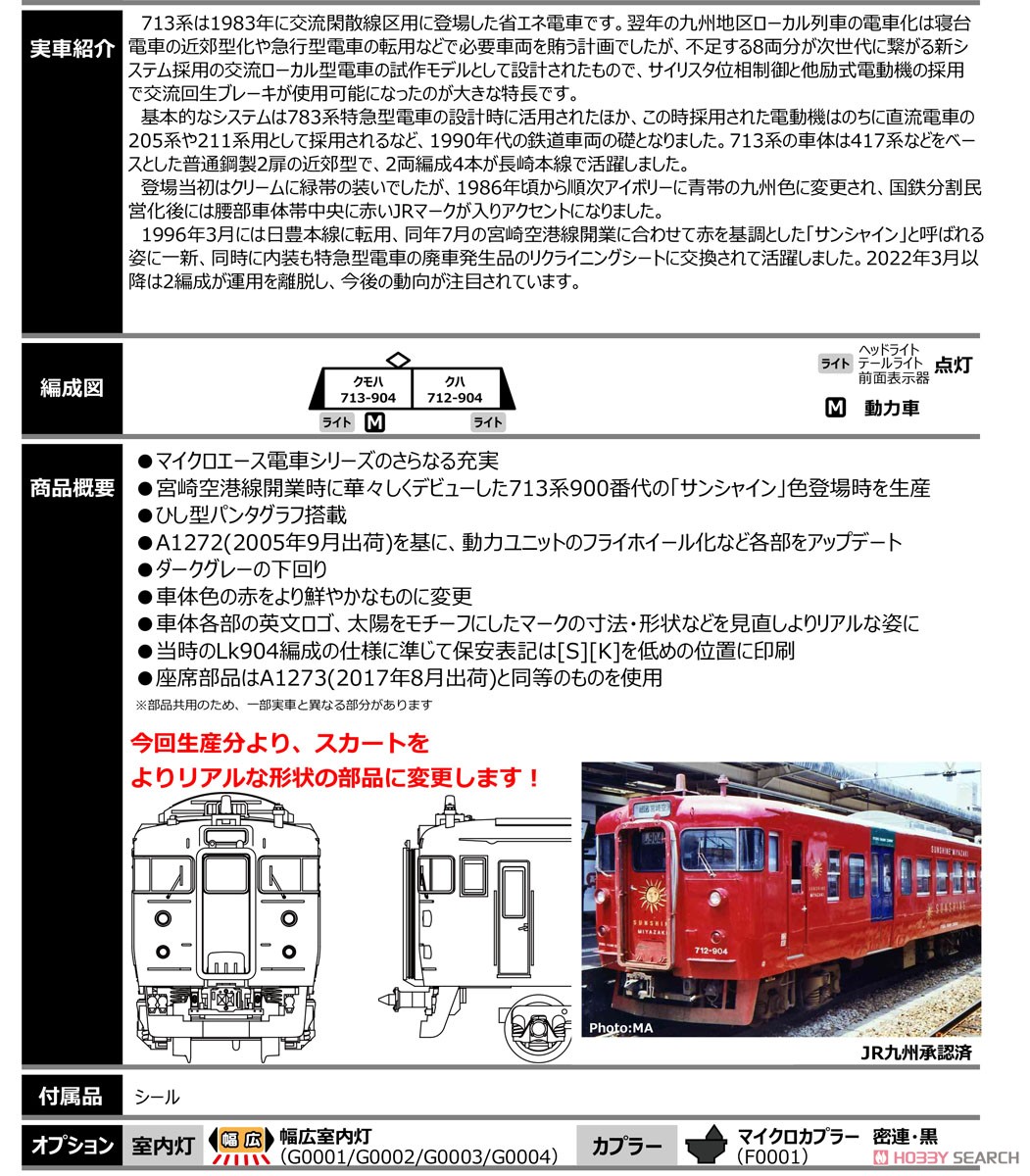

[Actual vehicle introduction]
- The 713 series is an energy-saving train that was introduced in 1983 for use on AC quiet lines.
- The plan was to convert local trains in the Kyushu area to electric trains the following year by converting sleeper trains to suburban trains and repurposing express trains to provide the necessary vehicles. It was designed as a prototype train model, and its major feature is that it uses thyristor phase control and a separately excited electric motor, making it possible to use AC regenerative braking.
- The basic system was utilized when designing the 783 series limited express train, and the electric motor adopted at this time was later adopted for the 205 series and 211 series DC trains, forming the basis of railway vehicles in the 1990s. have become.
- The 713 series car body is a two-door suburban type made of ordinary steel based on the 417 series, and four two-car trains were used on the Nagasaki Main Line.
- When it first appeared, it was dressed in cream with a green belt, but from around 1986 it was gradually changed to the Kyushu color of ivory and blue belt, and after the division and privatization of Japanese National Railways, a red JR mark was added to the center of the body belt on the waist, which became an accent. .
- In March 1996, it was converted to the Nippo Main Line, and in line with the opening of the Miyazaki Airport Line in July of the same year, it was redesigned to a red-based appearance called [Sunshine], and at the same time, the interior was made from scrapped limited express train cars. It was replaced with a reclining seat and worked well.
- Two trains will no longer be in operation after March 2022, and future trends are attracting attention.
[Product Summary]
- Further enhancement of the Micro Ace train series

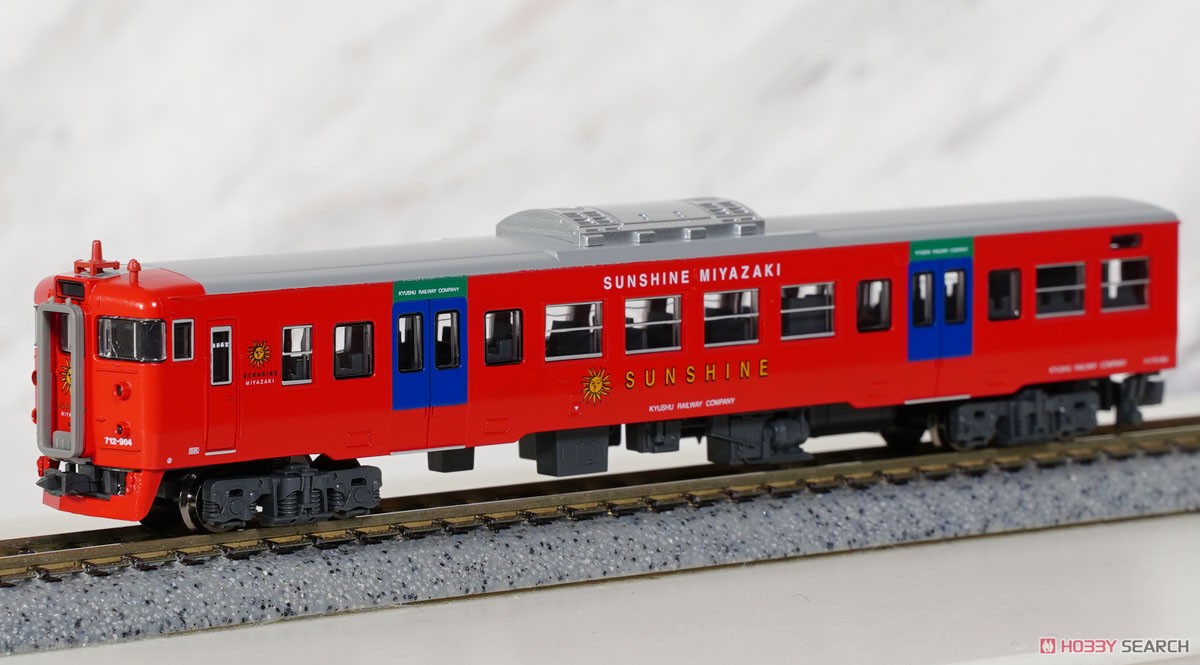

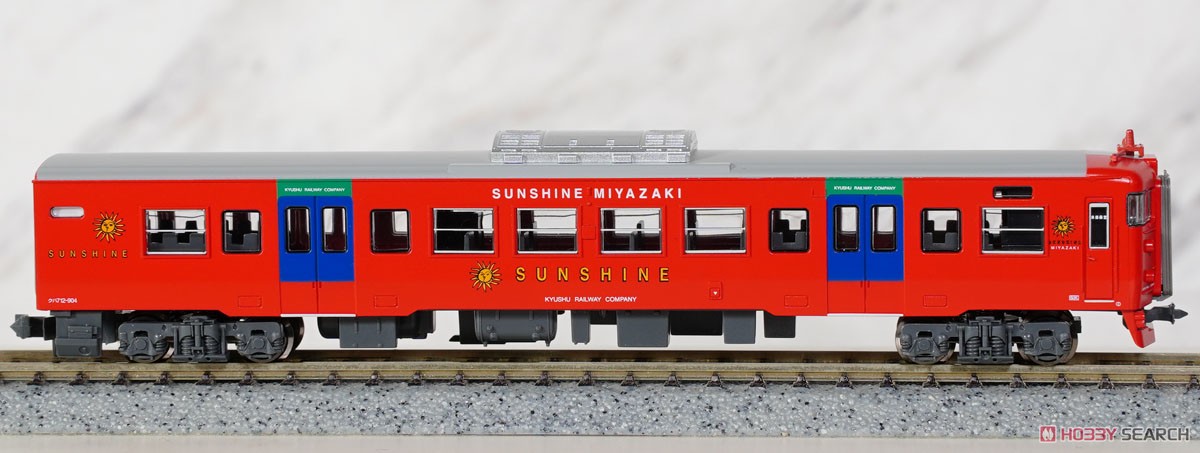

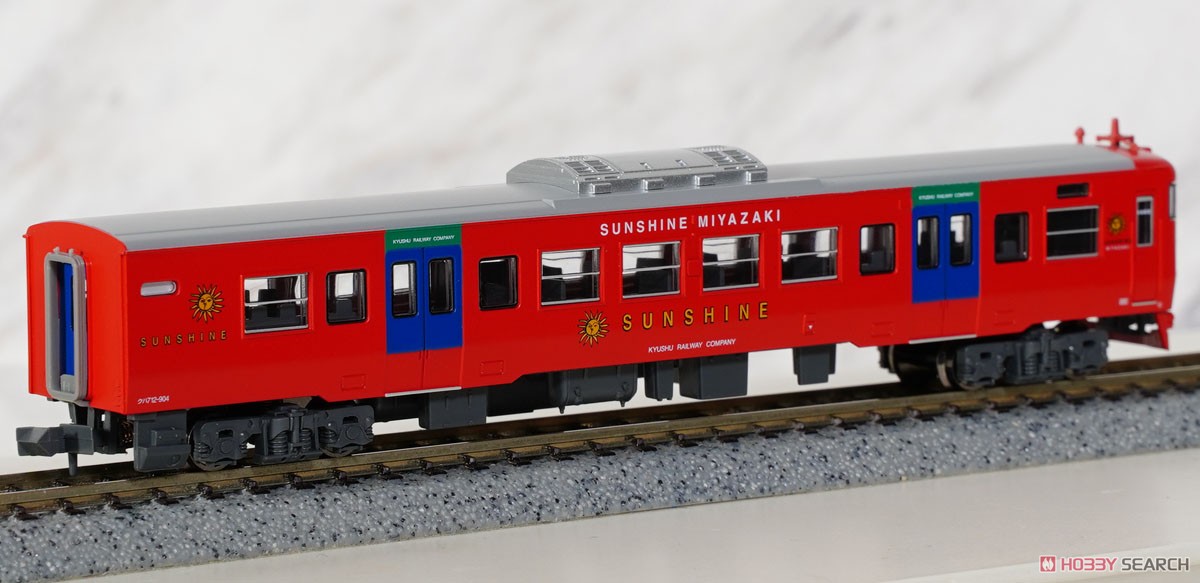

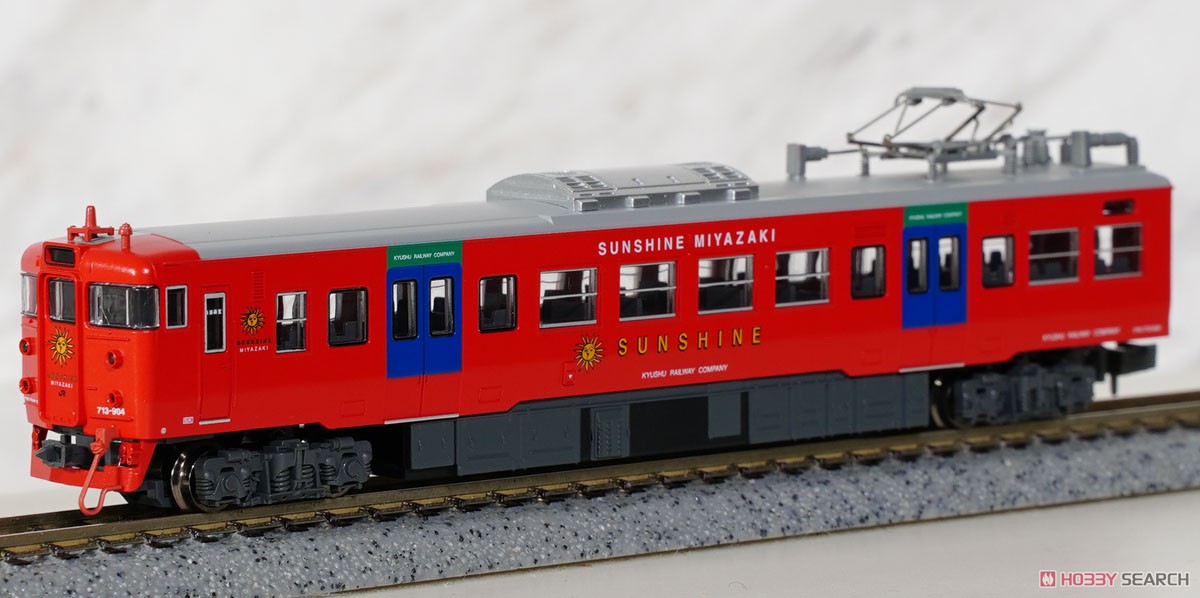

- Produced when the 713 series 900 series, which made its spectacular debut when the Miyazaki Airport Line opened, was released in [Sunshine] color.

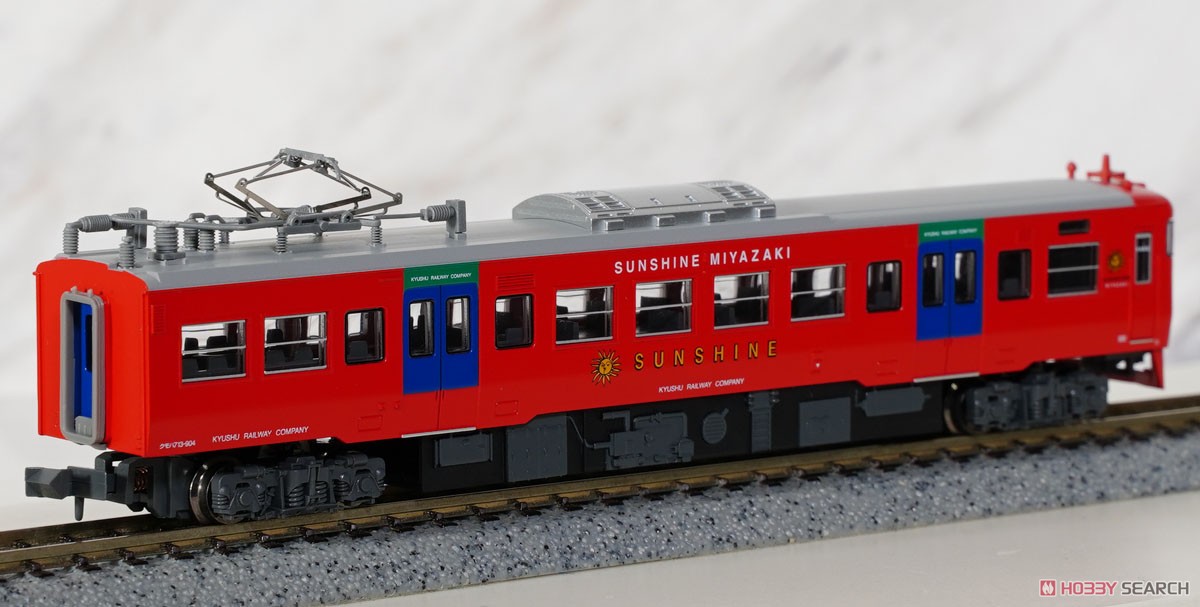

- Equipped with diamond-shaped pantograph
- Based on A1272 (shipped in September 2005), various parts have been updated, including a flywheel for the power unit.
- Dark gray underbody
- Changed the red color of the vehicle to a more vivid one
- The dimensions and shape of the English logo on each part of the car body and the sun-themed mark have been revised to give it a more realistic appearance.
- In accordance with the Lk904 formation specifications at the time, the safety markings are printed with [S] and [K] in lower positions.
- Seat parts are the same as A1273 (shipped in August 2017)
- Starting with this production, the skirt will be changed to a more realistic shaped part!
*Due to shared parts, some parts may differ from the actual vehicle.

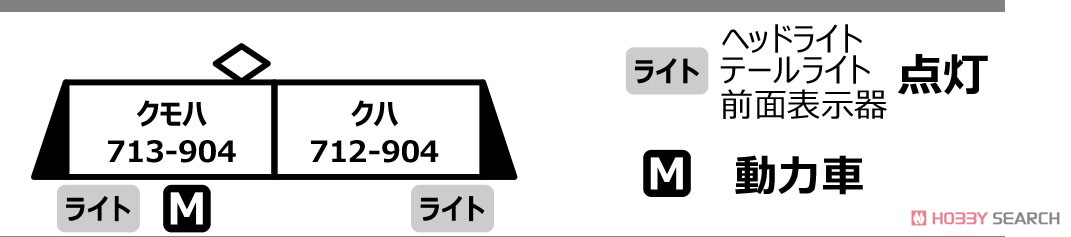

[Organization diagram]
Kumoha 713-904 +
Kuha 712-904[accessories]

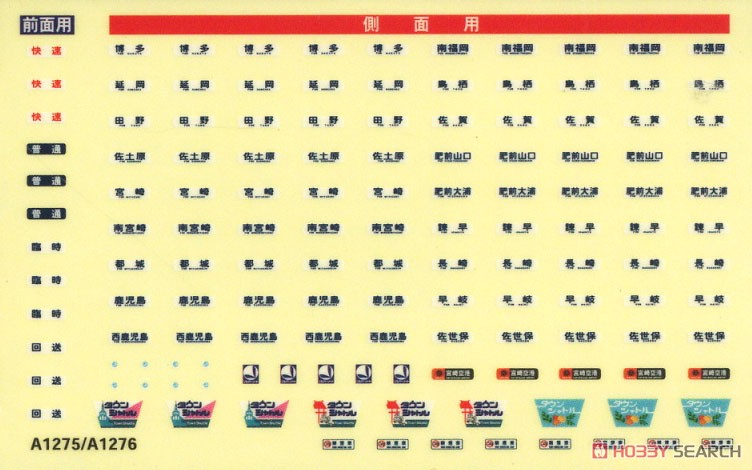

- sticker
[option]
- Wide interior light: G0001/G0002/G0003/G0004
- Micro coupler tight connection, black: F0001
( This is a machine translation. Please allow for possible misinterpretations in the text. )
