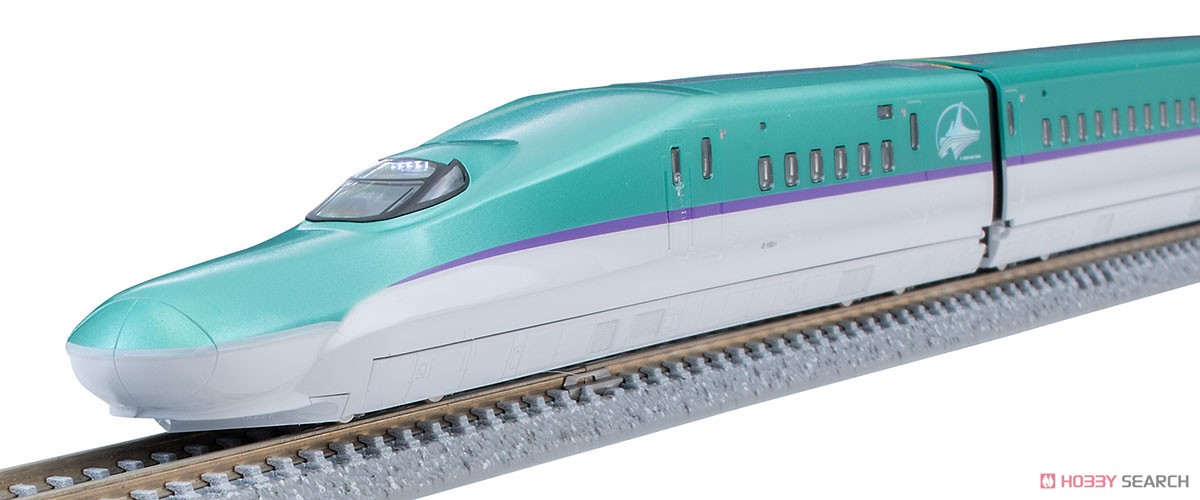

──The Shinkansen of Hokkaido has come all the way! H5 series renewal
[Actual vehicle guide]

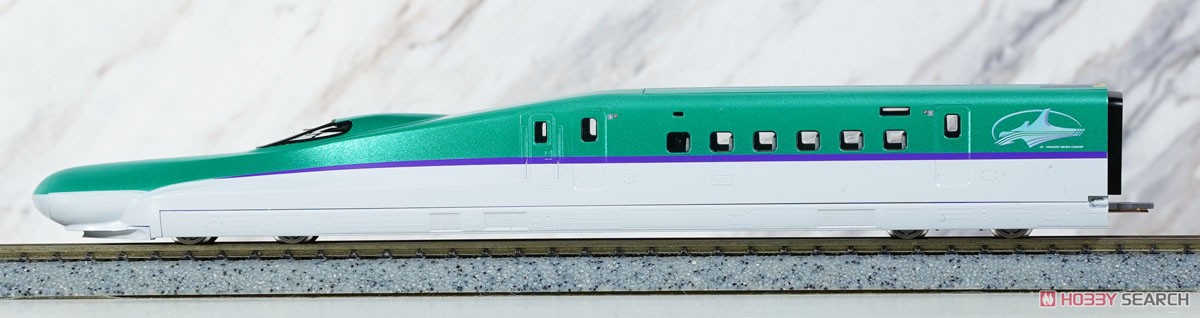

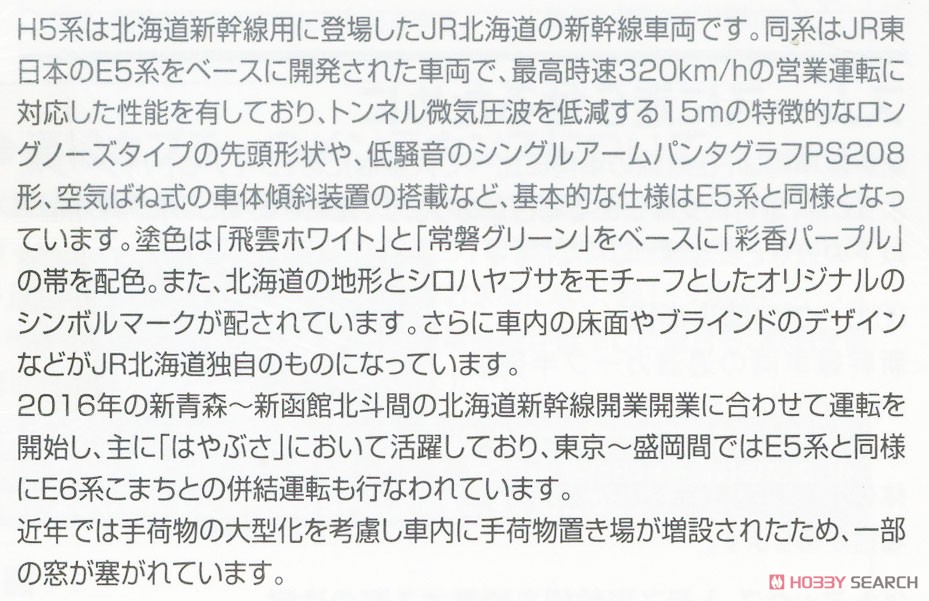

- The H5 series is a Shinkansen vehicle owned by JR Hokkaido that was introduced in 2014 and began operation in 2016 when the Shin-Aomori-Shin-Hakodate-Hokuto section of the Hokkaido Shinkansen opened.
- Based on the E5 series Shinkansen owned by JR East, some of the interior and exterior have been changed, and the exterior features a symbol mark with a Hokkaido motif and Ayaka purple side bands.
- In recent years, baggage storage areas have been added inside the train in consideration of larger baggage, so some windows are blocked.
- It is mainly used in [Hayabusa], and like the E5 series, it is operated in conjunction with the E6 series Komachi between Tokyo and Morioka.
[point]
- Reproduces the appearance of the luggage storage window being blocked, similar to the E5 series.
- Added gray printing to the anti-slip on the roof
[Product features]

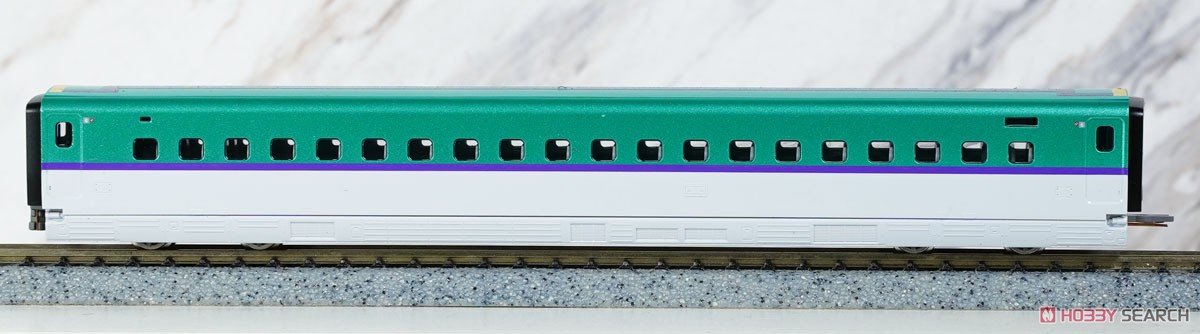

- In line with the added baggage storage areas in cars 1 to 9, some windows of cars 1 to 8 are now covered.
- Reproduce the anti-slip on the roof with gray printing

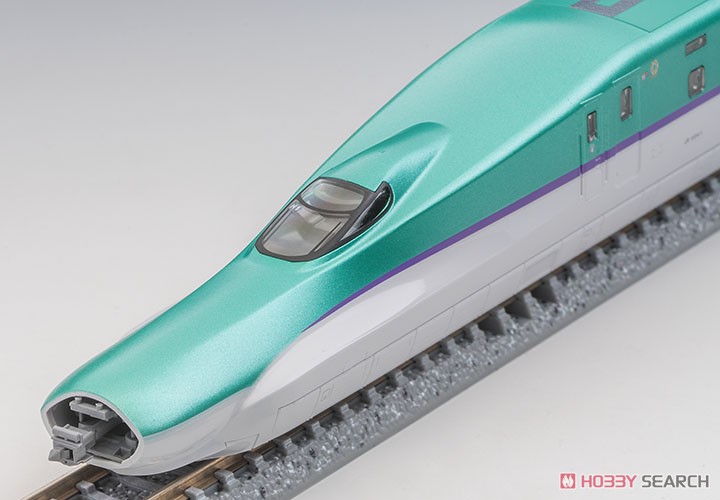

- Movable hood equipment

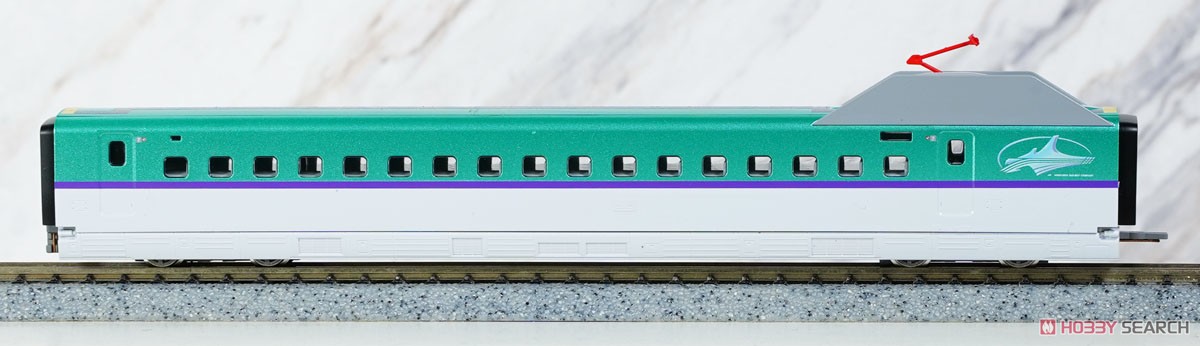

- Movable pantograph equipment
- Adopts hook/U-shaped energizing coupler
- The cab side of the H514 type that is connected to the E6 series etc. is equipped with a TN coupler.

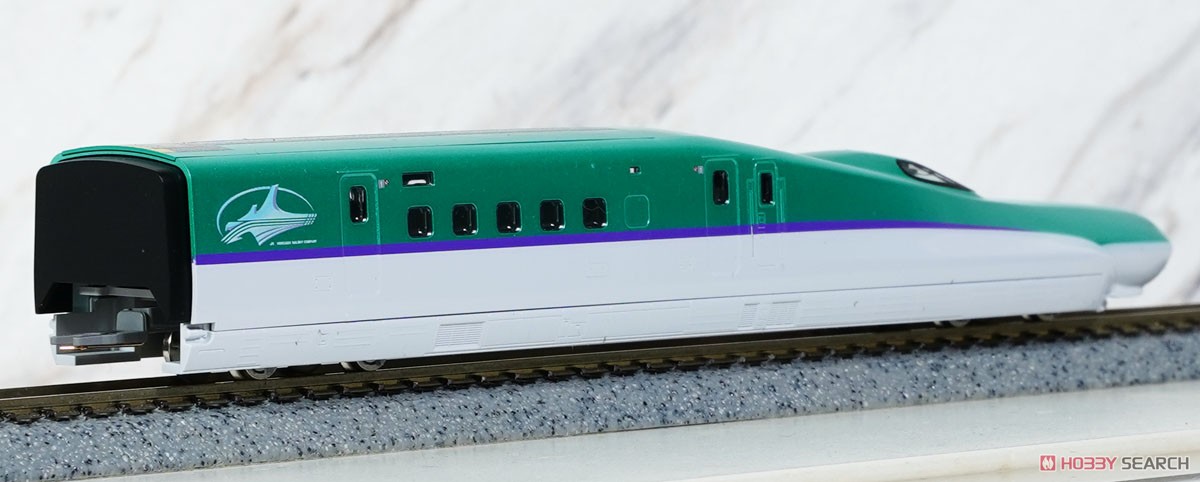

- The symbol mark, Gran Class mark, and car number are already printed.
- The car number can be selected and a transfer sheet is included.

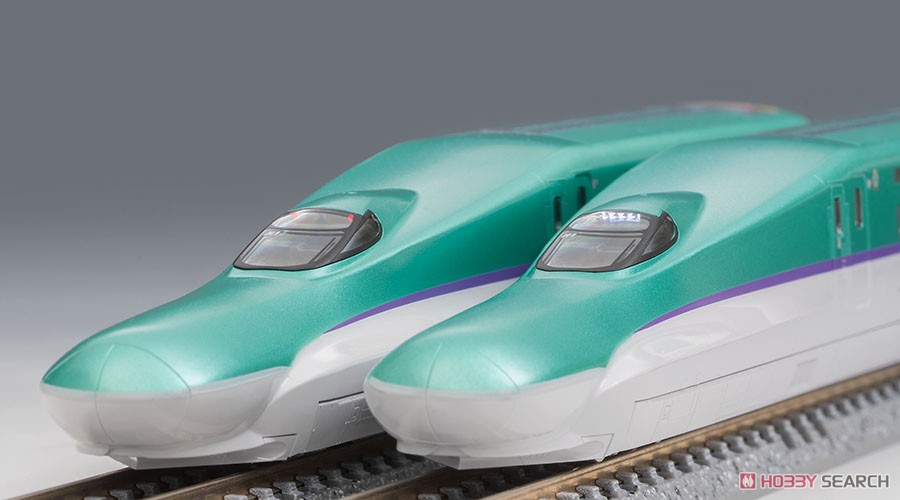

- Head and tail lights are equipped with a constantly lit board
- Headlights are lit by white LEDs and taillights are lit by red LEDs.
- H514 type has head/tail light ON/OFF switch
- Power with flywheel, new current collection system, silver wheels adopted
- Adopts M-13 motor

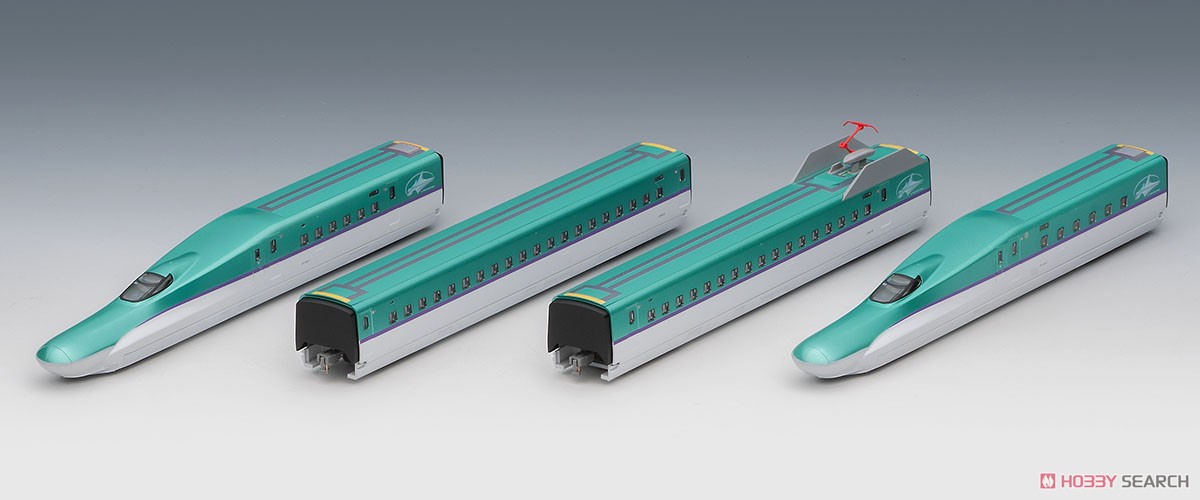

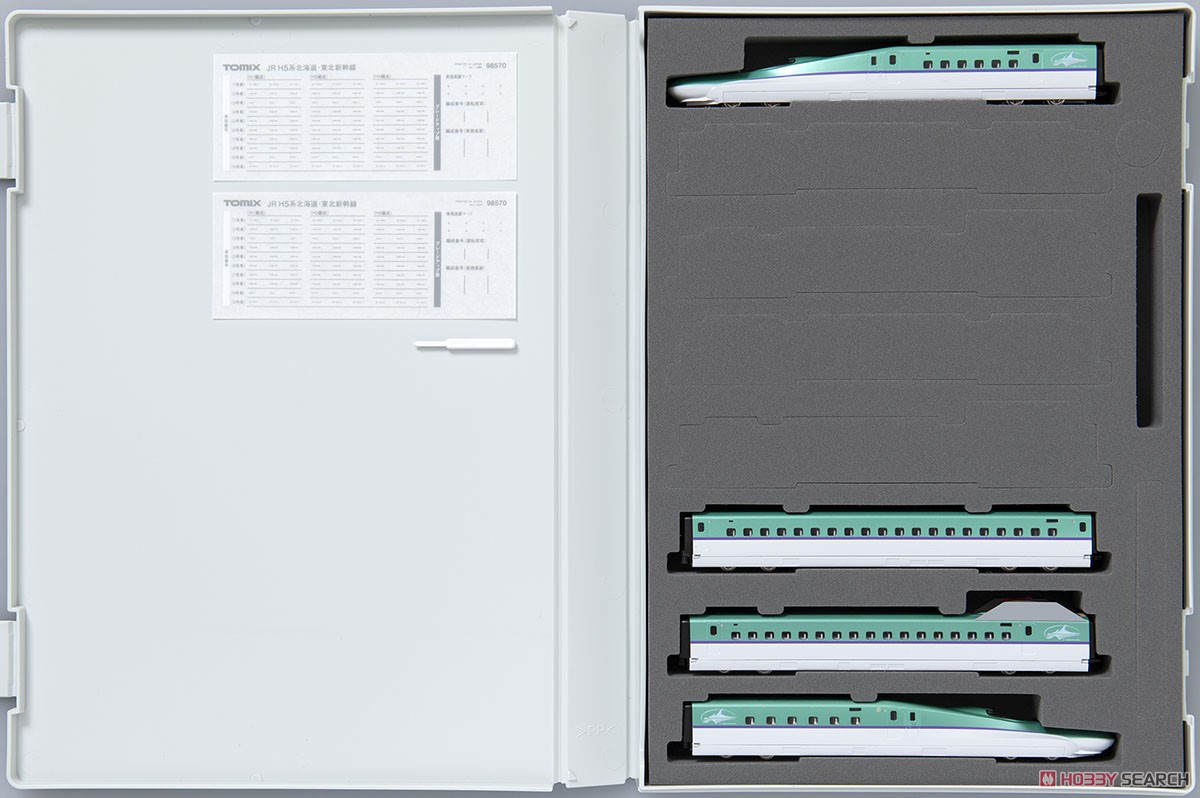

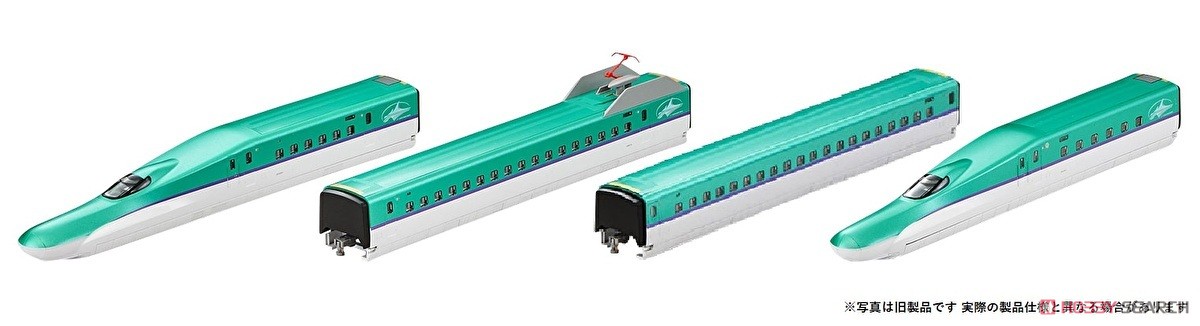

[set content]
- H523-0
- H526-300
- H525-100(M)
- H514-0
[accessories]
- Parts: Power truck installation auxiliary rod
- Transfer sheet: car number, etc.

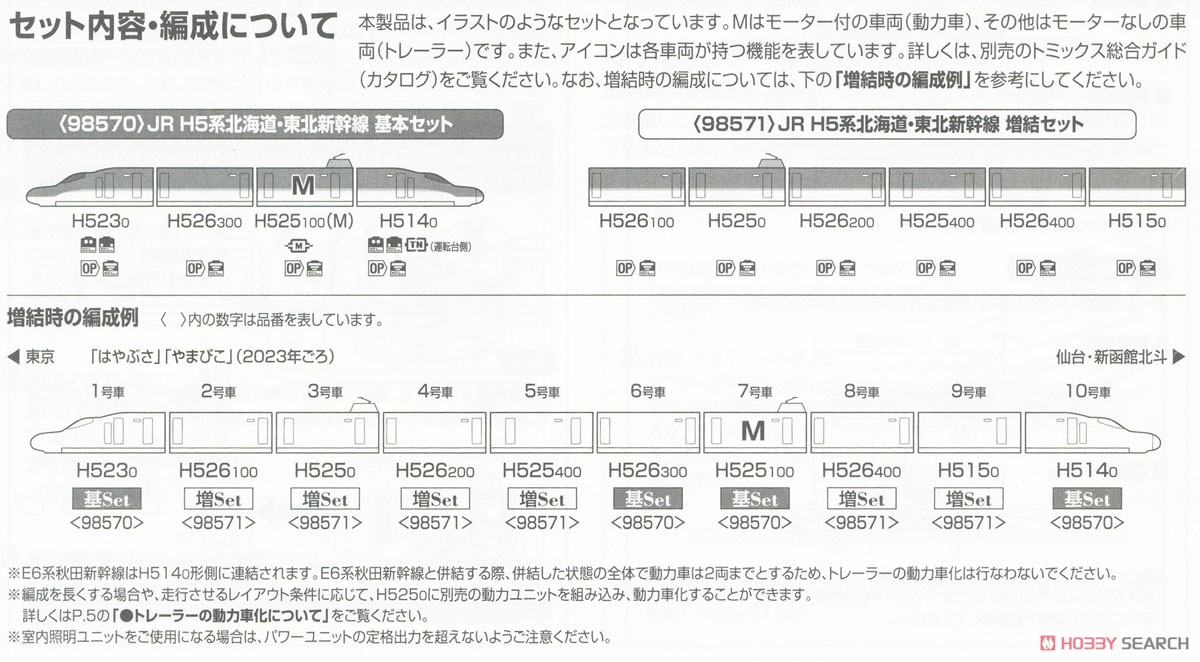

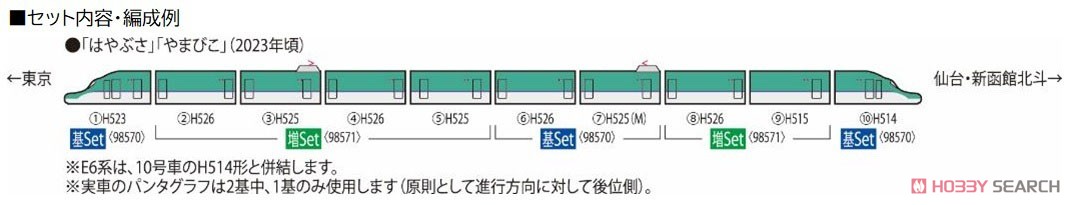

[Organization example]
- [Hayabusa] [Yamabiko] Around 2023
H523 +
H526 +
H525 +
H526 +
H525 +
H526 +
H525(M) +
H526 +
H515 +
H514[Optional items sold separately]
- Interior light: <0734> LC bulb color
- Power unit: <7861>
*<92566><92567><92568> will be discontinued.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
