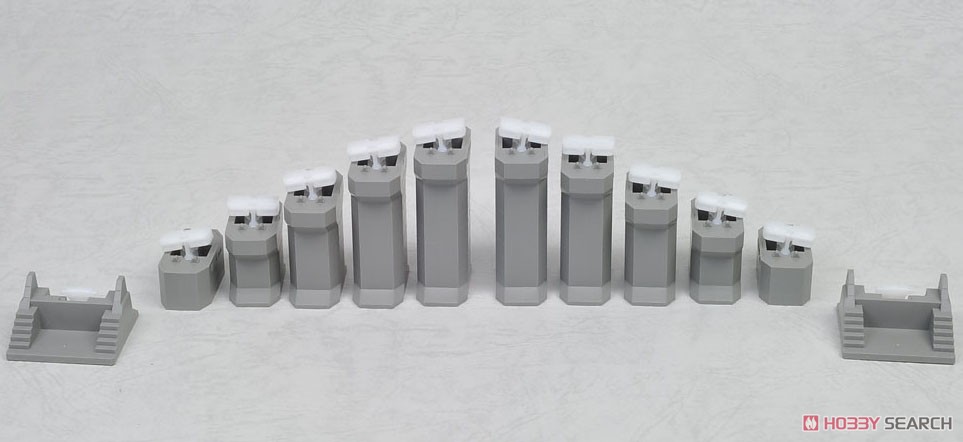

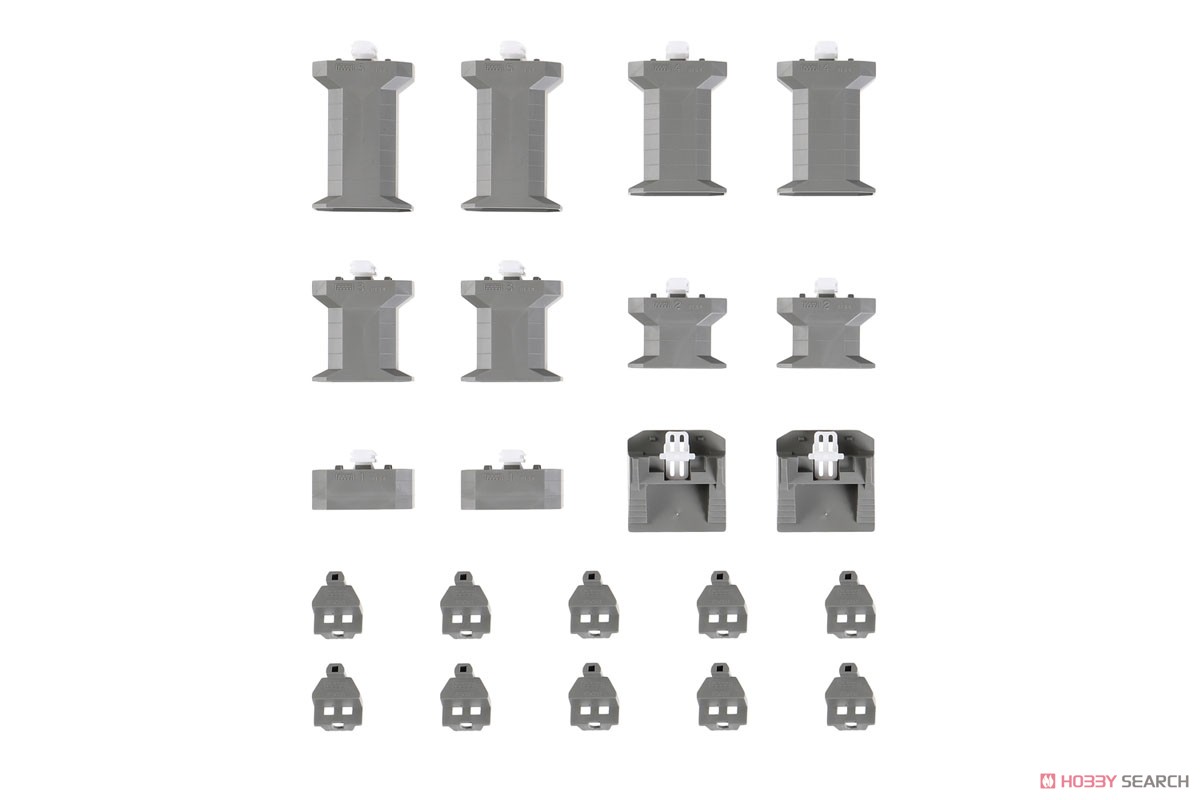

- A set of two piers No.1 to No.5 each. Comes with 2 stairs.

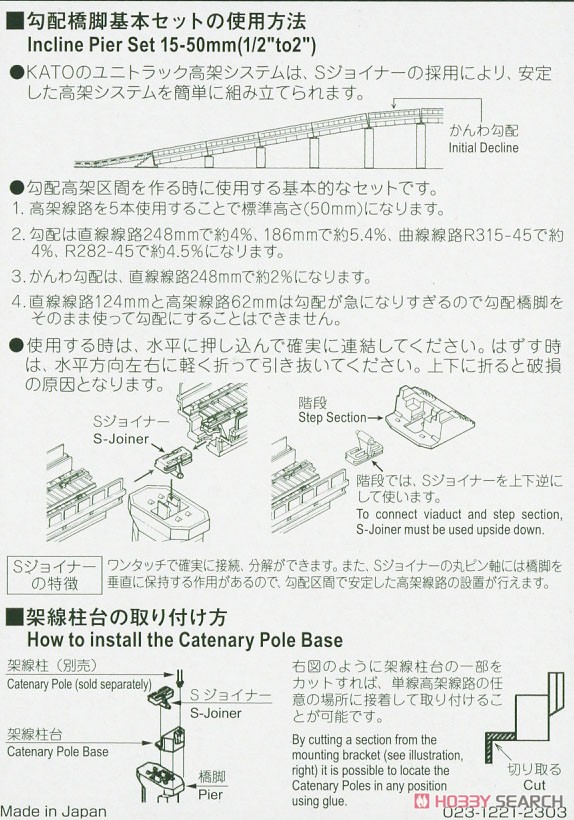

[How to use the basic set of slope piers]
- KATO's Unitrack elevated system is a stable elevated system thanks to the use of S joiners.
can be easily assembled.
- This is a basic set used when creating a slope elevated section.
1. Seven elevated tracks have a standard height (50mm).
2. The slope is approximately 4% for a straight line of 248mm, approximately 5.4% for a 186mm line, approximately 4% for a curved line R315-45, and approximately 4.5% for R282-45.
3. The slope of the track is approximately 2% for a straight track of 248 mm, both upward and downward.
4. The slope of the straight track 124mm and the elevated track 62mm is too steep, so it is not possible to use the slope piers as is.
- When using, please push it horizontally to ensure a secure connection.
- To remove it, gently fold it horizontally from side to side and pull it out.
- Folding it vertically may cause damage.
[Features of S Joiner]
- Can be reliably connected and disassembled with one touch. In addition, the S Joiner's round pin shaft has the ability to hold the piers vertically, allowing stable installation of elevated tracks on slope sections.
[Notices]
- This is a reproduction of the product number <23-015> with changed accessories.
- This time, an elevated overhead line pillar stand will be included in the product.
*<23-015> will be discontinued.
*Some images are of previous products.
