[About Rokuhan vehicle decoders]
- We prepared a compact general-purpose decoder that can be used widely, such as locomotive of Z gauge and N gauge, and an interior lamp type multi type that can be used as well as four conventional Lokhan interior lights.

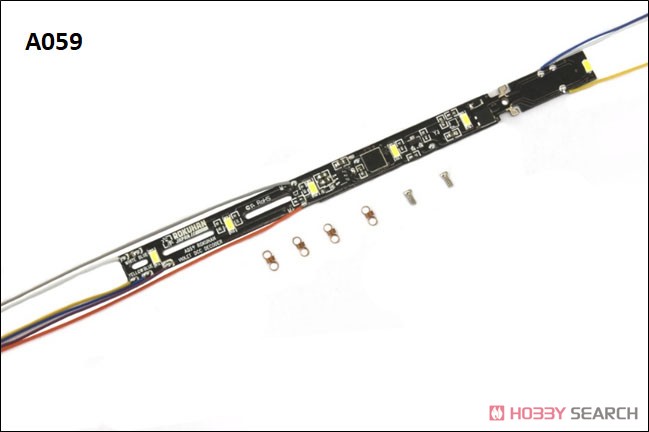

[A059 DCC decoder interior light type multi-type basic spec]
- A009 Interior light type A type · A 015 interior light type B · type A 030 interior bulb for bullet train (for leading car) · A 03 This is a decoder that can be installed like the interior light for the bullet train (for intermediate car).
(When attaching to a vehicle, processing by soldering is necessary.)
- Depending on the vehicle to be used, it is possible to change the shape to each mode (indoor lamp A, B1, B2, C, D type mode) by cutting a part of board with nippers.
- Substrate dimensions: Vertical about 116.5 × width of about 7 (mm)
- Interior light type A type Mode compatible model: 113 series, 14 series, 24 series (only Sushi) - 115 series - 415 series - 50 series - 103 series - E6 series Shinkansen intermediate car etc.
- Interior light B1 type mode compatible model: Kiha 52 etc.
- Interior light B2 type mode Corresponding vehicle type: 24 series (except for sushi) etc.
- Interior light type C type mode compatible model: 500 series Shinkansen head car etc. E6 series Shinkansen first car etc.
- Indoor light D type mode Corresponding model: 500 series Shinkansen intermediate car etc.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
