1/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train)

SAL Small Packet
Sold Out...
Sales Price : 22,050 yen
about145.42USD
List Price : 23,100yen
Points Acquired : 220pointsOther Currencies
Manufacturer:Mokei Kobo Permil (M`s Craft)
Scale:HO Scale , 16.5mm Gauge , 1/80
Material:Paper , Acrylic
Series:Unassembled Kit
Release Date : Late Feb., 2020
JAN code : 4582485421083
Item code:Hs023
1/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train)
User Area

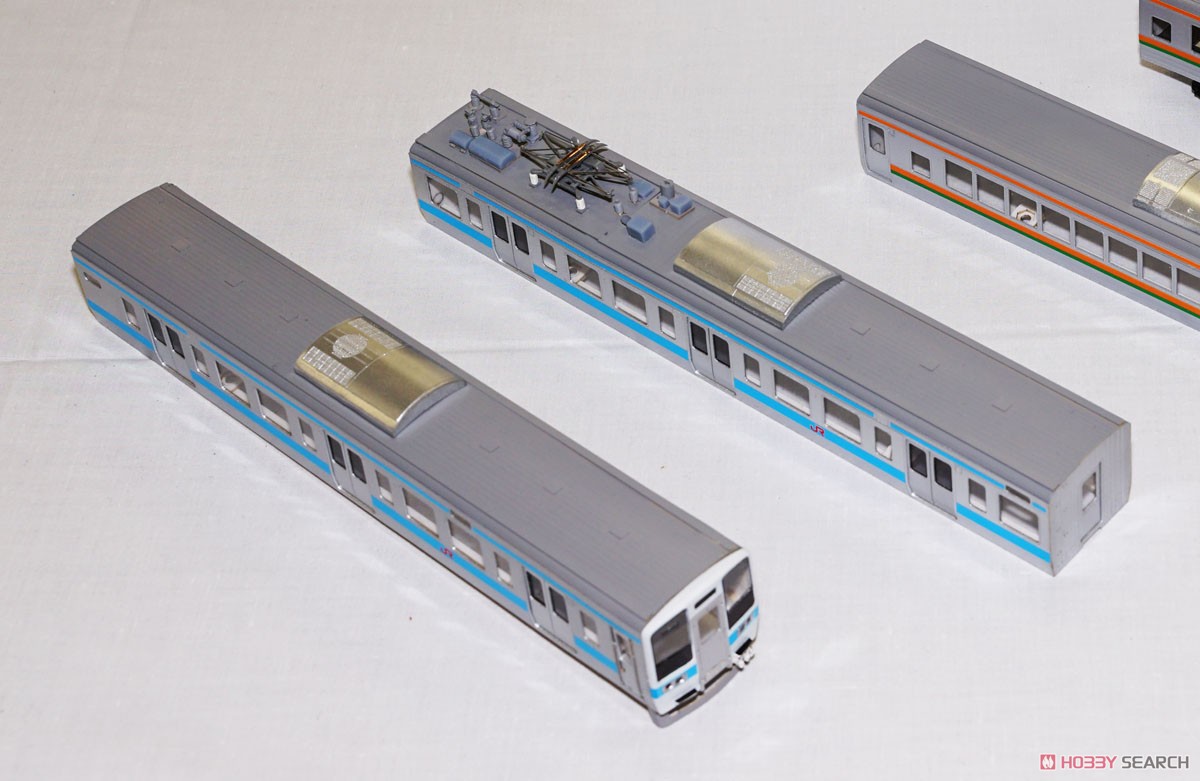

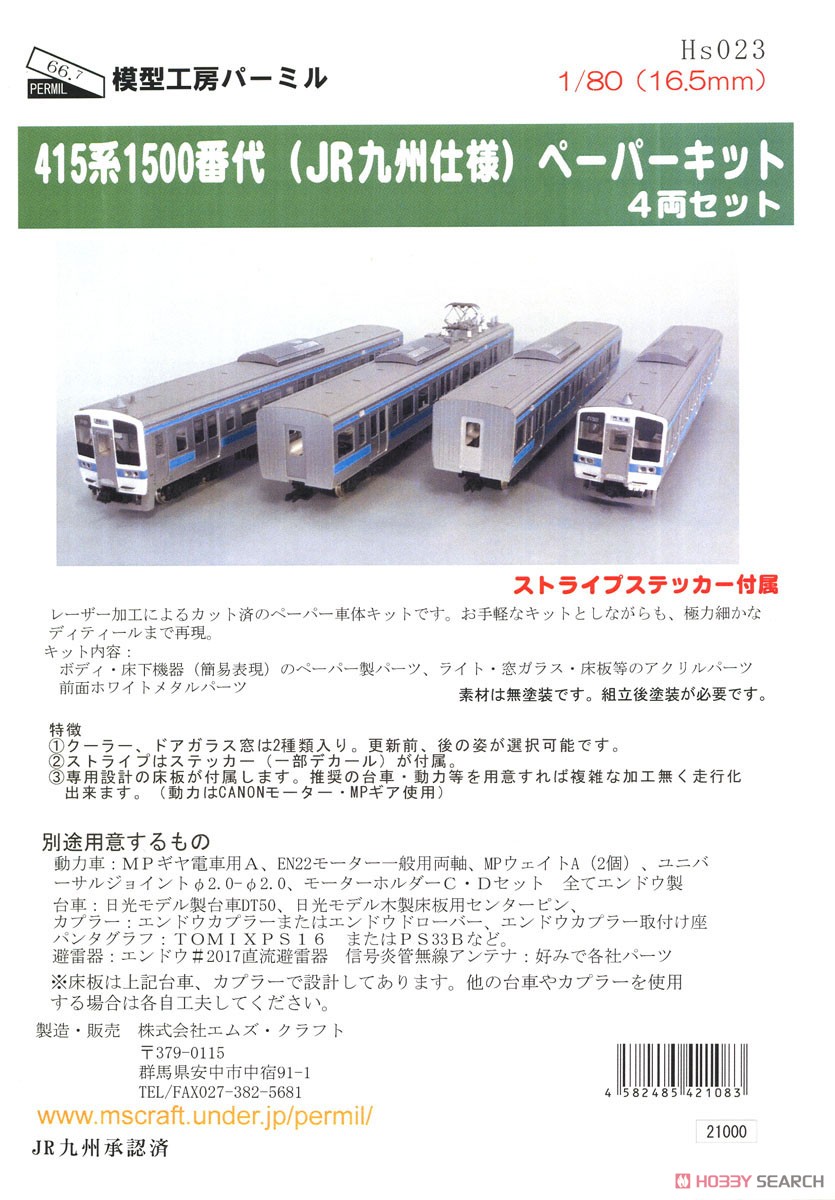

Package1/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Package1
Other picture1/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Other picture11/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Other picture2

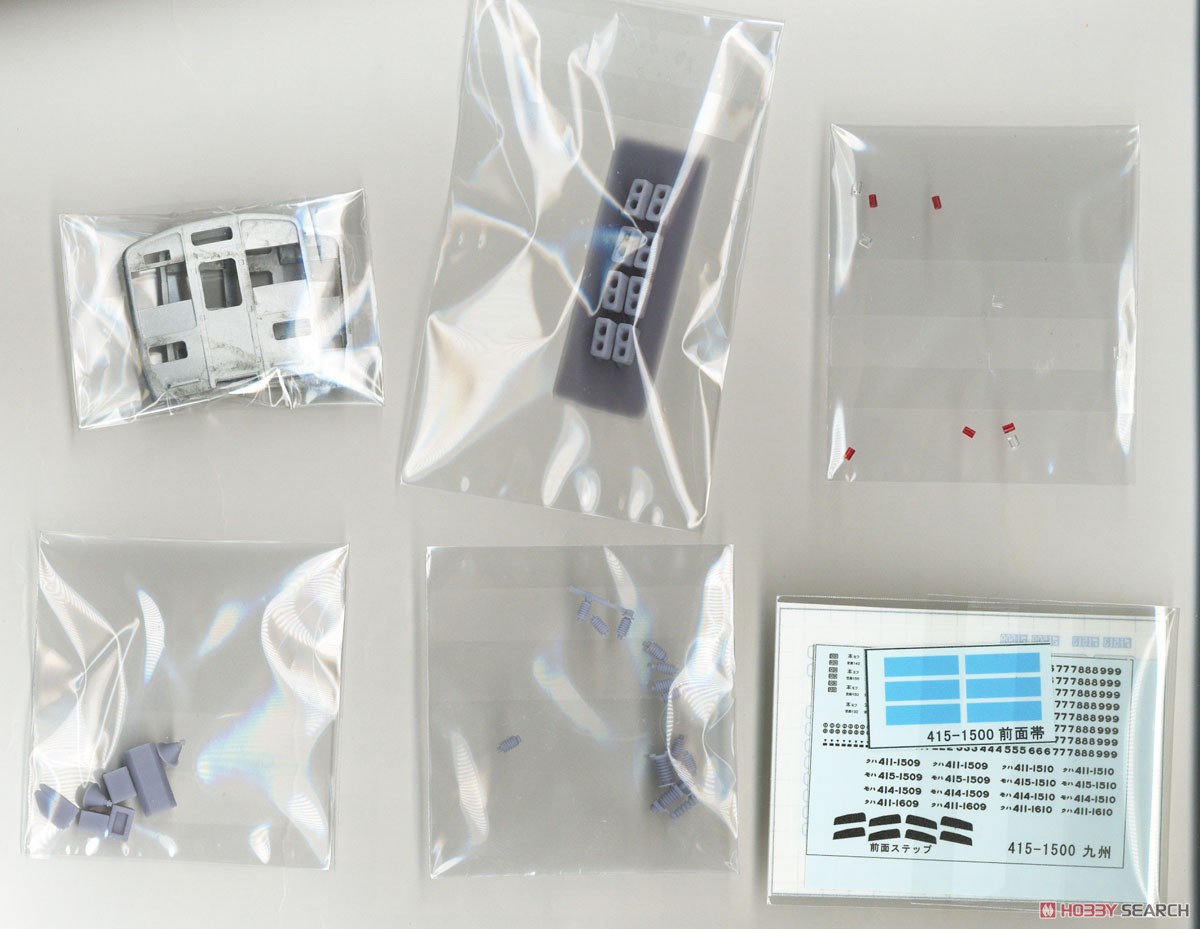

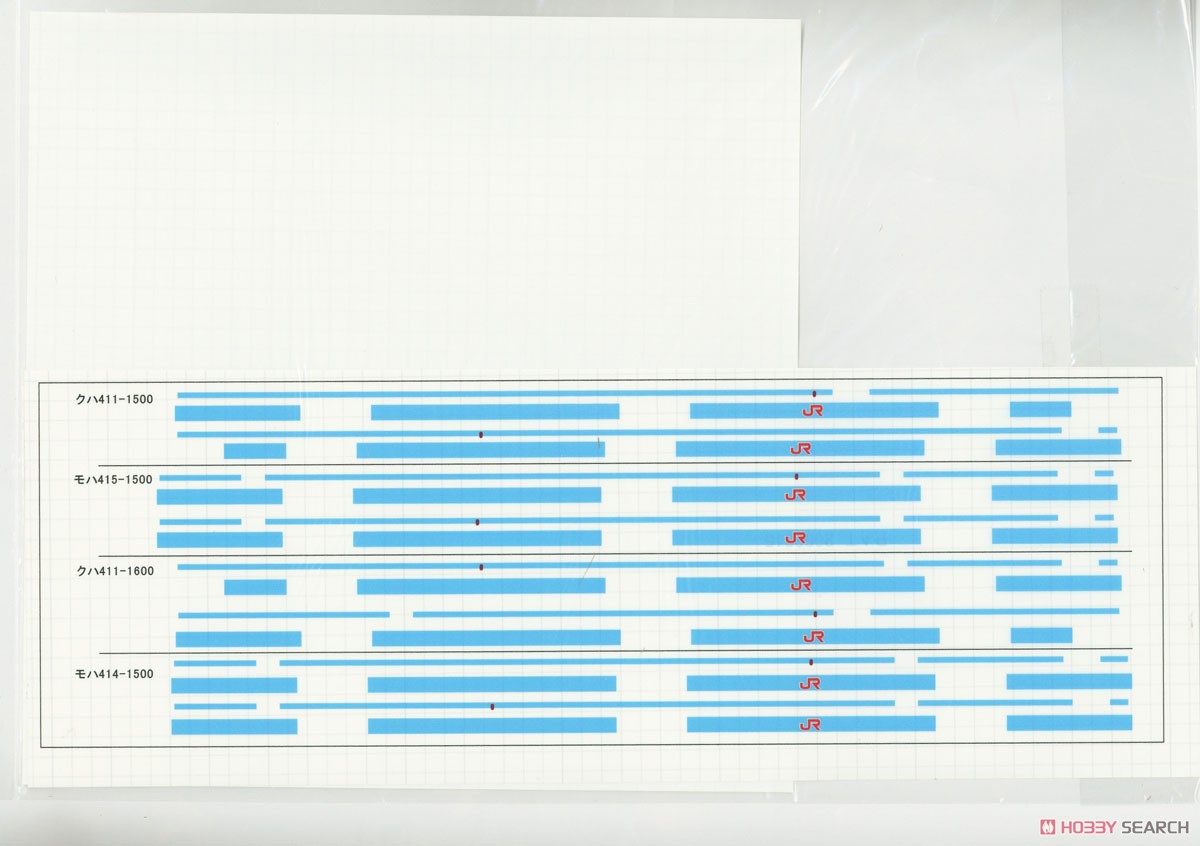

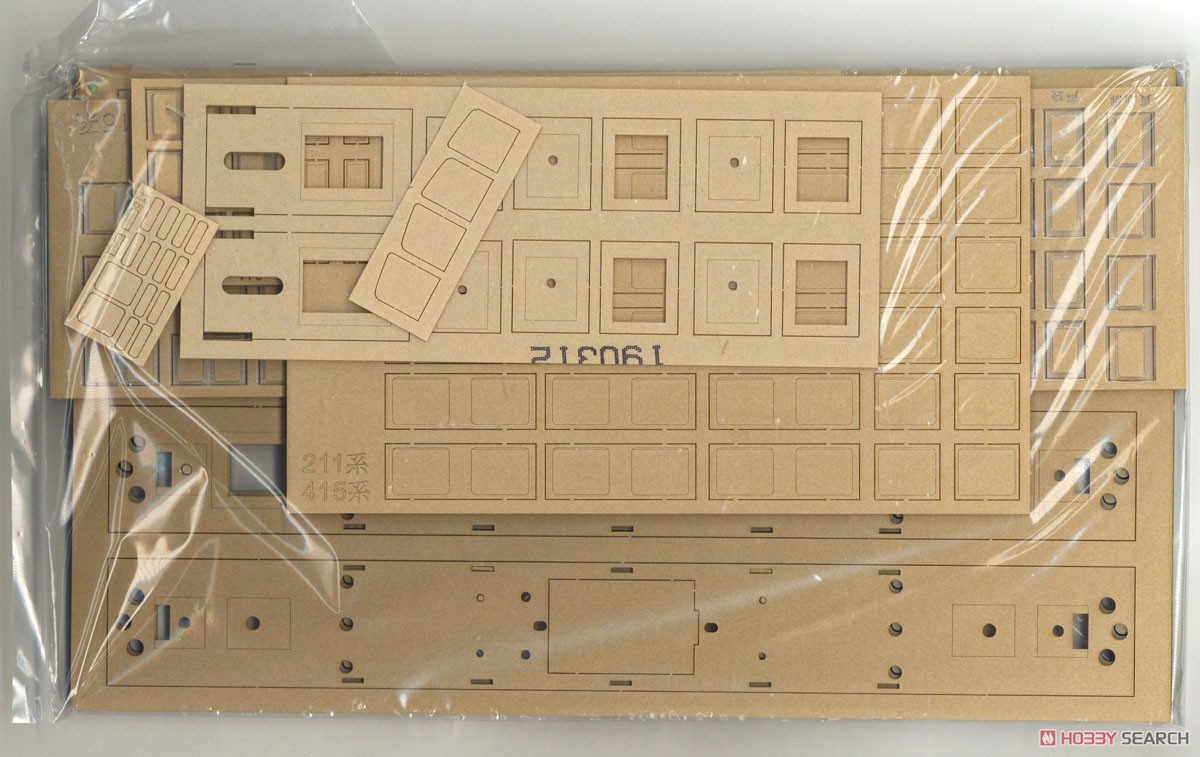

Contents1/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Contents11/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Contents21/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Contents31/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Contents4

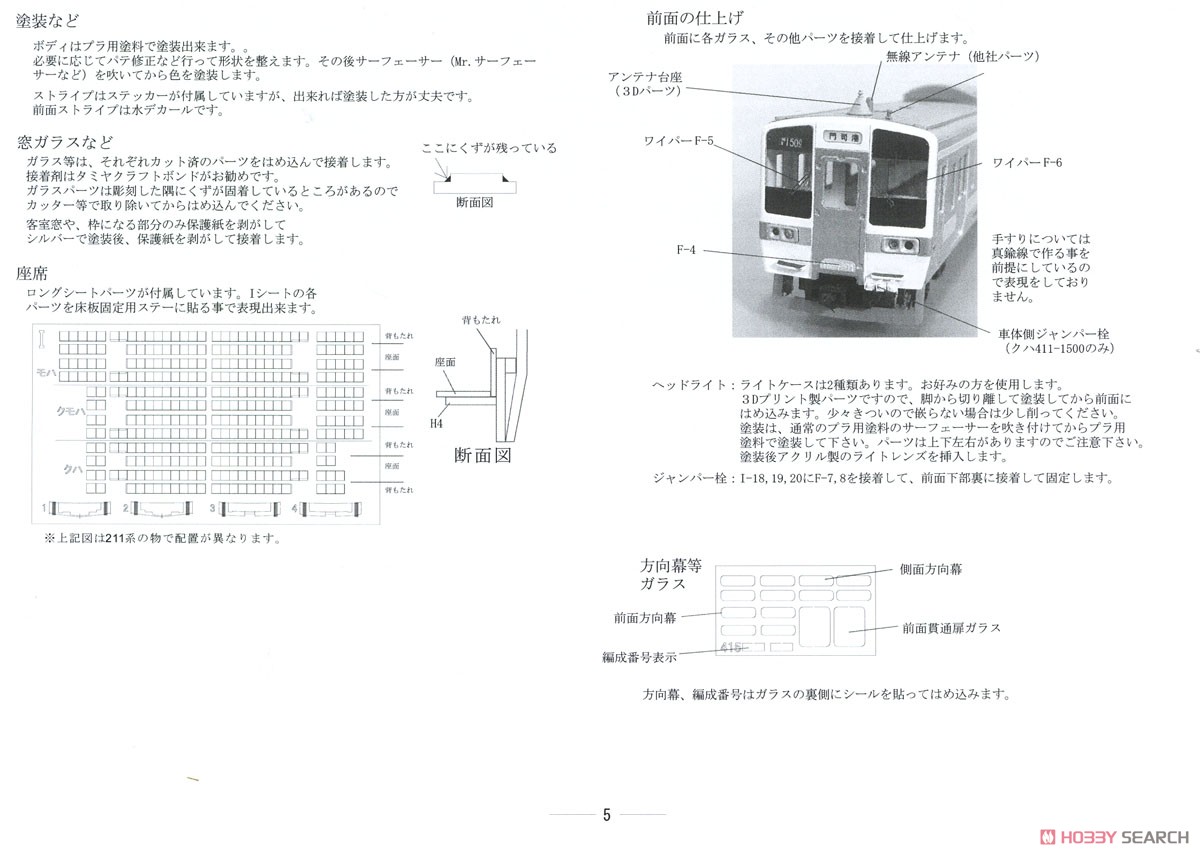

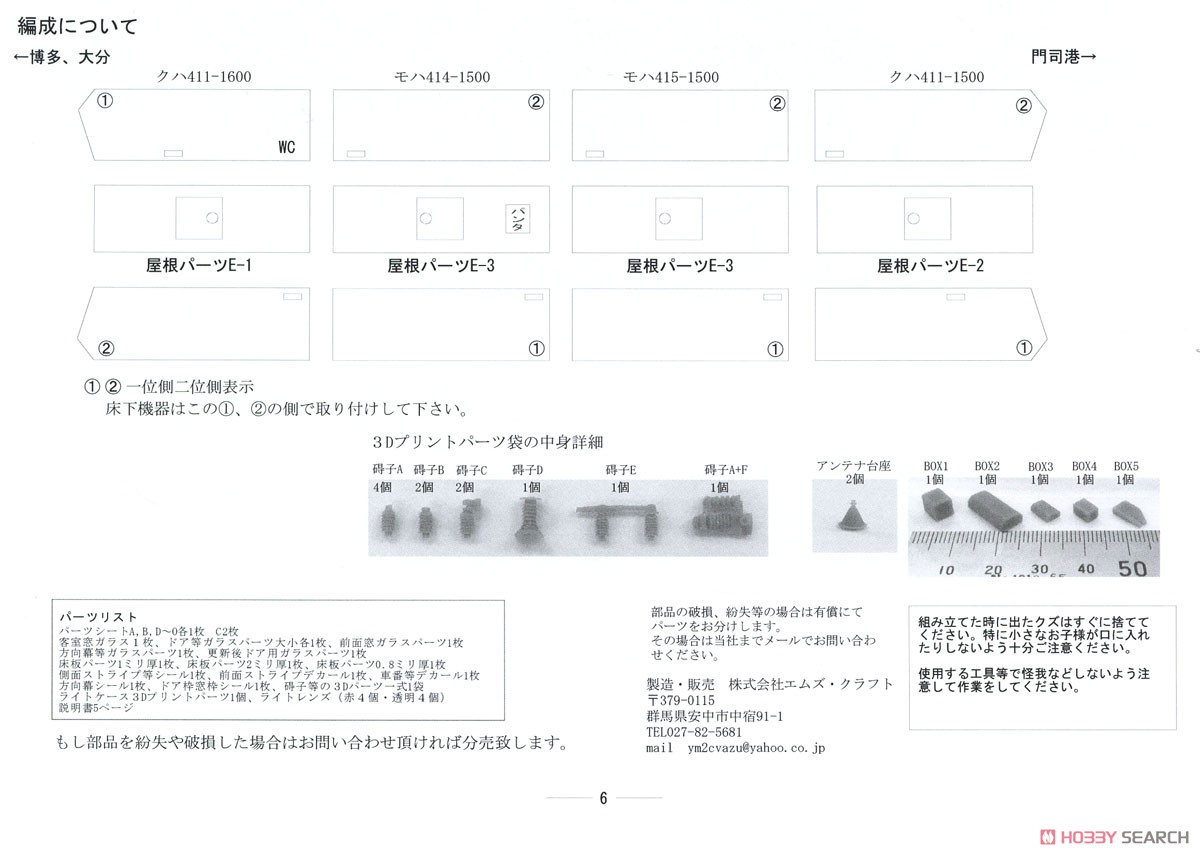

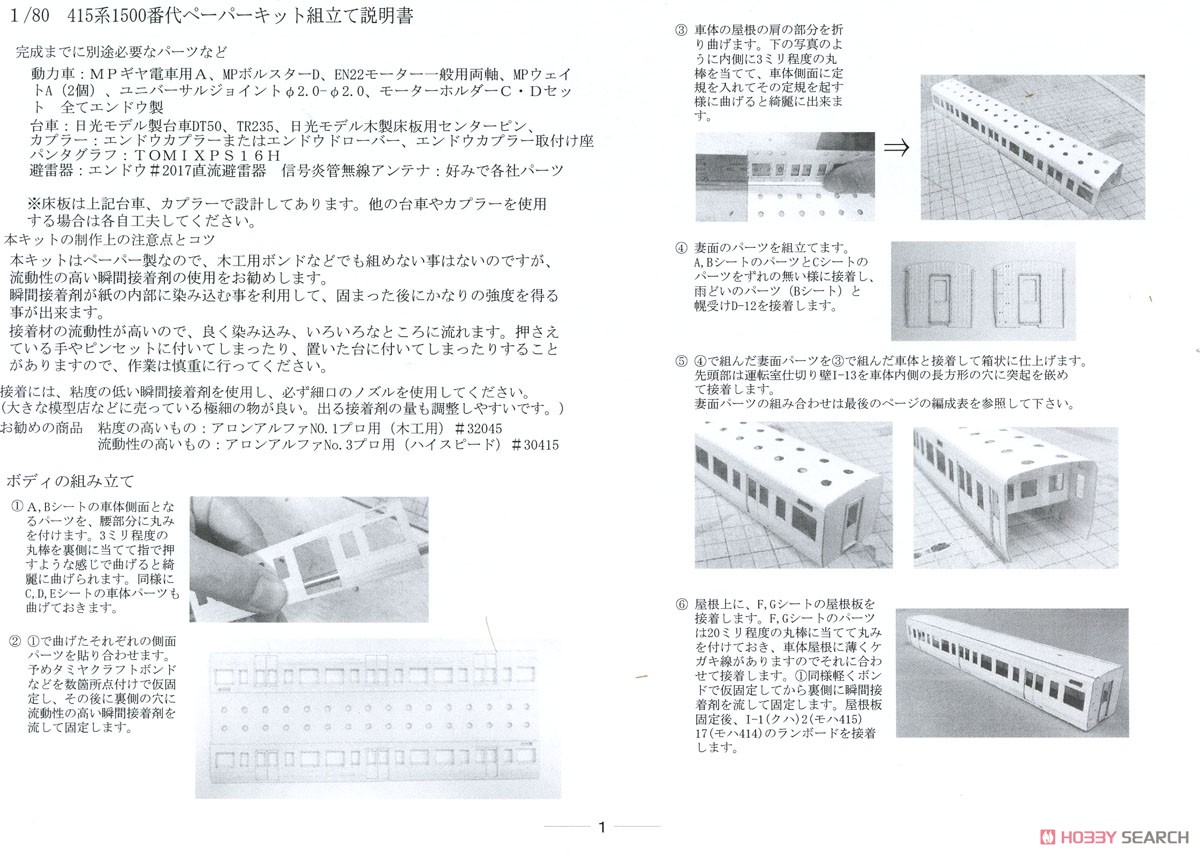

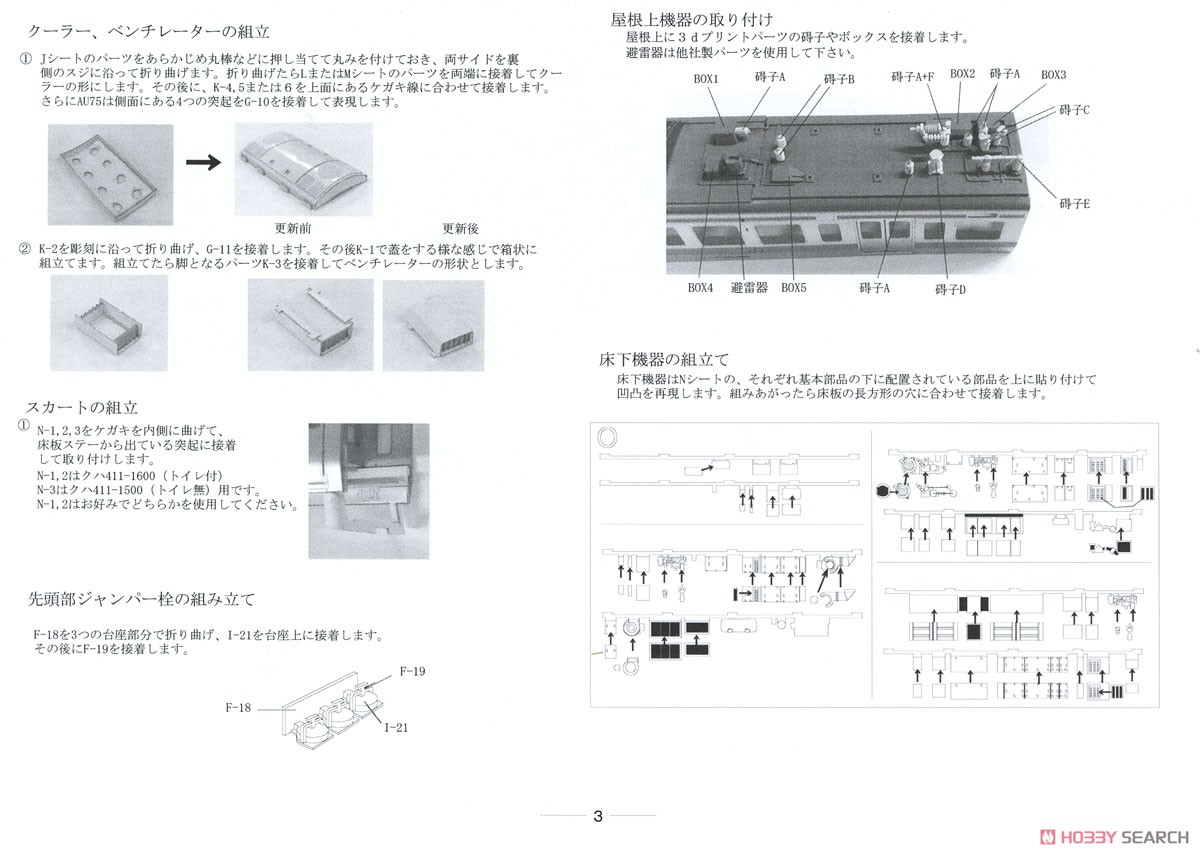

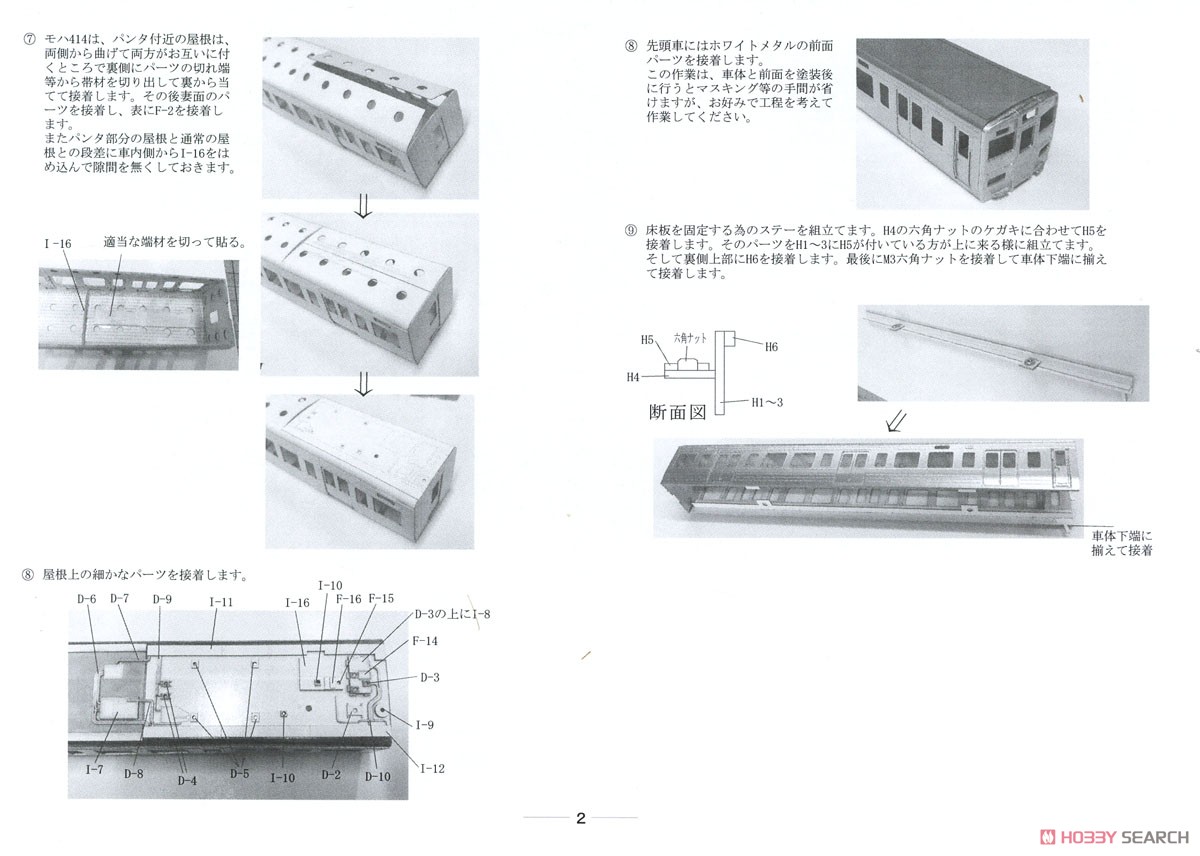

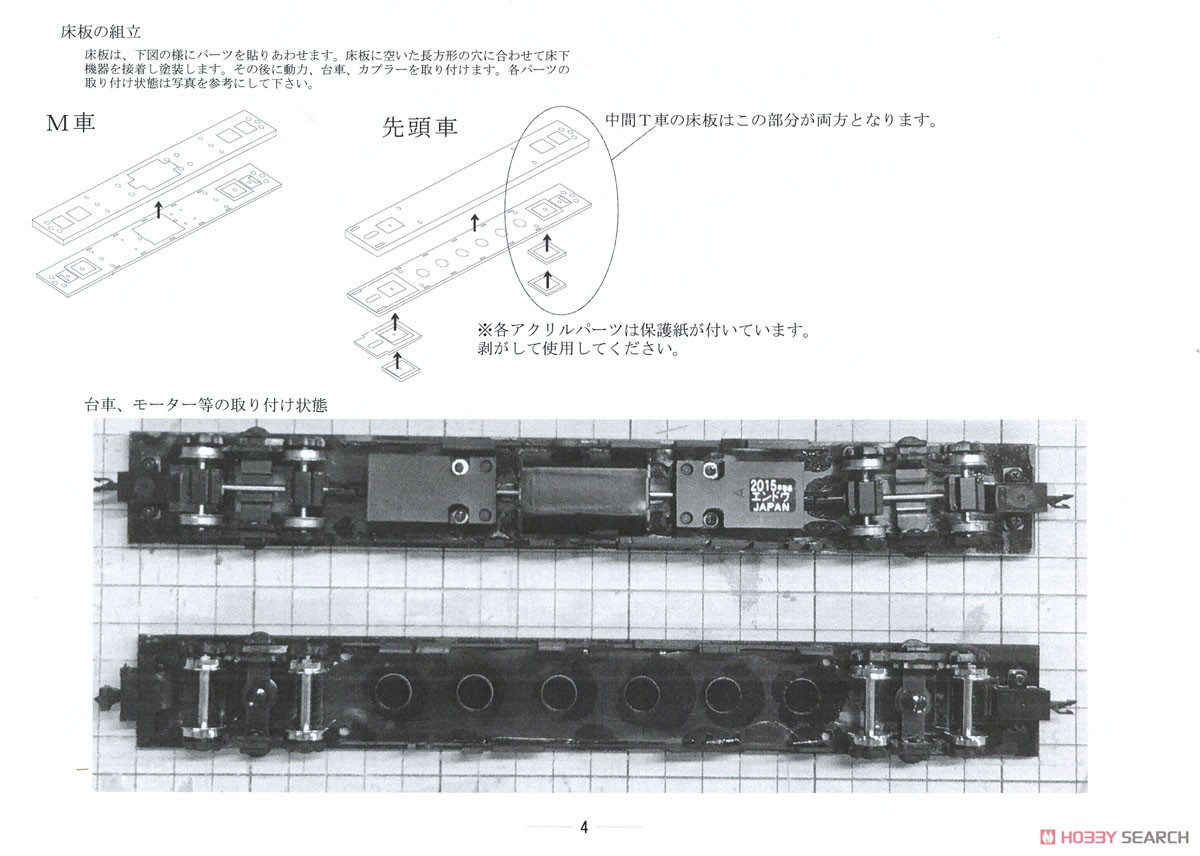

Assembly guide1/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Assembly guide11/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Assembly guide21/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Assembly guide31/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Assembly guide41/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Assembly guide51/80(HO) Series 415-1500 (J.R. Kyusyu Ver.) Paper Kit (4-Car Set) (Unassembled Kit) (Model Train) Assembly guide6
Item series :
Organization :
Region :

This item is limited to 20 per household.
Copyright Kyushu Railway Company

[ Related Products ]
- 1/80(HO) MP Giar (A for EMU) (WB26.0mm Plate dia 10.5 Wheel)
- 1/80(HO) Canon Motor EN-22 (General, Both Axes)
- 1/80(HO) Universal Joint D=2.0~2.0 (Power Transmission Parts) (2-pair)
- 1/80(HO) Universal Joint < Type 2 > D=2.0~2.0 (Power Transmission Parts) (2-pair)
- 1/80(HO) Bogie Type DT-50 (Plain) (2pcs.)
- 1/80(HO) Bogie Type DT-50 (Pivot) (2pcs.)
- 1/80(HO) Bogie TypeTR-235 (Pivot) (2pcs.)
- (1/80 13mm) Bogie Type DT-50 (Plain) (2pcs.)
- (1/80 13mm) Bogie Type DT-50 (Pivot) (2pcs.)
- (1/80 13mm) Bogie TypeTR-235 (Pivot) (2pcs.)
- 1/80(HO) Center Pin for Wooden Floor Board (Chassis) for 1-Car(2pair)
- 1/80(HO) Center Pin for Motor Car (for Wooden Floor Board (Chassis)) for 1-Car(2pair)
- 1/80(HO) Endo Tight Lock Coupler (2pcs.)
- 1/80(HO) Endo Tight Lock Coupler Base (10pcs.)
- [ 0204 ] Pantograph PS16H (2 Pieces)

-Stripe sticker included

-Laser cut paper body kit. Reproduce the finest details as much as possible with a handy kit.
-Kit contents: Paper parts for body and underfloor equipment (simple expression), acrylic parts such as lights, window glass, floorboards, front white metal parts
* The material is unpainted. Painting is required after assembly.

[Product Guide]
-The main part of the product is made of laser-processed paper, the front is made of white metal, and the floorboard is made of acrylic.
-Since the floorboards are also set, the recommended cart and power can be purchased separately to make it relatively easy.
-It needs to be painted after assembly to make it an unpainted kit.

[Product Features]
-The front light case is different depending on the manufacturing year.
-The stripe comes with a sticker (some decals).
-Comes with a specially designed floorboard. If you prepare the recommended bogies and power, you can run without complicated processing. (Power is using CANON motor and MP gear)
-It is possible to make different types such as the presence or absence of a ventilator, updating the glass of the cabin door, and updating the cooler.
-3D-printed parts are included for the insulators on the roof.

[Characteristic]
(1) Two types of coolers and door glass windows are included. Before and after the update can be selected.
(2) The stripe comes with a sticker (some decals).
(3) A specially designed floorboard is included. If you prepare the recommended bogies and power, you can run without complicated processing. (Power is using CANON motor and MP gear)

[Material]
-Body: paper
-Front: White metal
-Glass etc .: Acrylic

-In addition to this kit, you need a cart, power unit, pantograph, etc.

[Required separately]
-Motor vehicle: MP gear train A, EN22 motor general double shaft, MP weight A (2 pieces), universal joint φ2.0-φ2.0, motor holder CD set (all are made of pea)
-Bogie: Nikko model trolley DT50, Nikko model wooden floor panel center pin
-Coupler: Pea coupler or pea drawbar, pea coupler mounting seat
-Pantograph: TOMIX PS16 or PS33B etc.
-Lightning arrester: Pea # 2017 DC lightning arrester
-Flame tube and wireless antenna: Parts of each company as you like
* The floorboard is designed with the above cart and coupler. If you use other trolleys or couplers, please make your own.

[Assembly]
-Since this kit is made of paper, it is not impossible to assemble it even with a wood bond, but we recommend using an instant adhesive with high fluidity.
-By taking advantage of the penetration of the instant adhesive into the inside of the paper, it is possible to obtain considerable strength after setting.
-The high fluidity of the adhesive allows it to penetrate well and flow to various places. Be careful with your hands or tweezers, or on the table where you put them.

-Use an adhesive with high viscosity and use a narrow nozzle for bonding.
(A very fine item sold at a large model store is good. It is easy to adjust the amount of adhesive that comes out.)
-Other high viscosity materials are good.
-Recommended:
-High viscosity: Aron Alpha No.1 professional (for woodworking) # 32045
・ Highly liquid: Aron Alpha No.3 Pro (High Speed) # 30415

-Manufacturing and sales: Model studio per mill (M's Craft Co., Ltd.)
-JR Kyushu approved

( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 33 x 24 x 3 cm / 604g
