Product Description

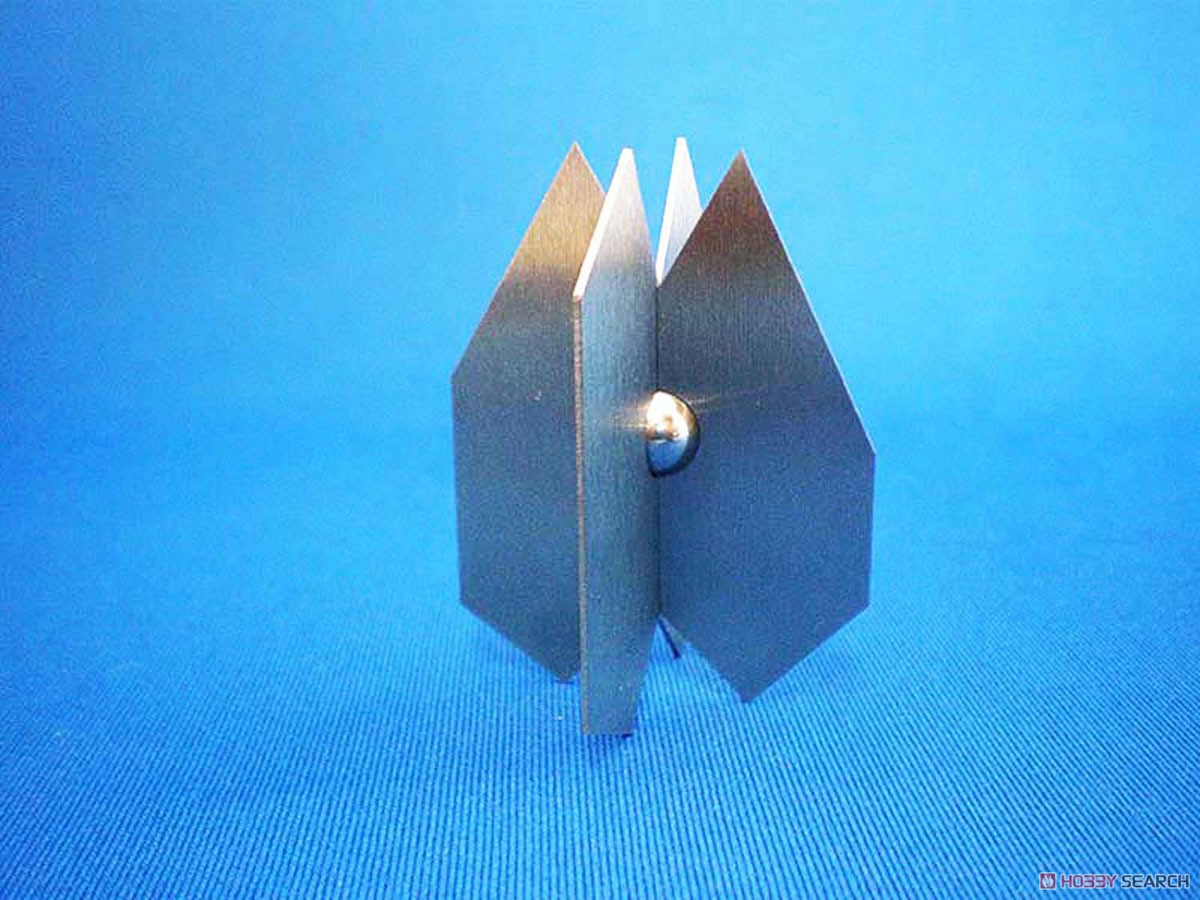

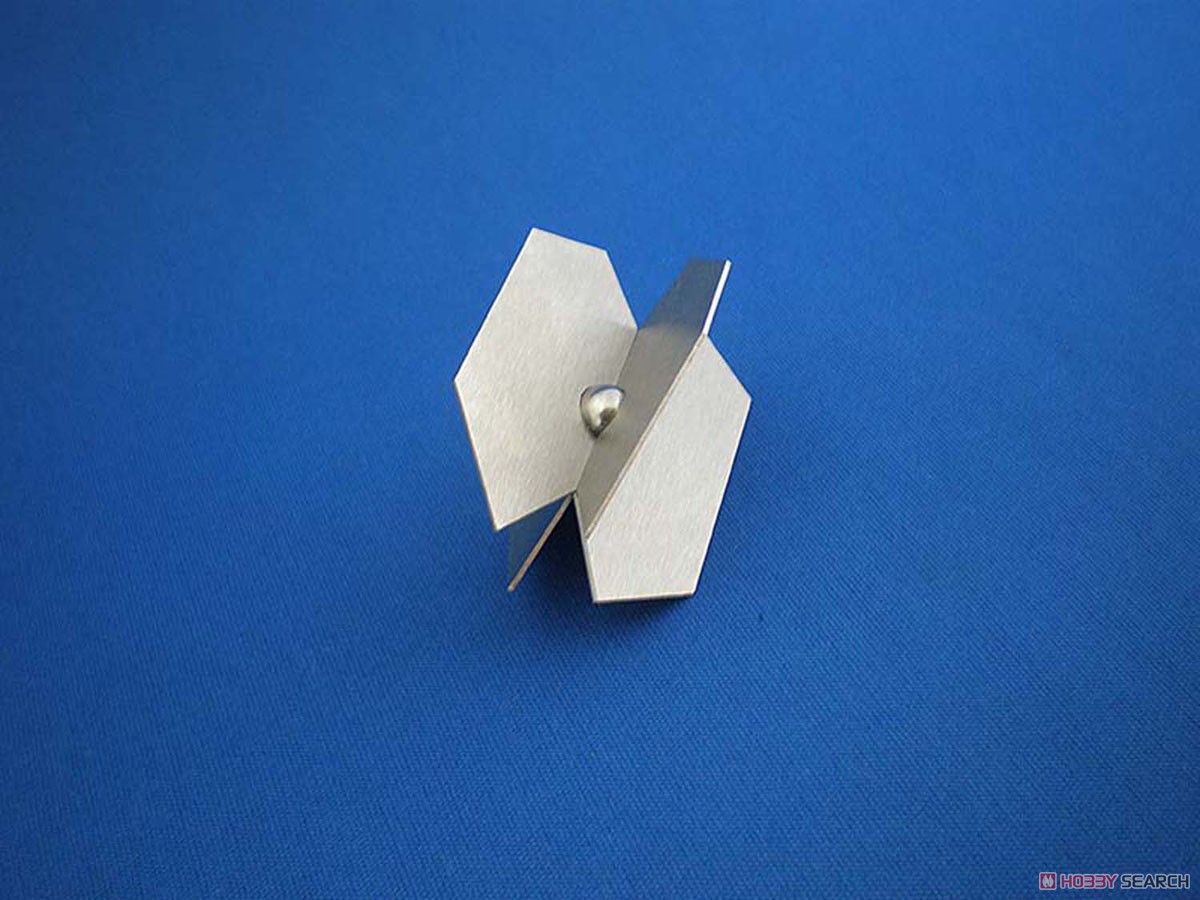

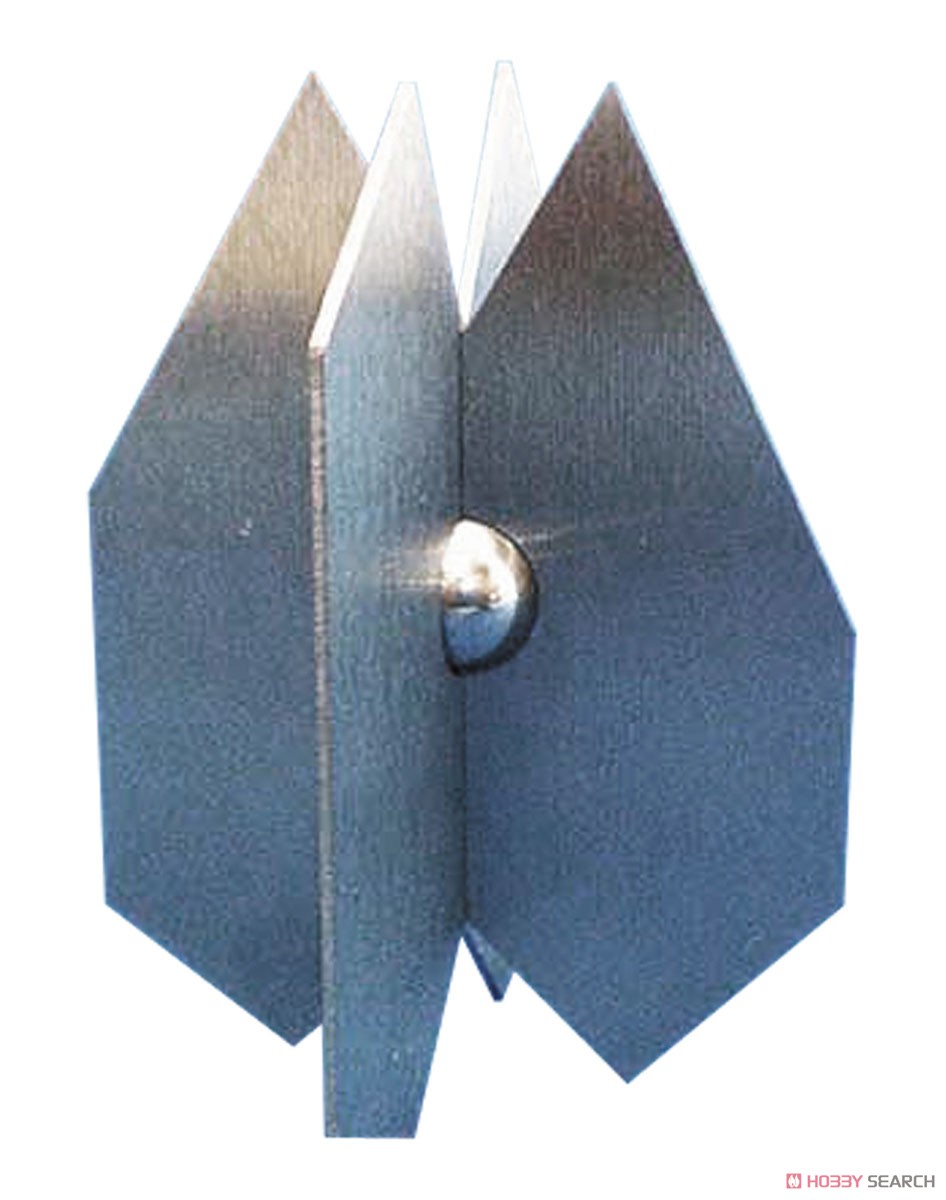

- The saw craftsman uses 0.6mm thick steel and hand-sharpens a fine blade of 10 microns on both sides of the entire circumference, and with several different vertices and upper and lower opening angles, it is possible to cut and chamfer the inner and outer edges of cylindrical objects of various sizes.
- The cutting capacity has been increased to improve cutting efficiency.
- The saw craftsman uses 0.6mm thick steel and hand-sharpens a fine blade of 10 microns on both sides of the entire circumference. With several different vertices and upper and lower opening angles, it is possible to cut and chamfer the inner and outer edges of cylindrical objects of various sizes.
- In order to improve cutting efficiency, only the four sides of the blade are angled at 8°, improving cutting ability.
- Thick cylindrical edges and openings that are a concern in scale models can be cut smoothly, uniformly, and cleanly to a thickness that matches the scale.
- Deburring is also possible.
- It is possible to process cylindrical objects with several types of vertices.

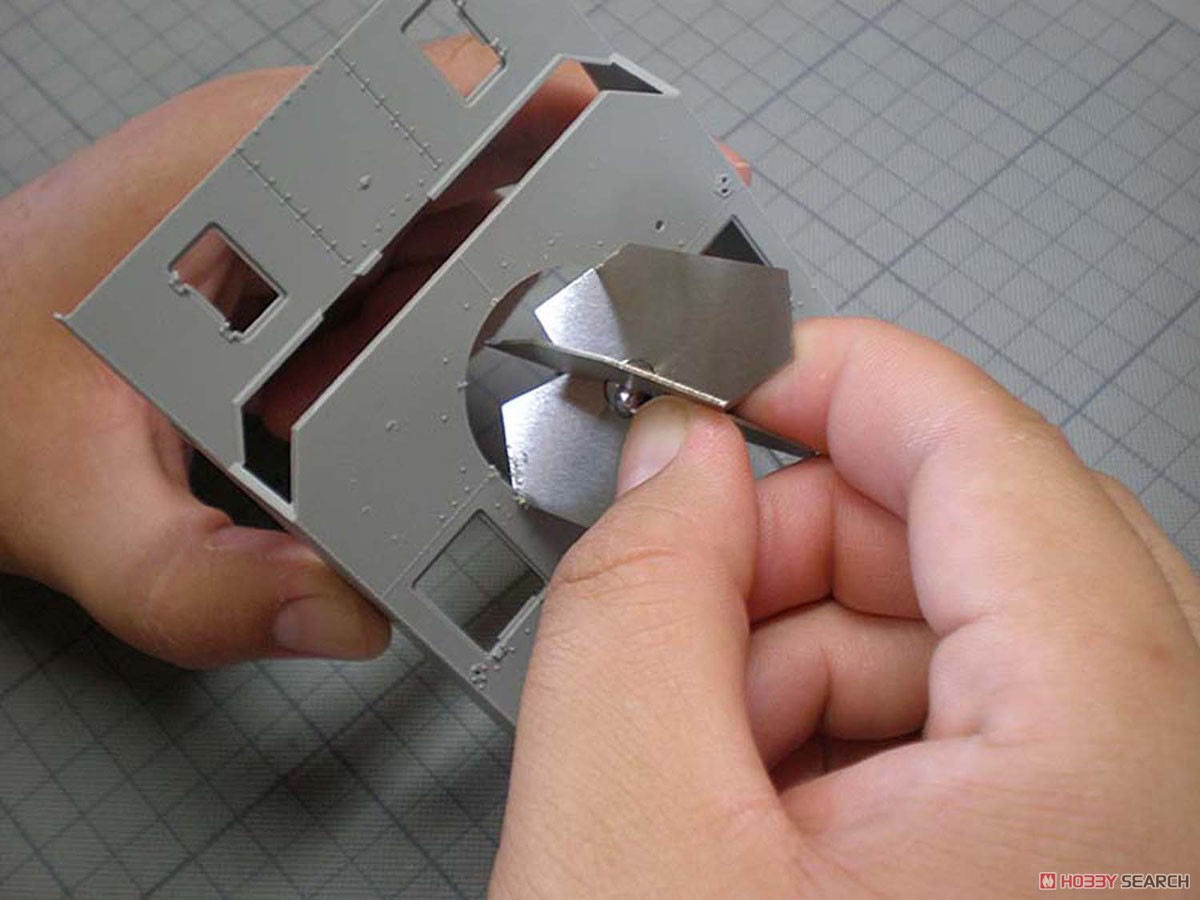

- For fine chamfering of extremely wide circular openings.
- For cutting areas where the thickness of the outer edge is a concern.

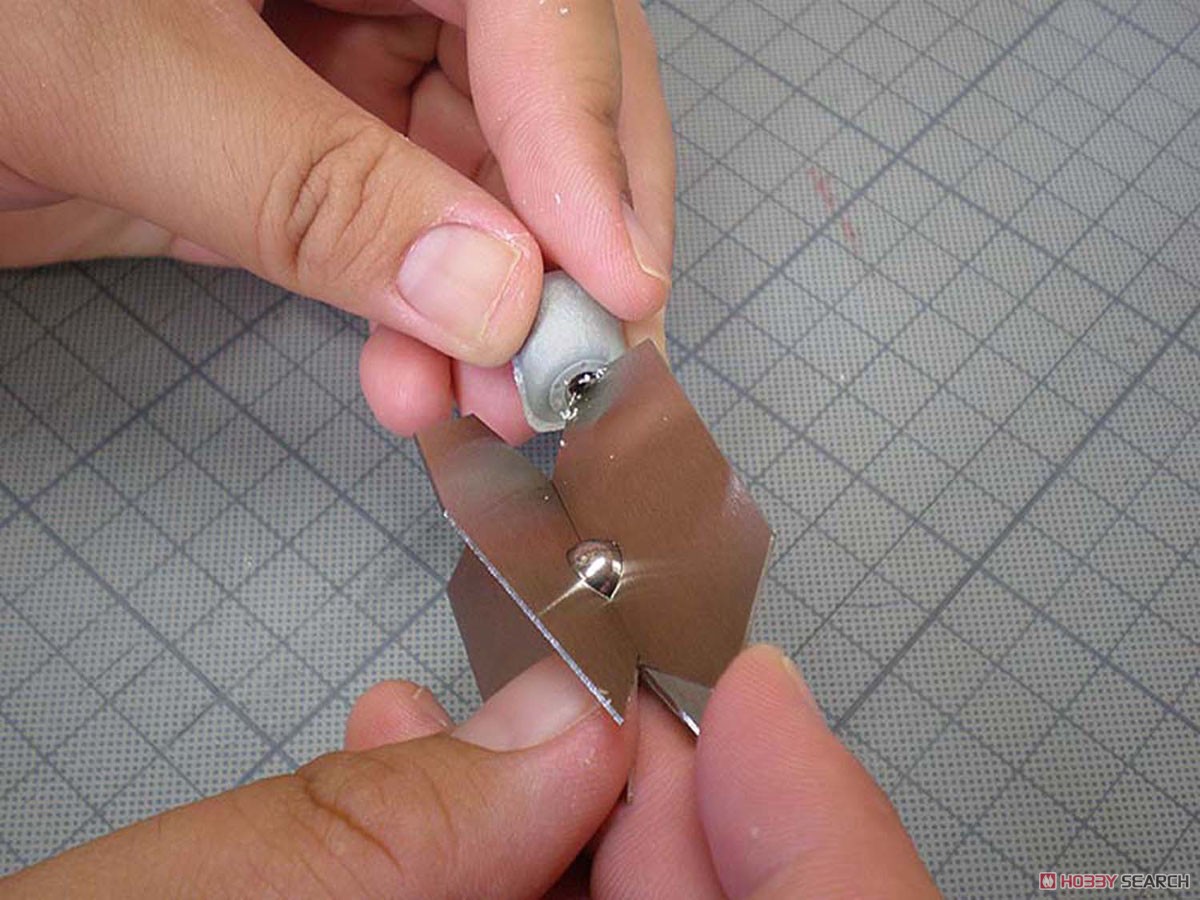

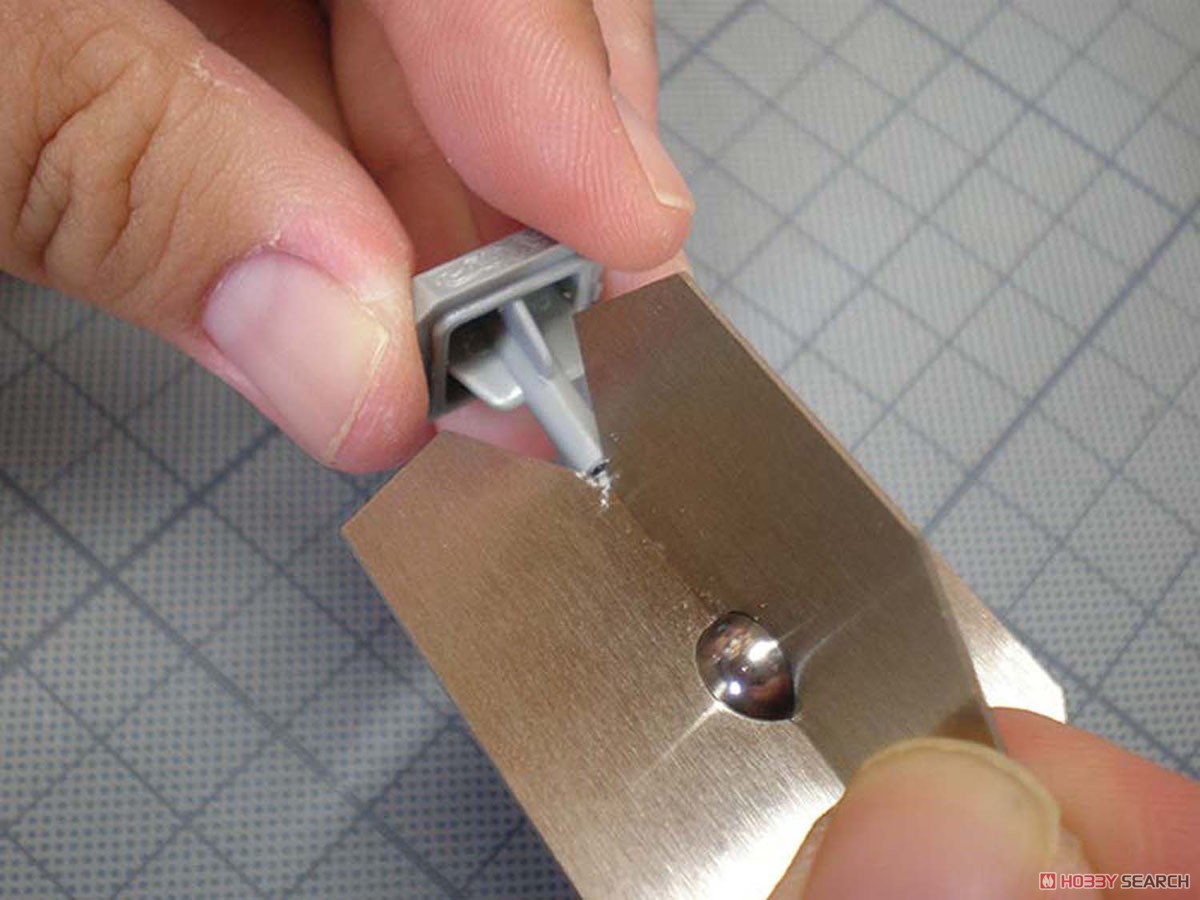

- For removing fine burrs on outer edges.

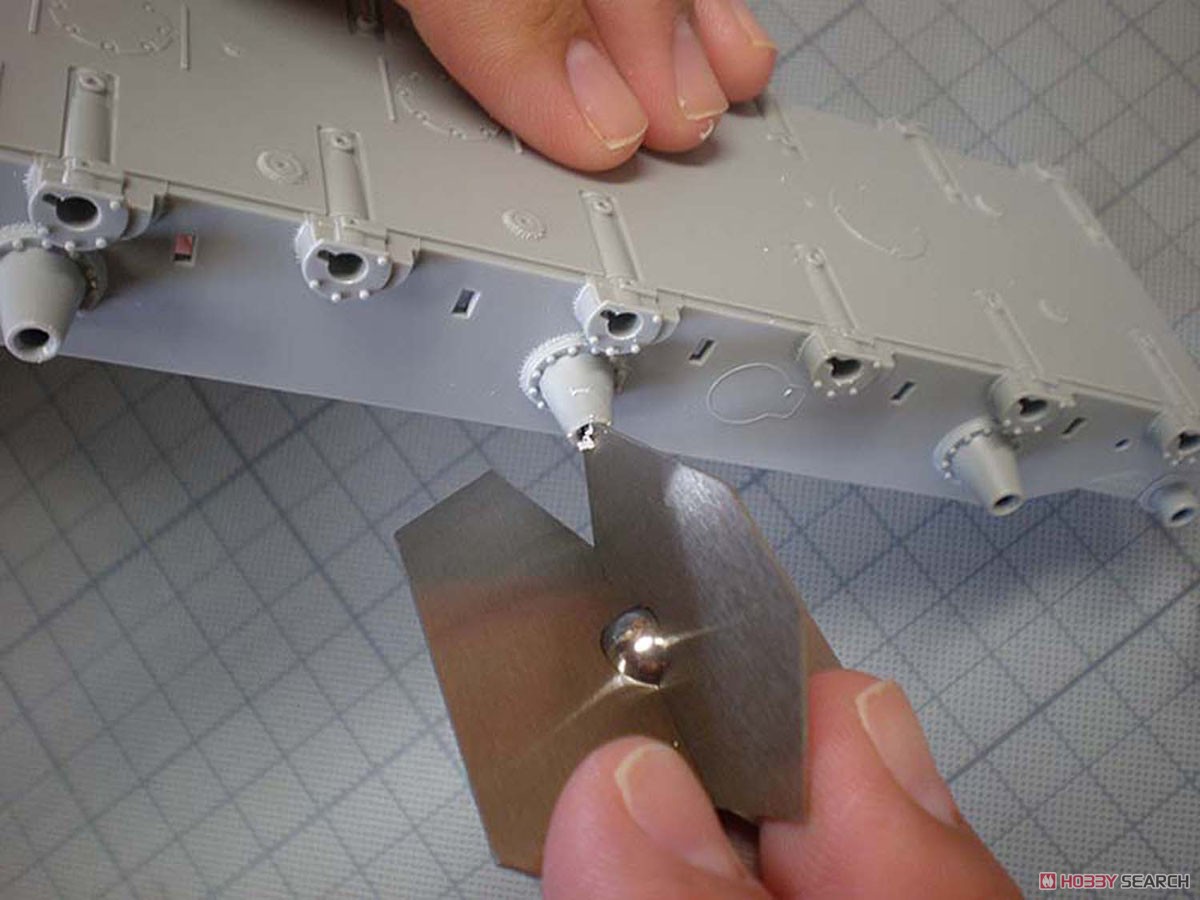

- It is possible to cut the outer edge of the cylinder up to Φ16.

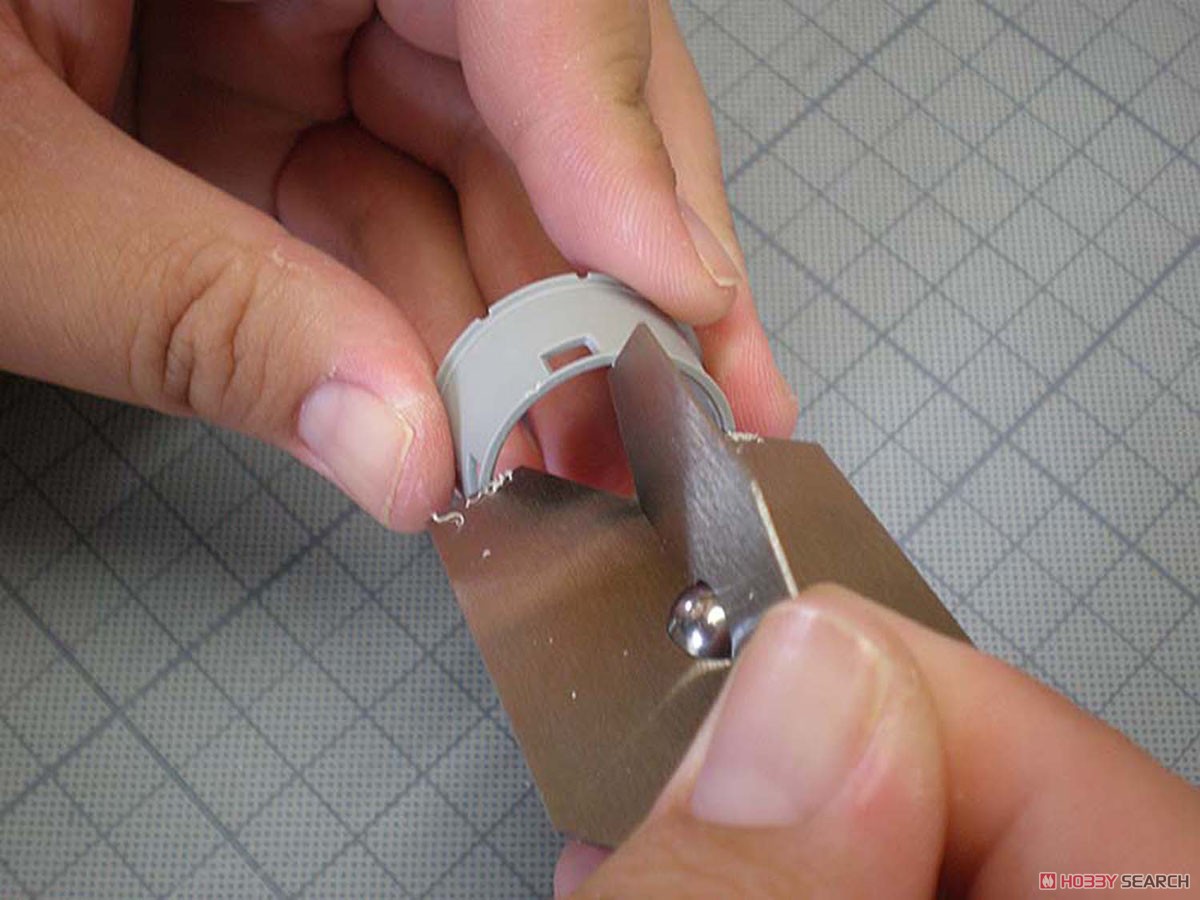

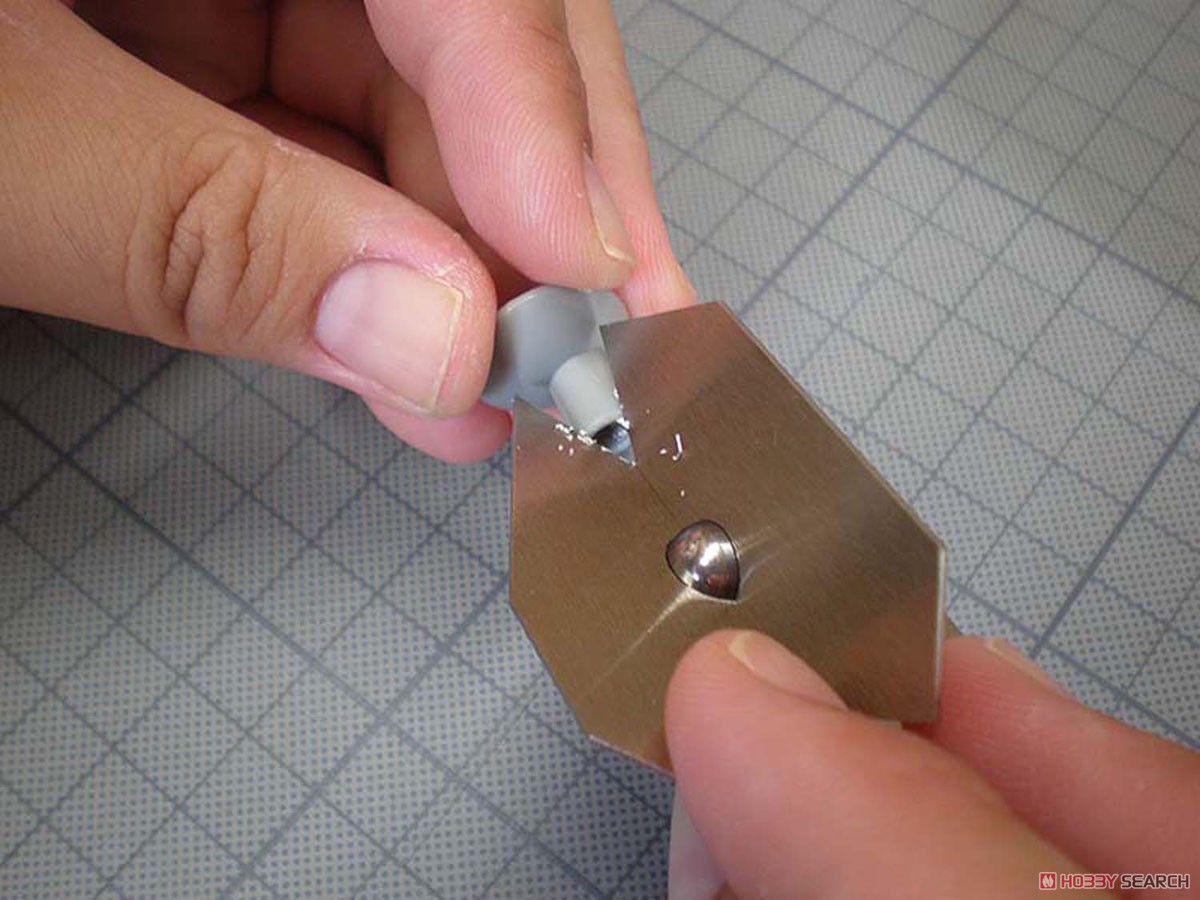

- For cutting minute circular openings of a few tenths of a millimeter.
- For cutting circular sockets to within a few tenths of a millimeter.
[specification]
- Material: High carbon special blade steel
- Body thickness: Approx. 0.58mm
- Size: W38×D38×H50
- Surface treatment: 3.0 micron nickel plating
- Fully double-sided blade: Handcrafted by skilled craftsmen
- Blade sharpening: 0.01mm on both sides
- Application: Cutting resin
- Before use, make sure to check that the two blades are aligned at right angles and not misaligned.
[Note]
- After work is completed, wipe off any cutting waste and store away.
- Do not disassemble the product, as this will make it difficult to assemble.

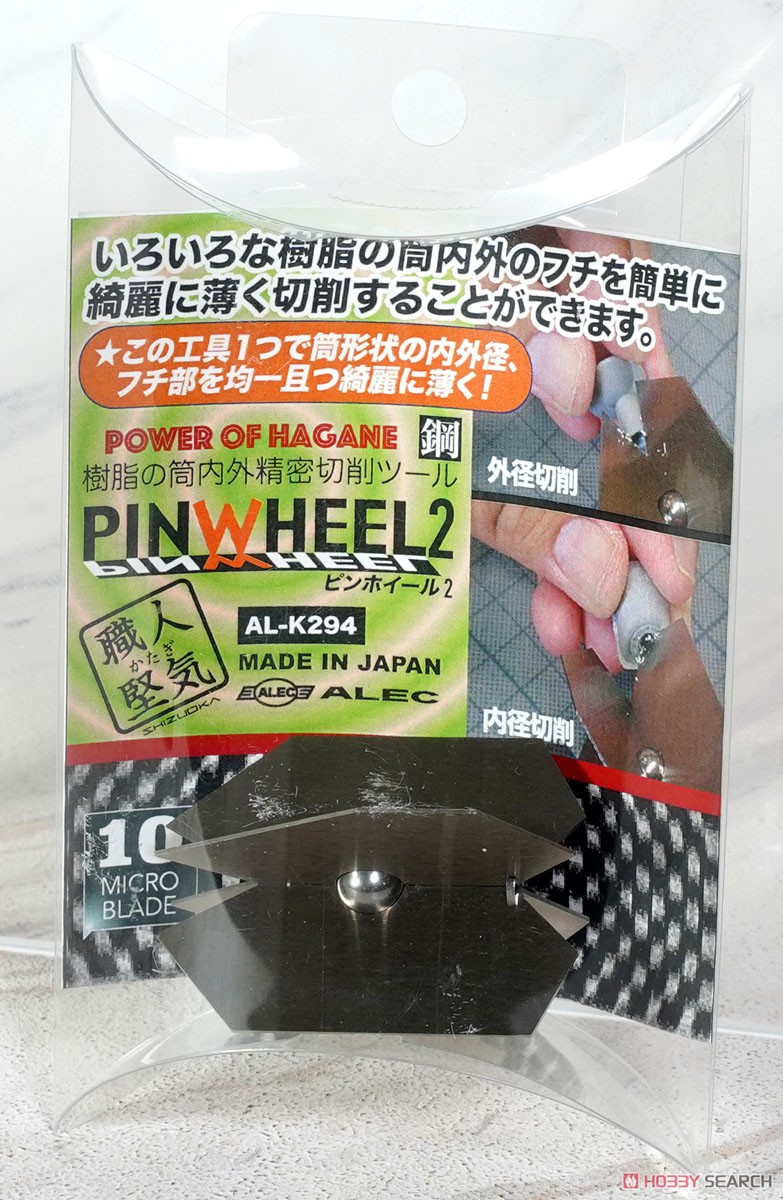

*In conjunction with the release of the SHOKUHON KATAGI resin precision cutting tool for inside and outside cylinders, PINWHEEL 2 (AL-K294), the SHOKUHON KATAGI resin precision cutting tool for inside and outside cylinders, PINWHEEL (AL-K62), will be discontinued.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 13 x 8.5 x 3.5 cm / 24g
