Product Description

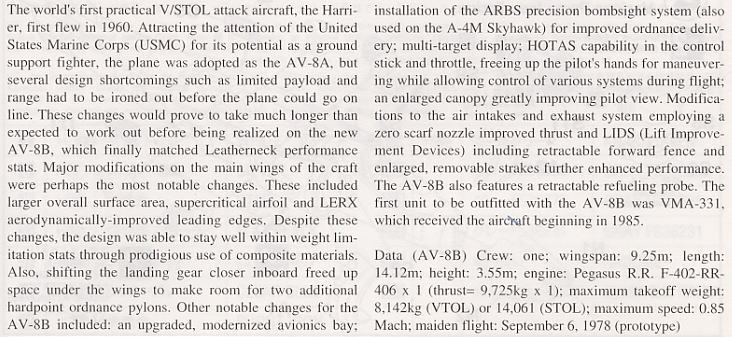

--The Harrier, which appeared in the early 1960s as the world's first practical V / STOL attack aircraft, attracted the attention of the United States Marine Corps as a landing support fighter and was adopted under the name of AV-8A.
――However, the operational problems due to the lack of payload and cruising range have not been solved easily, and the advanced version of AV-8A has been sought after for a long time.
――The AV-8B that appeared under such circumstances was significantly improved in order to meet the tactical demands of the US Marine Corps.
――The main wing has been enlarged, the cross section has become a supercritical airfoil, and LERX (extension of the front edge) has been provided at the base of the main wing for aerodynamic improvement.
――In addition, due to the heavy use of composite materials, the weight was kept to a minimum, and the auxiliary wheels under the wing moved from the tip of the wing to the center of the main wing, increasing two hard points under the wing.
――On the other hand, the avionics have also been significantly modernized, and the nose is equipped with the ARBS (angular velocity bombing system) that was put into practical use with the A-4M Skyhawk, and the accuracy of dropping weapons has improved dramatically, making it even more versatile. In addition to adopting the display and HOTAS method (which allows you to operate various systems without taking your hands off the control stick and throttle), the canopy has been enlarged to provide a wider view and improved maneuverability.
--In addition, the air intake has been improved and a zero scarf nozzle has been adopted for the front exhaust nozzle to improve thrust efficiency. During VTOL, a new retractable front fence and a larger conventional removable strake have been added. With these lift improvement devices (LIDS… Lift Improvement Devices), the ground reflection jet lift can be used effectively.
--In addition, the aerial oil receiving device is equipped with a retractable oil receiving probe.
--The first combat force deployment was made to VMA-331 in 1985.

[Data] AV-8B HARRIER II
--Crew: 1 person
--Overall width: 9.25m
--Overall length: 14.12m
--Overall height: 3.56m
--Engine: Pegasus RR F-402-RR-408 x 1 (thrust 10,795 kg x 1)
--Maximum takeoff weight: 14,515kg (at STOL)
--Maximum speed: 1,080km / h
--First flight: September 6, 1978 (prototype)


Item Size/Weight : 30 x 14 x 5 cm / 243g

Product Specifications

Item series

Hasegawa-D

Country

USA

Item code

01449

JAN code

4967834014497
