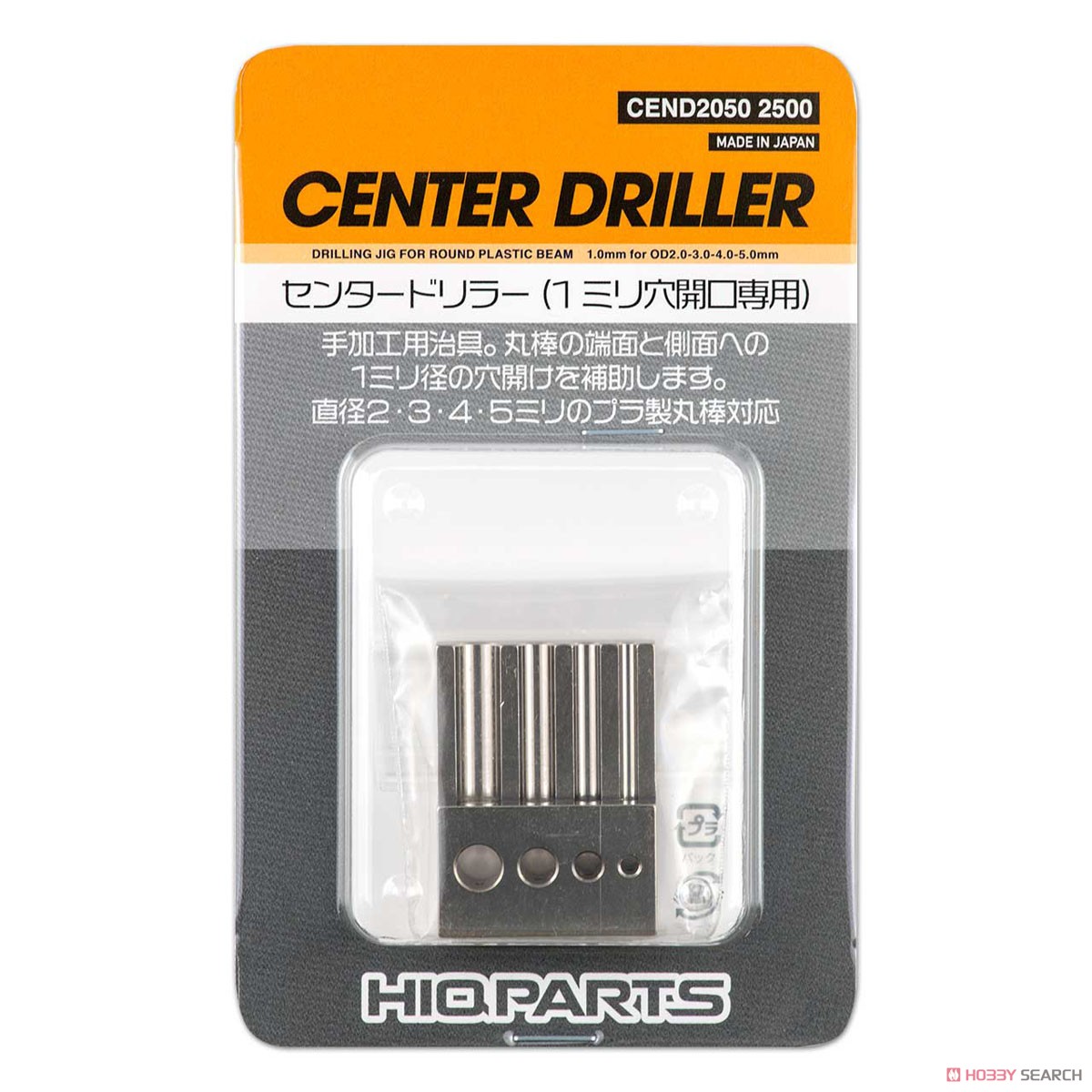

Product Description

-Jig for hand processing.

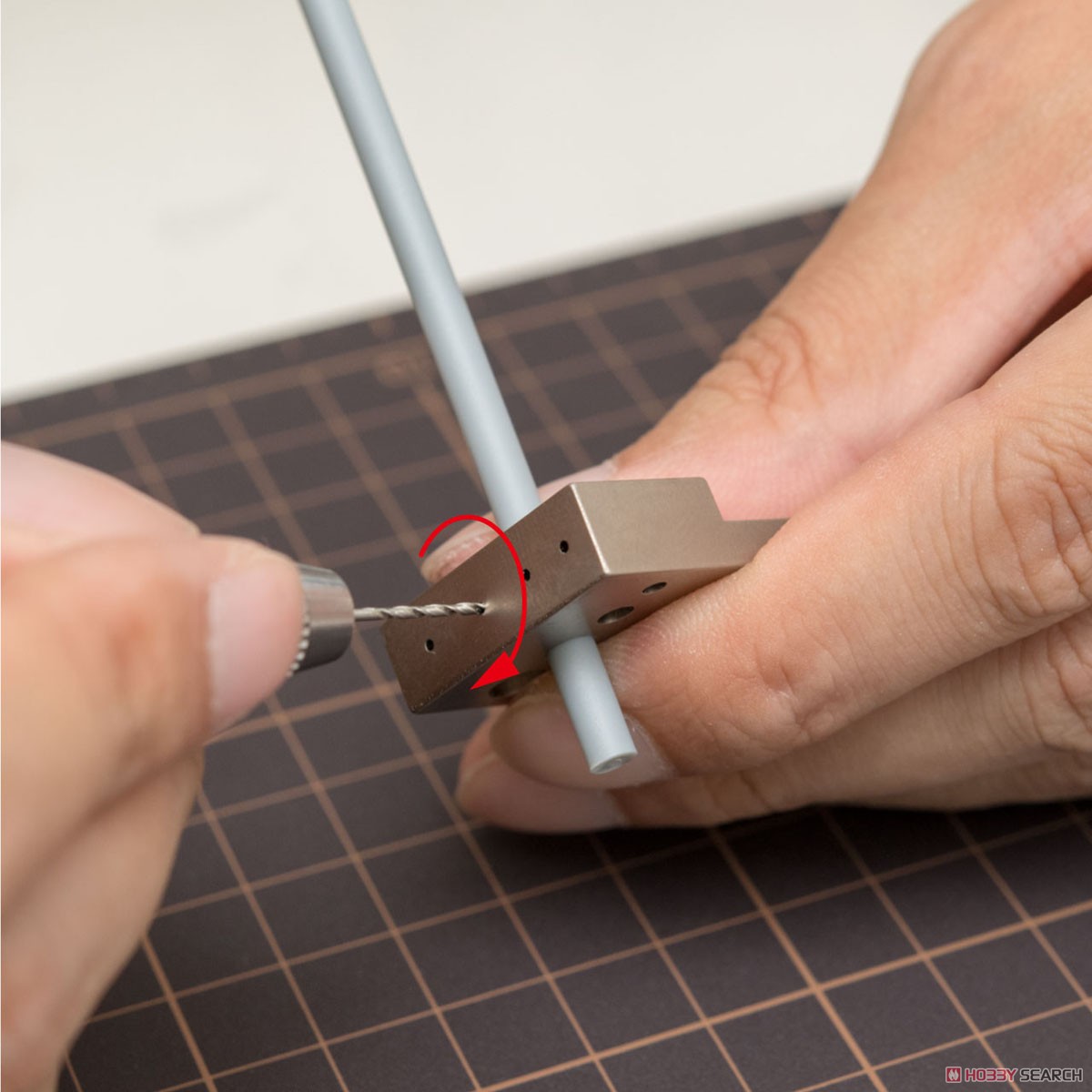

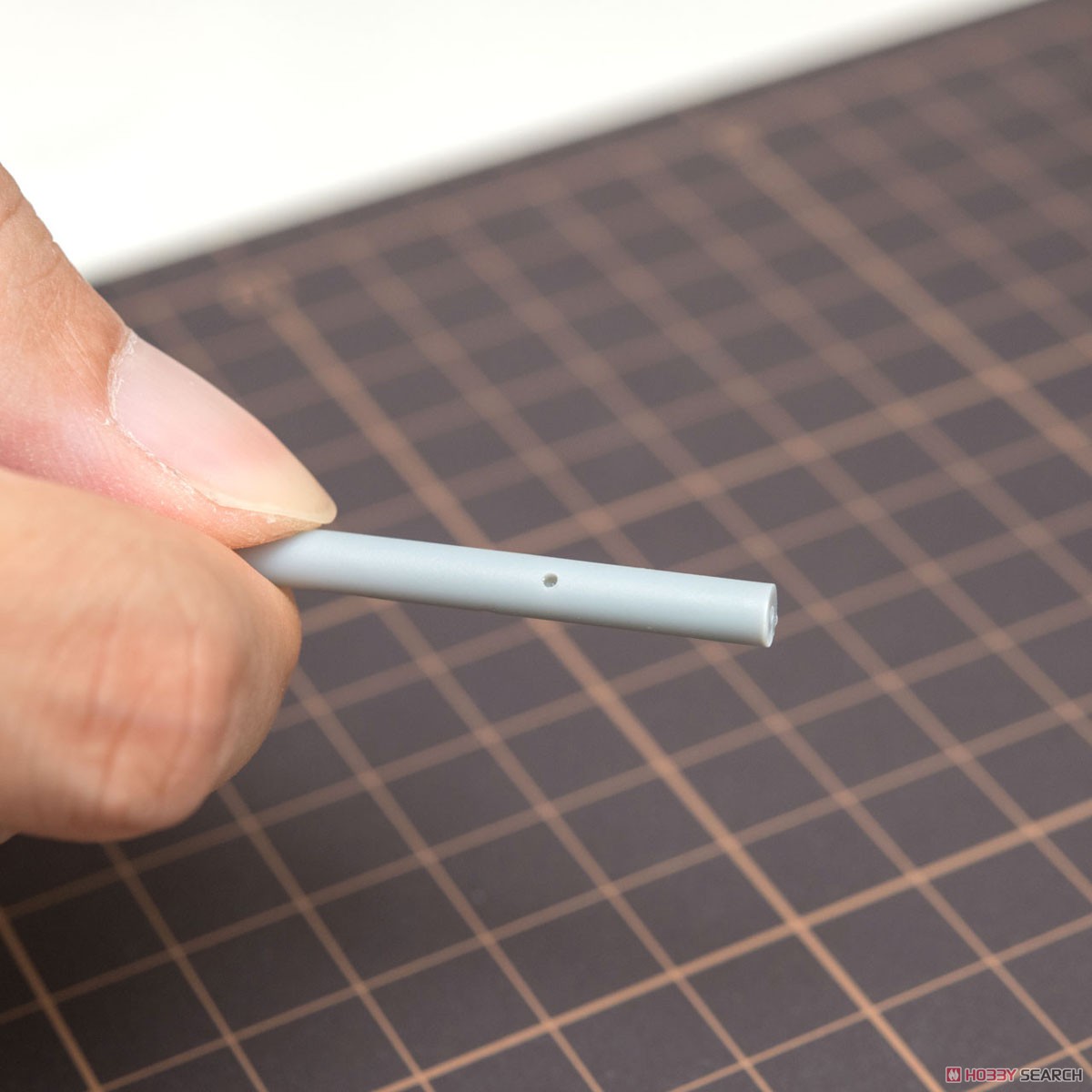

-Assists in drilling 1 mm diameter on the end and side of the round bar.
-Compatible with plastic round bars of diameter 2, 3, 4, 5 mm

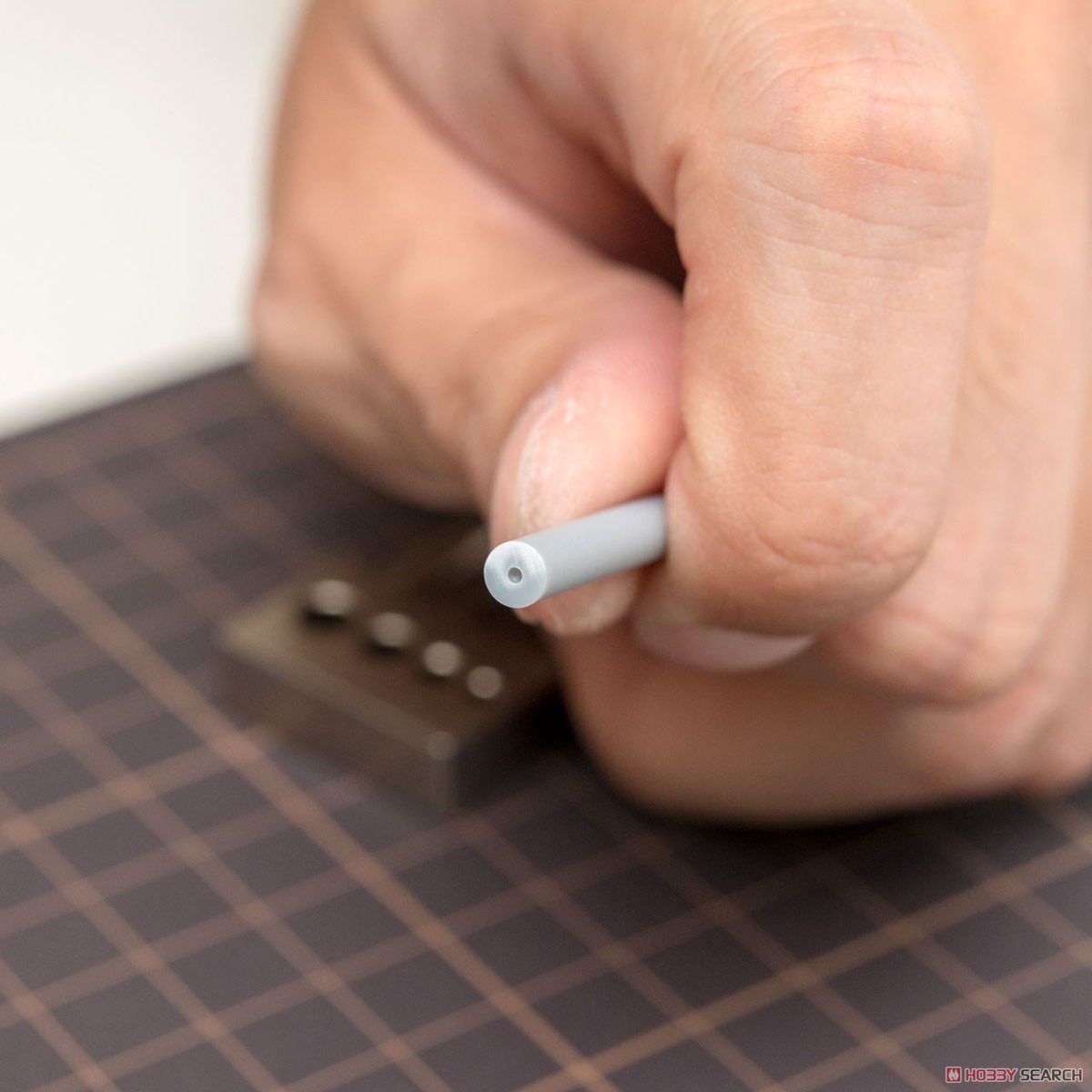

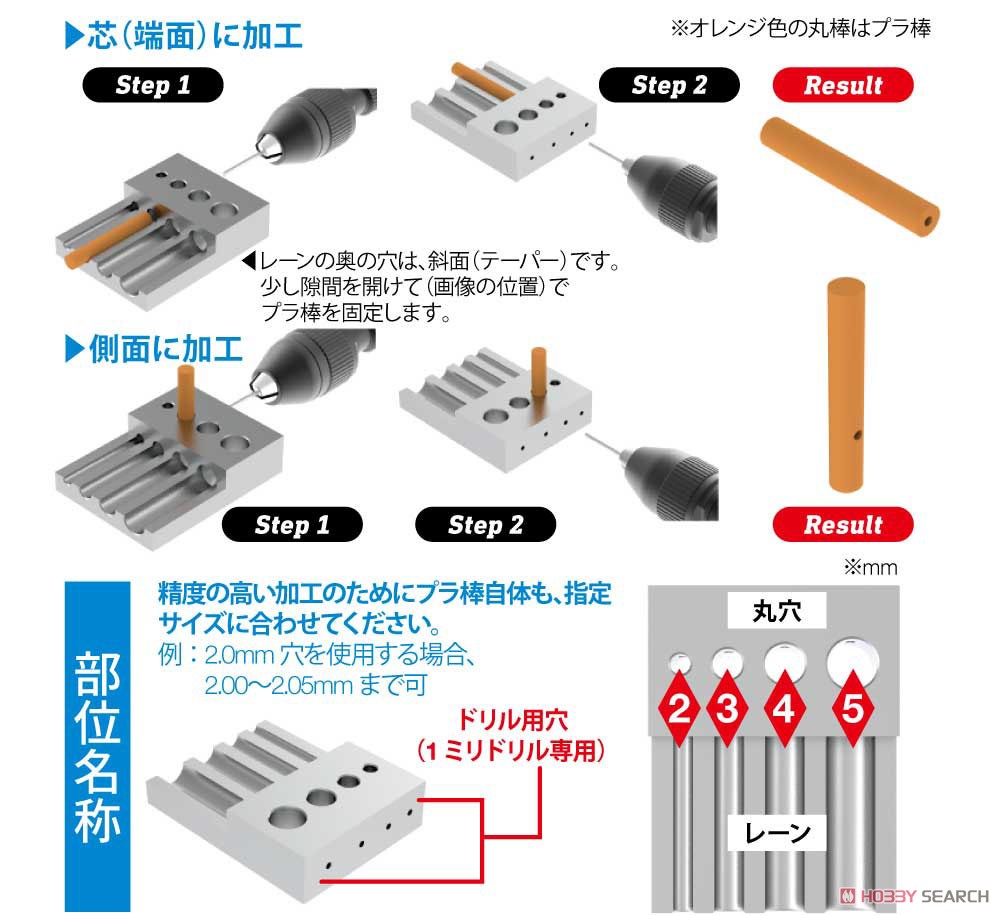

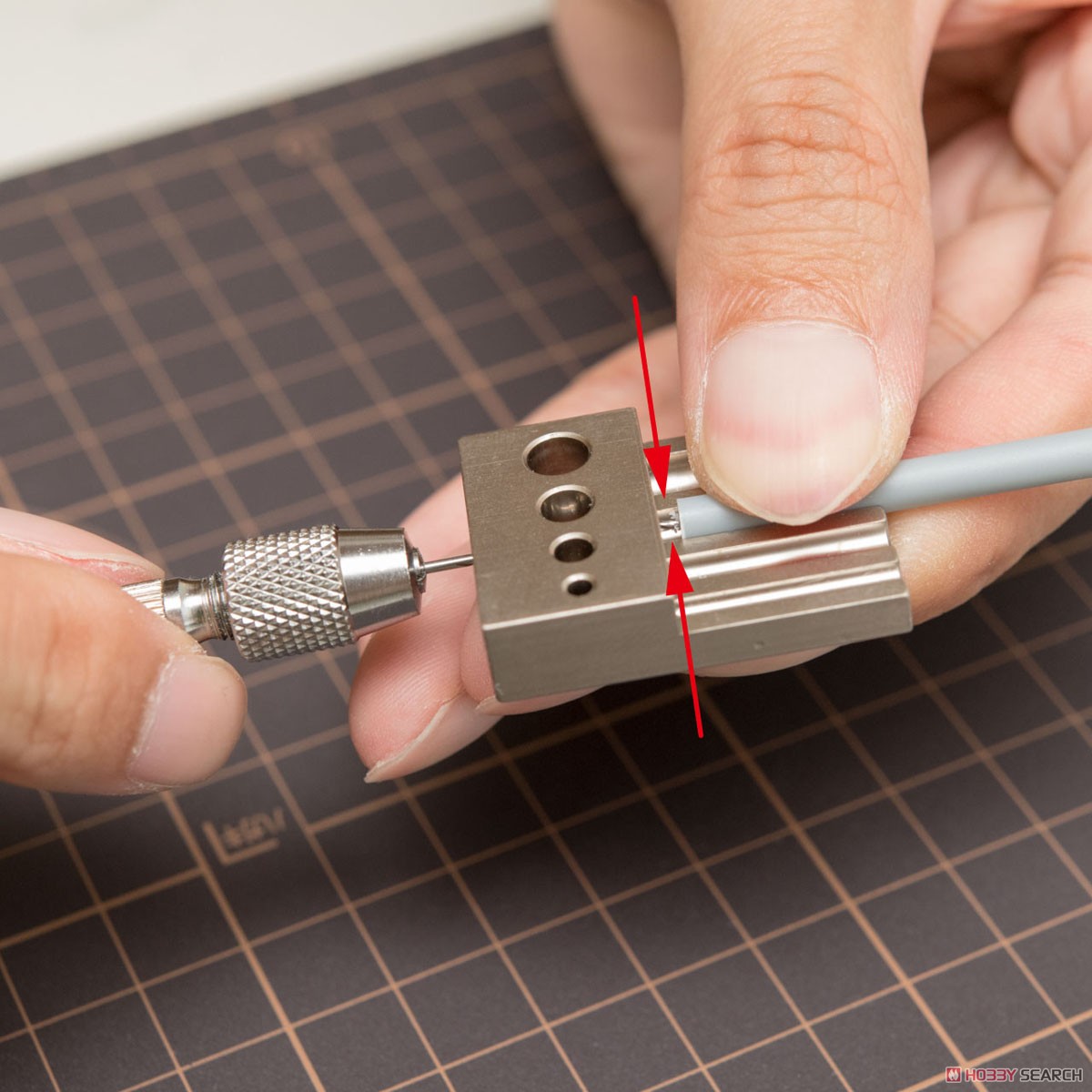

-A core of plastic round bar (end face), a jig for making a hole straight on the side.
-Only for 1 mm drill bit.
-If you want to make a hole smaller than 1 mm in diameter, use a drill bit with a small diameter blade at the tip with a 1 mm axis (however, a total length of 18 mm or more is required for core and end face processing).

-Please adjust the plastic rod itself to the specified size for high precision processing.
-Example: When using a 2.0 mm hole, it is possible to 2.00 to 2.05 mm

-For the first use, it is necessary to drill holes for drilling.
-By inserting a 1 mm drill, excess plating thickness inside the drill hole can be removed

-Be sure to use a drill bit of the specified size. The inner wall of the hole may be scraped off, the accuracy may drop, and the blade may not come off
-There may be scratches on the surface that do not cause any problems in use. Please note

[Product specification]
-Size: W25mm x D30mm x H8mm
-Material: Brass (Plated to Nickel)
-Processable material: plastic
-Producing country: Japan

※ The shape has changed since the mid-September 2019 shipment. It is a change that does not affect the main function. It is September 2019 type that lane is slanting when it sees from the front.
※ There is also a change in size. D33mm → D30mm


Item Size/Weight : 13.4 x 7.3 x 1.9 cm / 39g

Product Specifications

Item code

CEND2050-2

JAN code

4573211375541
