-We will commercialize Series 701 trains, which will be the mainstay of commuting and suburban transportation in the Tohoku area.
-Series 701 is a lightweight stainless steel three-door 20m class suburban type newly constructed from 1993 (1993) for the purpose of replacing coach trains and JNR trains that commutered and transported in the Tohoku area. It is a train. Adopting the VVVF inverter control system, it has indoor equipment based on long seats from the viewpoint of one-man operation and in-vehicle movement. There are 2 to 4 trains, and they are operated with the composition according to the transport volume.
-The product releases 4-car train and 2-car train in Sendai area. Different aspects are created by the two-car organization for non-one-man and the two-car organization for one-man. Both sets include motor cars, and you can enjoy a variety of combinations such as 2 + 2 + 2 + 2 + 2 + 4 as well as 2 + 4 + 4 single formations.

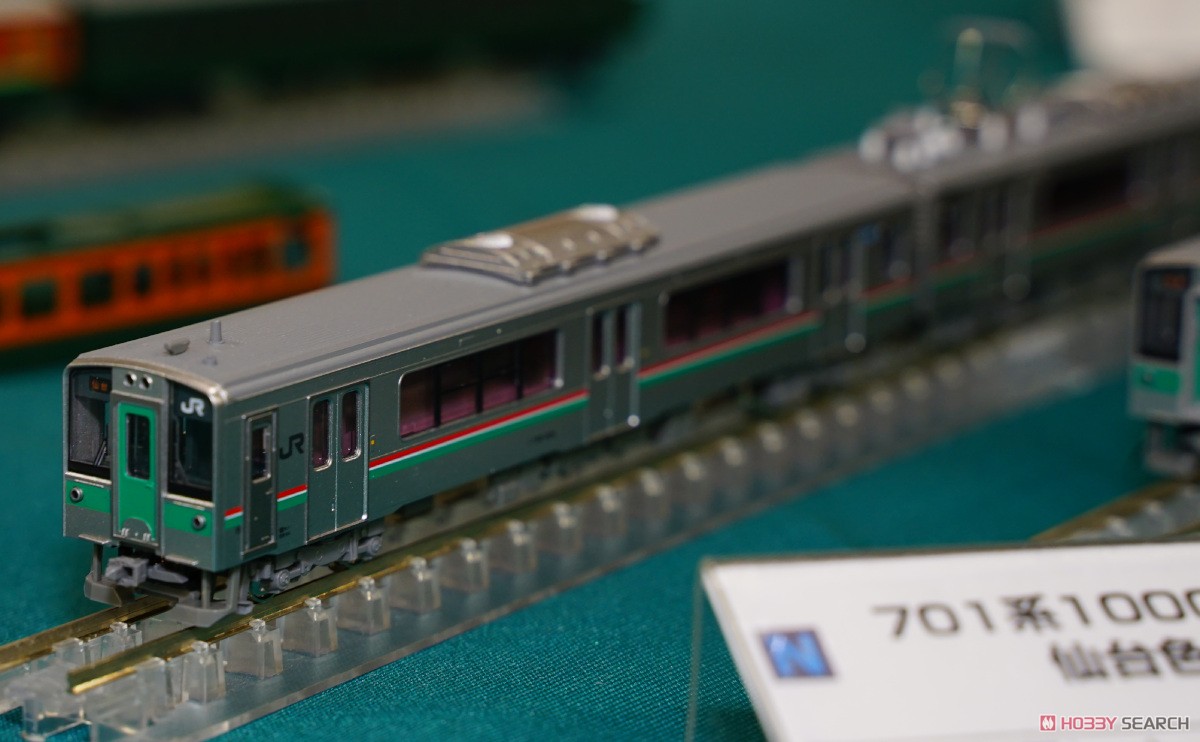

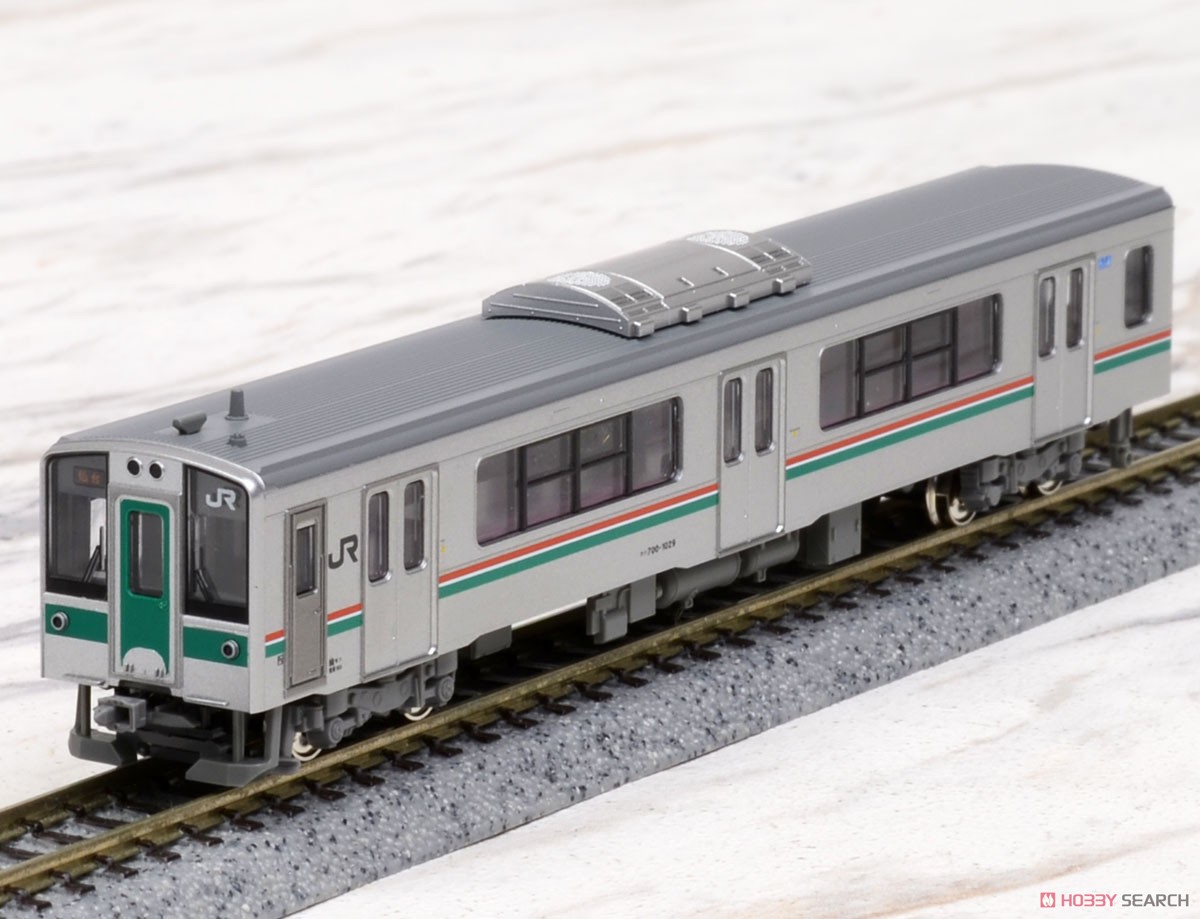

-The F4-29 formation (4 car formation) and F2-24 formation (2 car formation) belonging to Sendai Vehicle Center are selected as prototypes.
-A customer door with steps, equipment around pantographs only for AC trains, etc. Really reproduce different parts while resembling DC train E127 series of the same form.

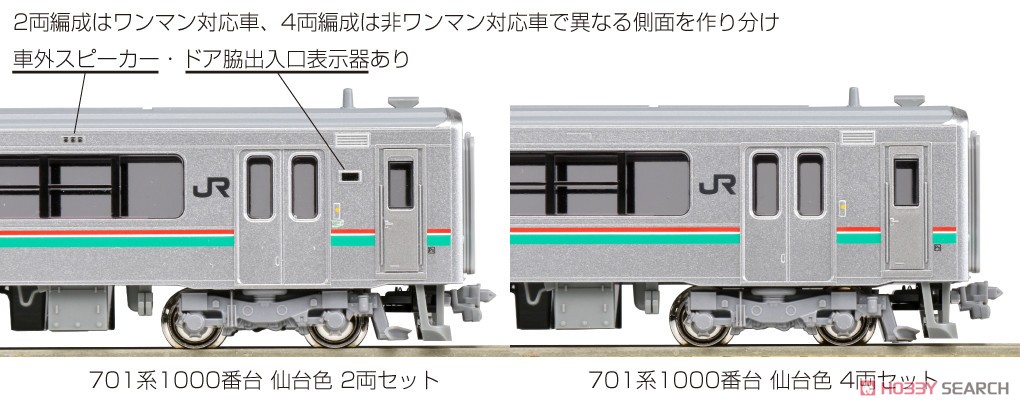

-The 4-car train is a non-one-man car, and the 2-car train is a one-man car that creates different sides.
4 car ... without speaker outside door of door plate, doorway indicator beside the door
Two cars ... There is an outside speaker · door side entrance display

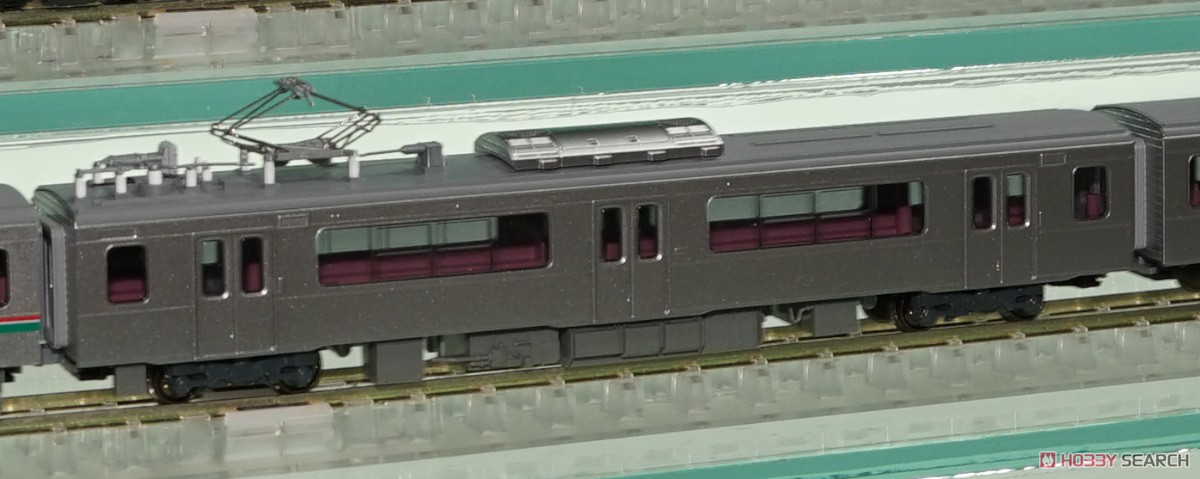

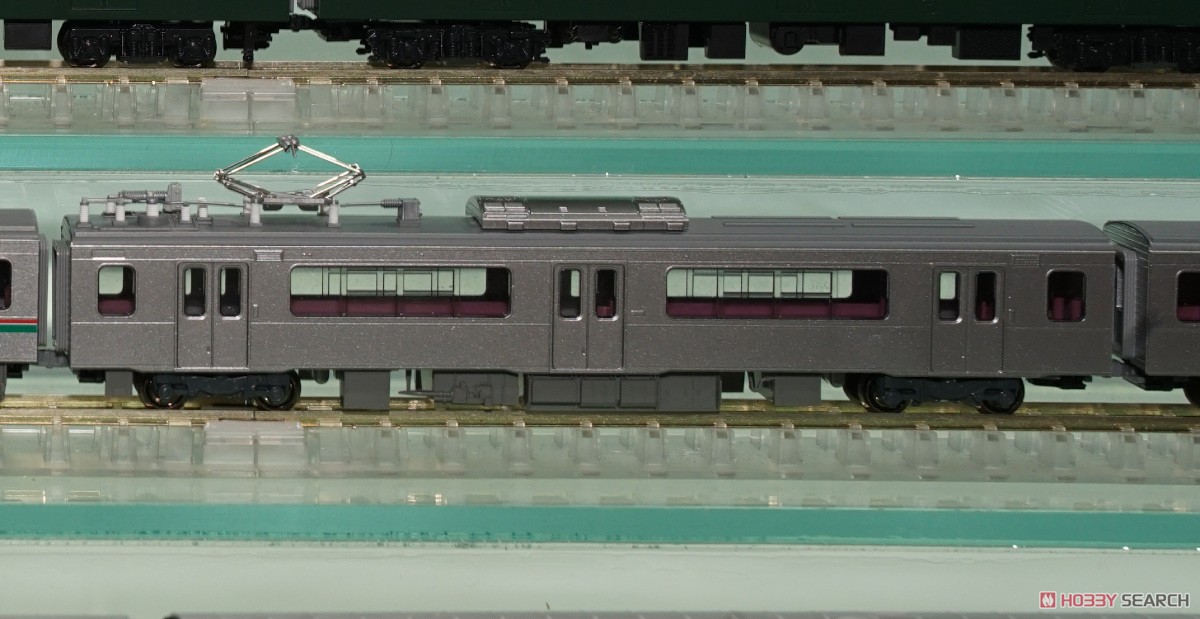

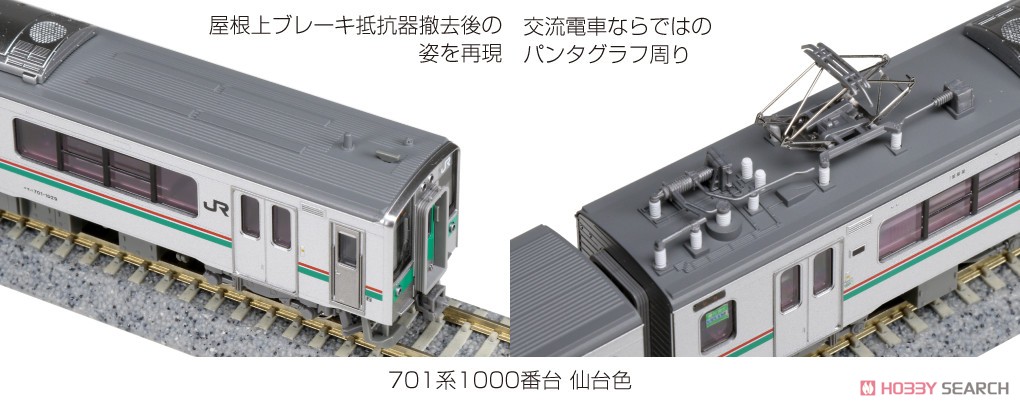

-The pantograph is equipped with a small PS105. Reproduce the high-pressure equipment unique to the AC train. Lions are reproduced in white.
-Reproduce the form after the control equipment is updated, remove the brake resistor on the roof of Spiderha, and switch to the destination display LED.

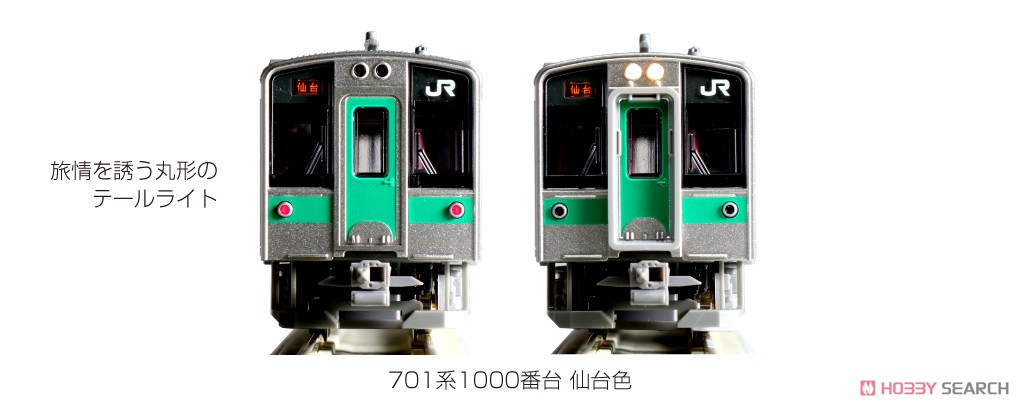

-Each leading car is equipped with a light unit (with a light off switch). Head / tail light · display on the front. Bulb color LED adopted.
-The front display is attached to [Sendai]. Replacement front display (plain) and destination display sticker included.
-Printed wheelchair mark and stroller mark.
-Both sets of motor vehicles are set to spiders 701. One truck drive. Equipped with traction tires. DCC friendly.

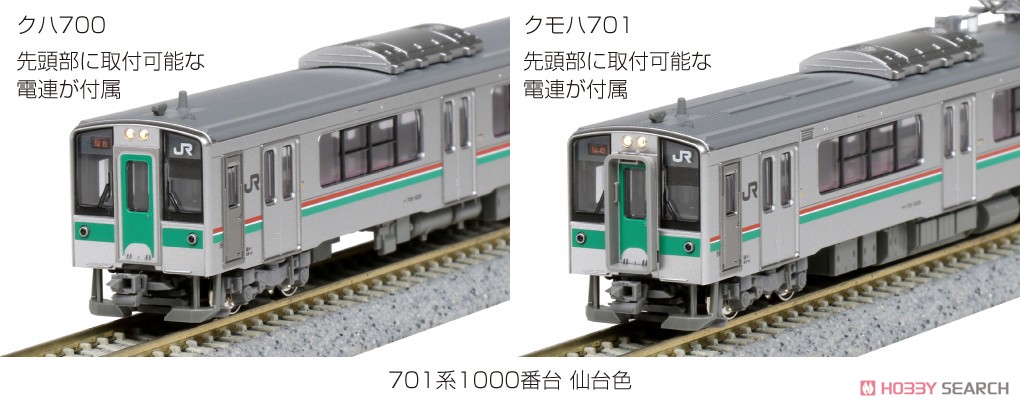

-Coupler adopted body mount close link coupler without hook in each car. The electric train which can be attached to the head part is attached.

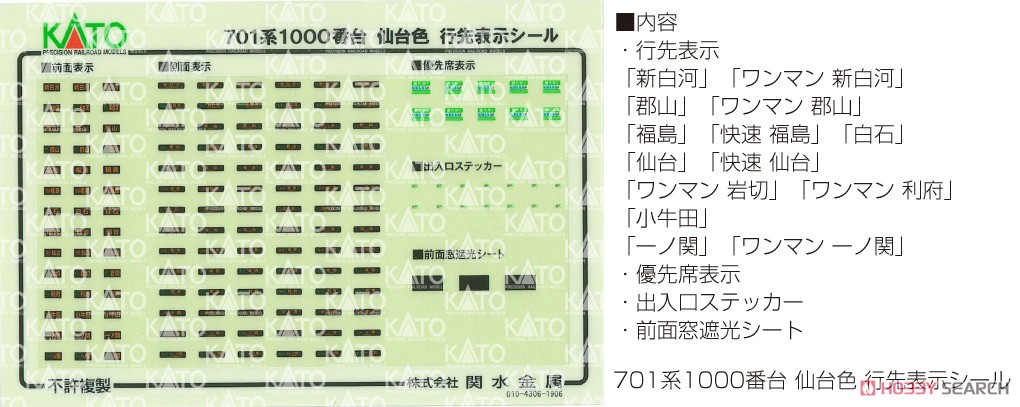

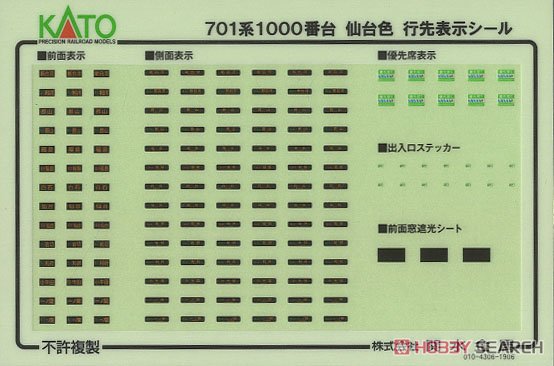

-Destination indication sticker attached. Includes front view, side view, priority seat view, doorway sticker, front window shading sheet.

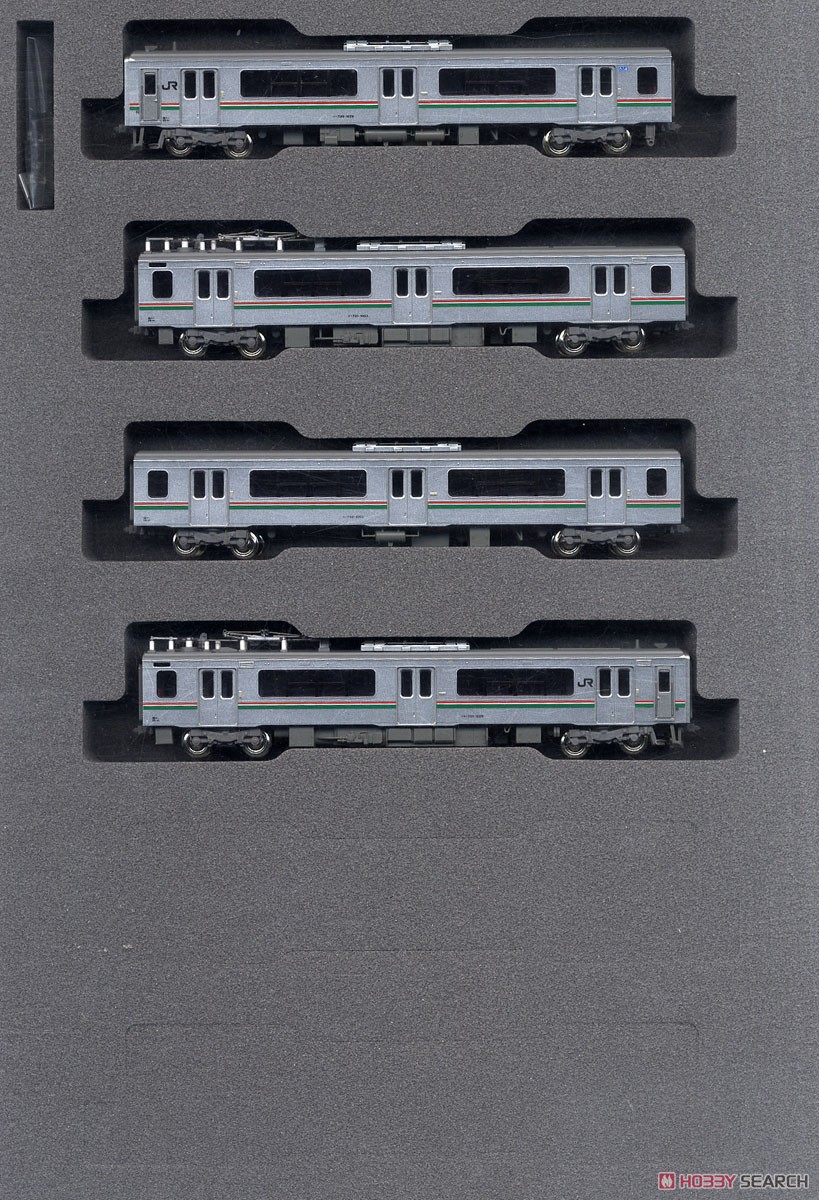

-Package is a 4-car set with a 6-car bookcase. We can store two sets.
[Example of set configuration / organization]

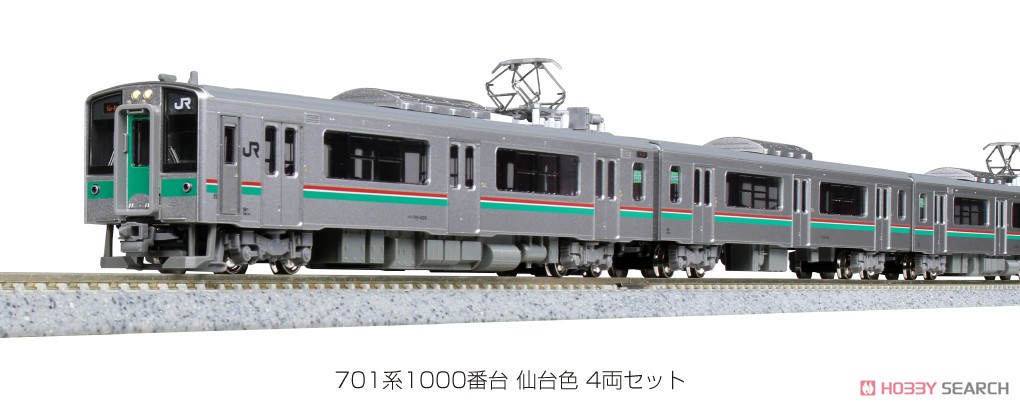

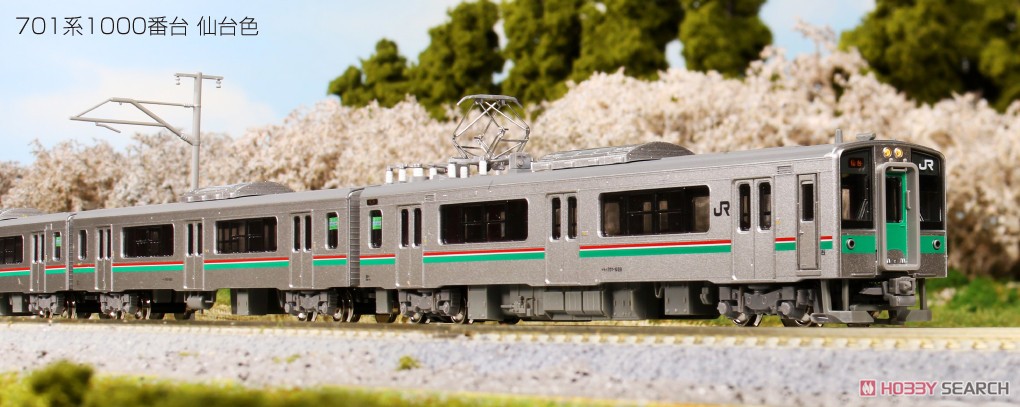

-Series 701 1000 series Sendai color 4-Car Set Set Configuration
← Shin Shirakawa Sendai · Rifu · Ichinoseki →

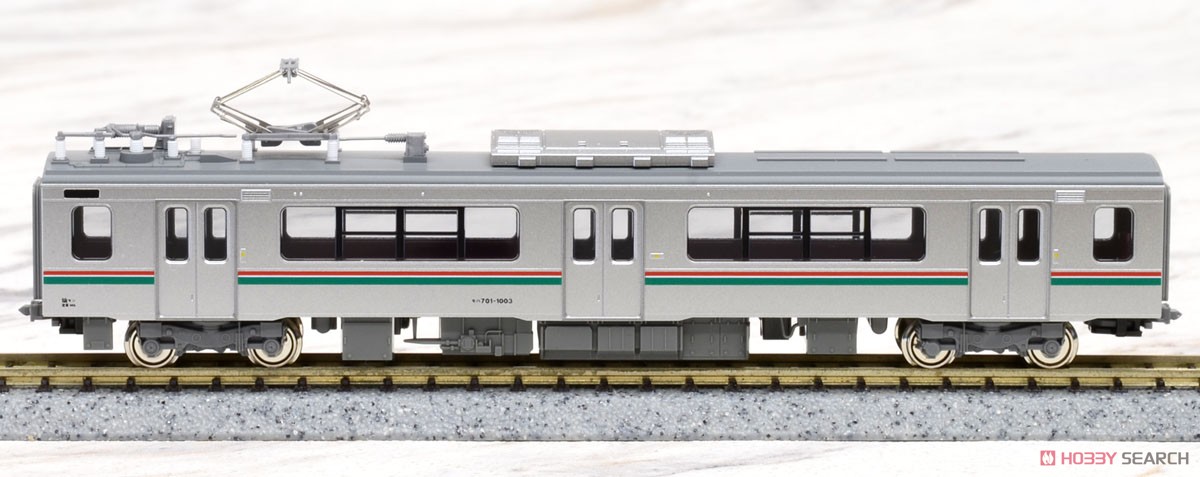

Kuha 700-1029 + Moha 701-1003 + Saha 700-1003 + Spiderha 701-1029 (M)
-Series 701 1000 series Sendai color formation example
Kuha 700-1029 + Moha 701-1003 + Saha 700-1003 + Kumoha 701-1029 (M) + Kuha 700-1024 + Kumoha 701-1024 (M)
Kuha 700-1024 + Spiderha 701-1024 (M) + Kuha 700-1000 + Spiderha 701-1000 (M) + Kuha 700-1000 + Spiderha 701-1000 (M)
Kuha 700-1024 + Spiderha 701-1024 (M) + Kuha 700-1000 + Spiderha 701-1000 (M)

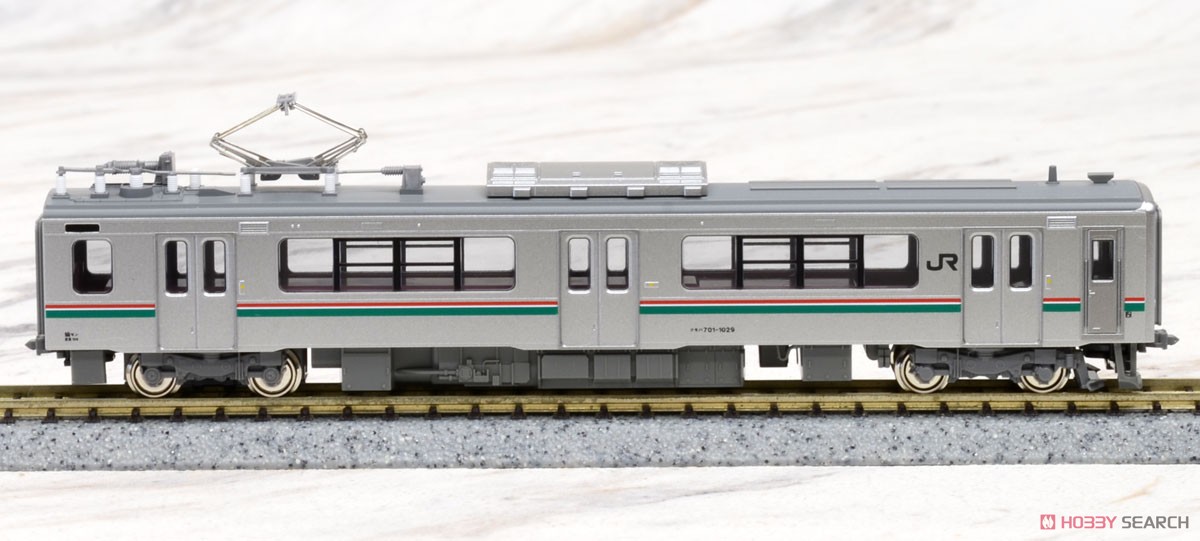

-Spider Ha 701-1029 (M)
-Front display for replacement (plain)
・ Den Ren
・ Linker cover
・ Driver for switch off
・ Destination indication seal
[Related optional parts]
-11-21 / 212 LED room light clear / (6 cars included)
