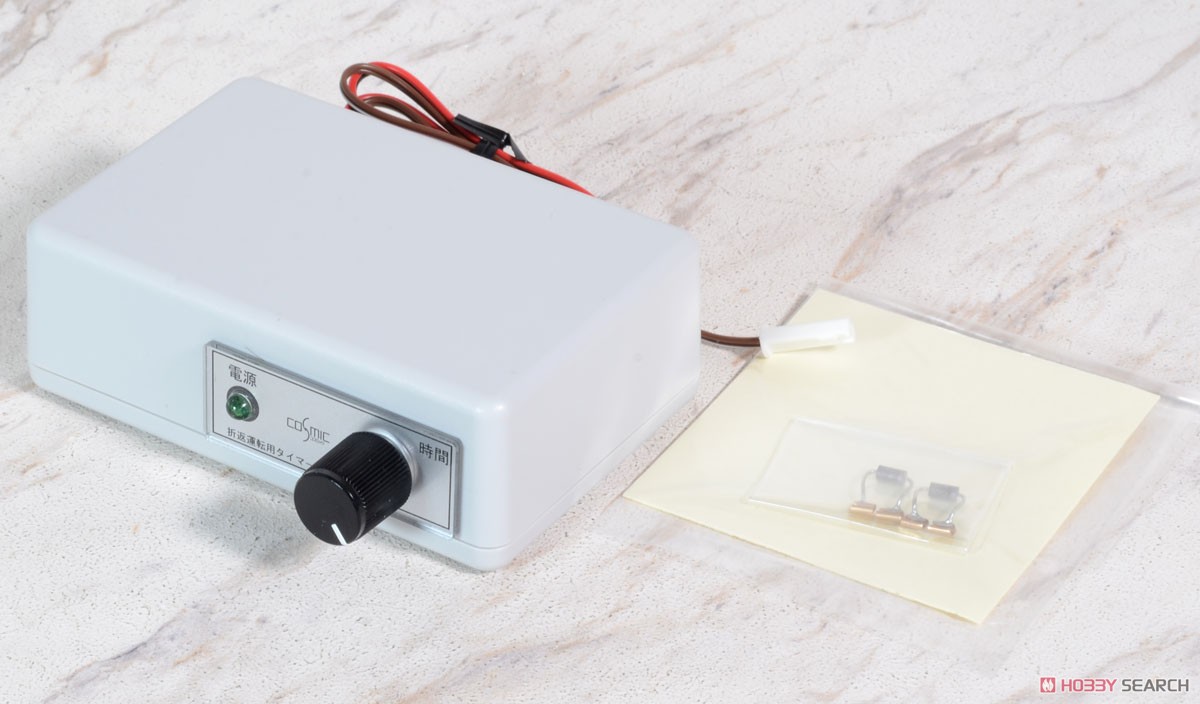

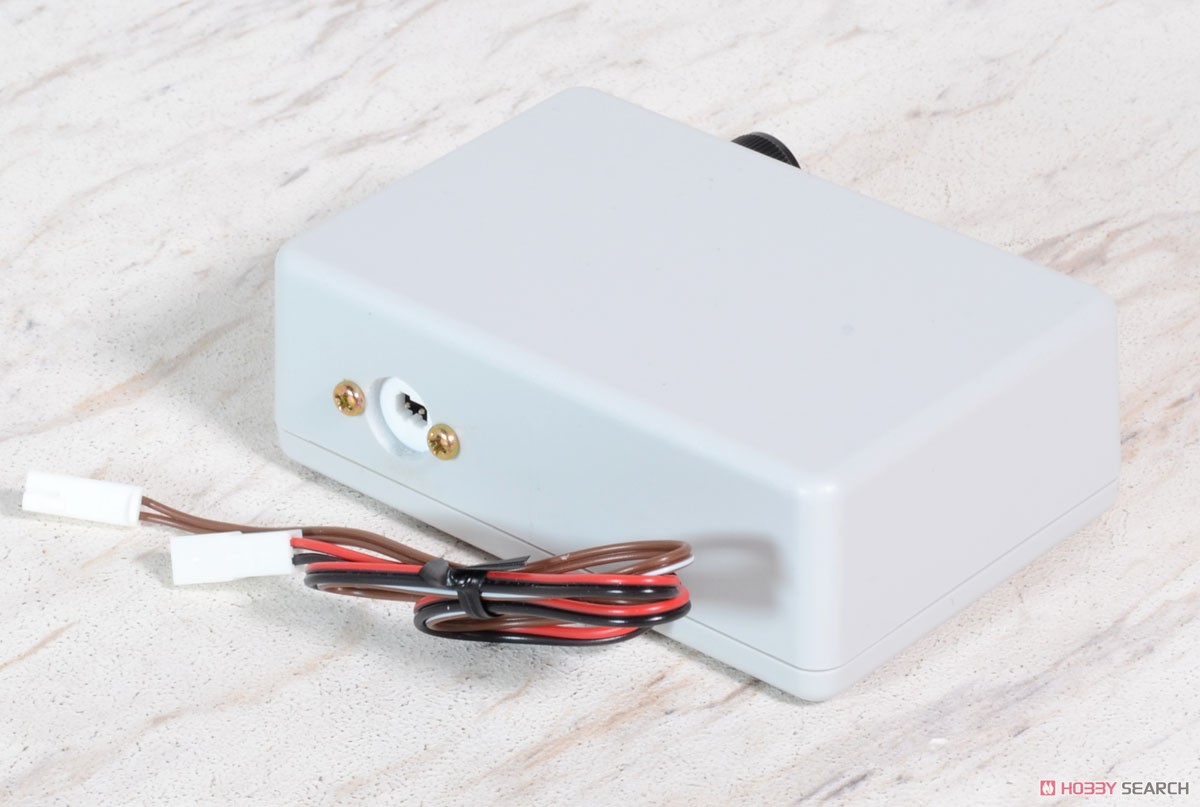

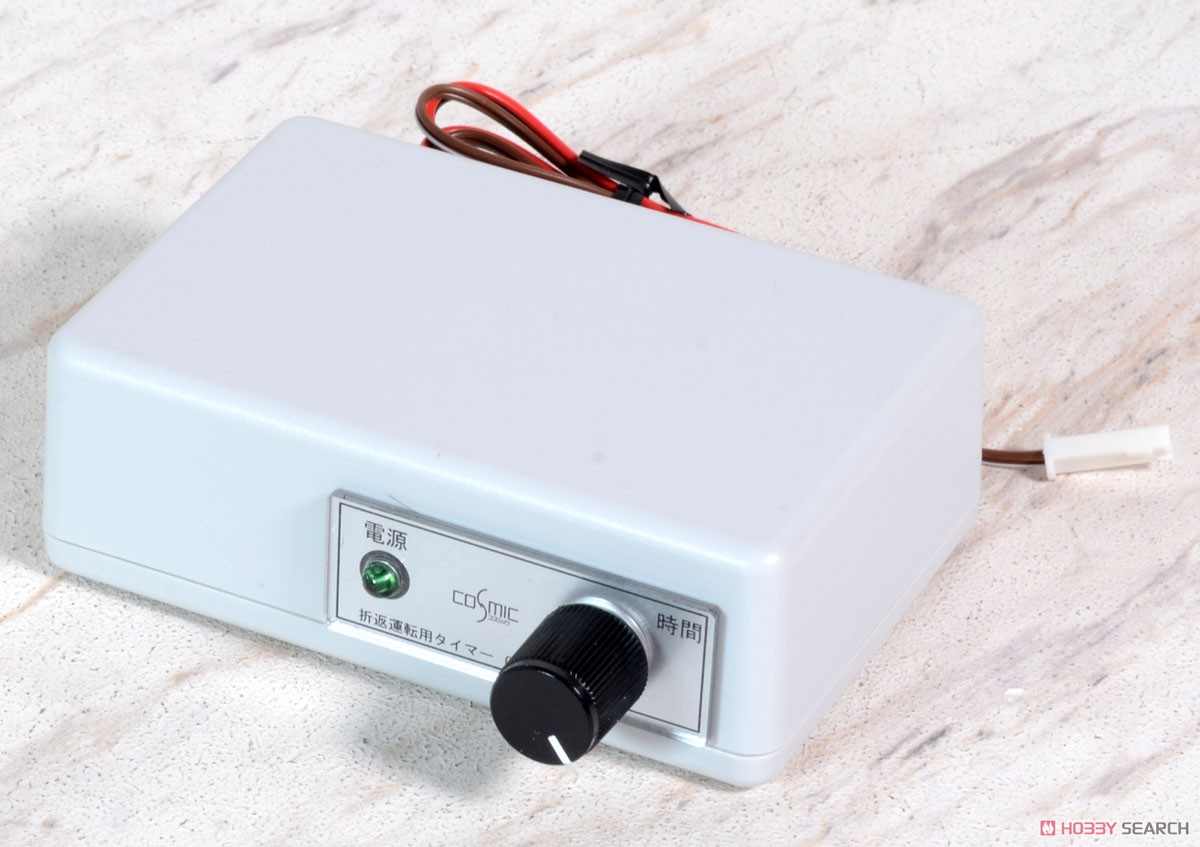

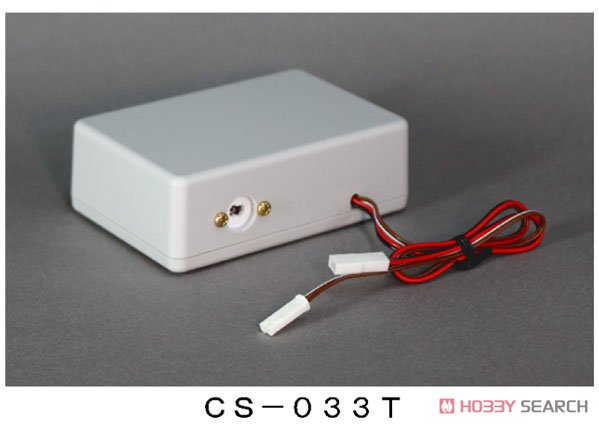

Simple Shuttle Drive Timer (for Tomix) (Model Train) - HobbySearch Model Train N Store

* Hurry! This item is almost sold out!

This item is limited to 12 per household.

[ Related Products ]
- Simple Shuttle Drive Timer (for Kato)
- Diode w/Clip for Return

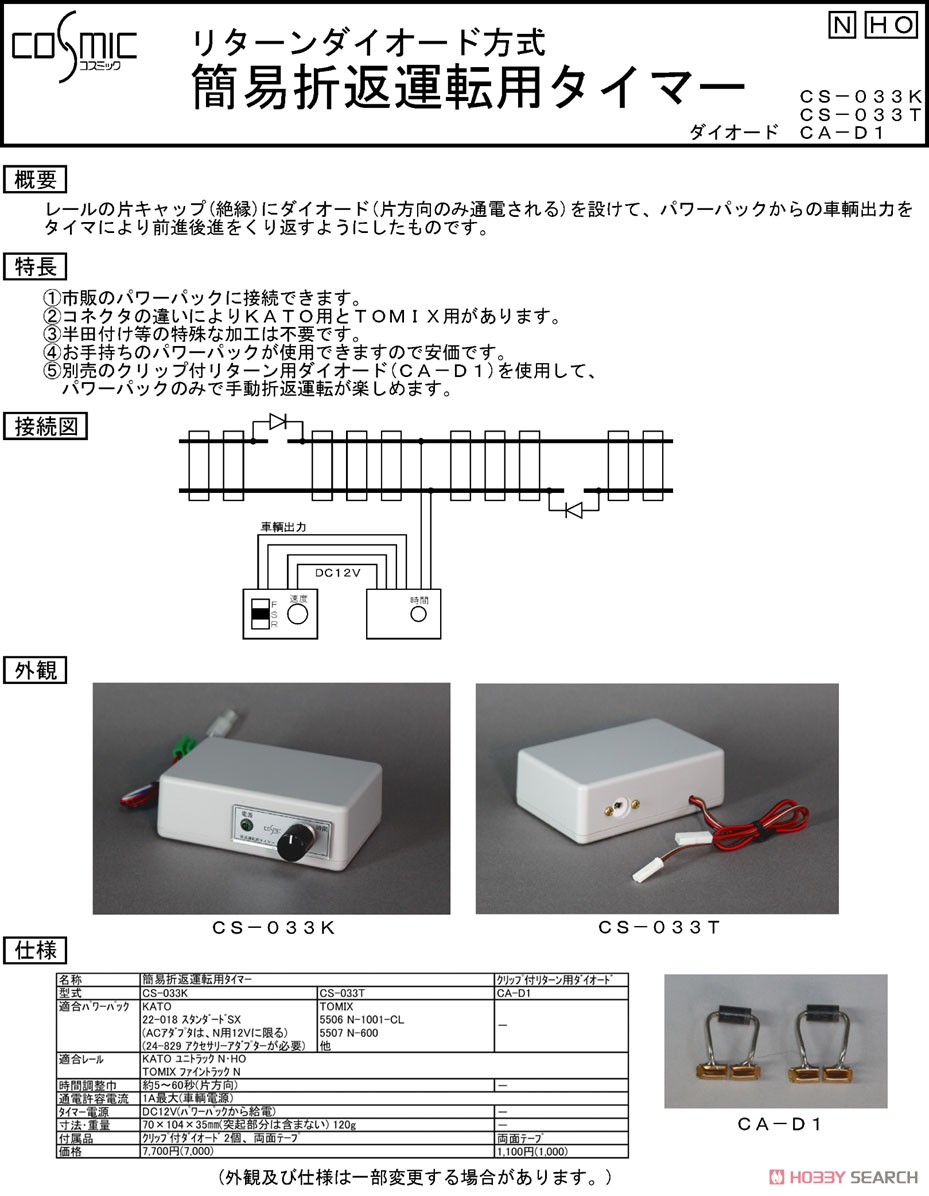

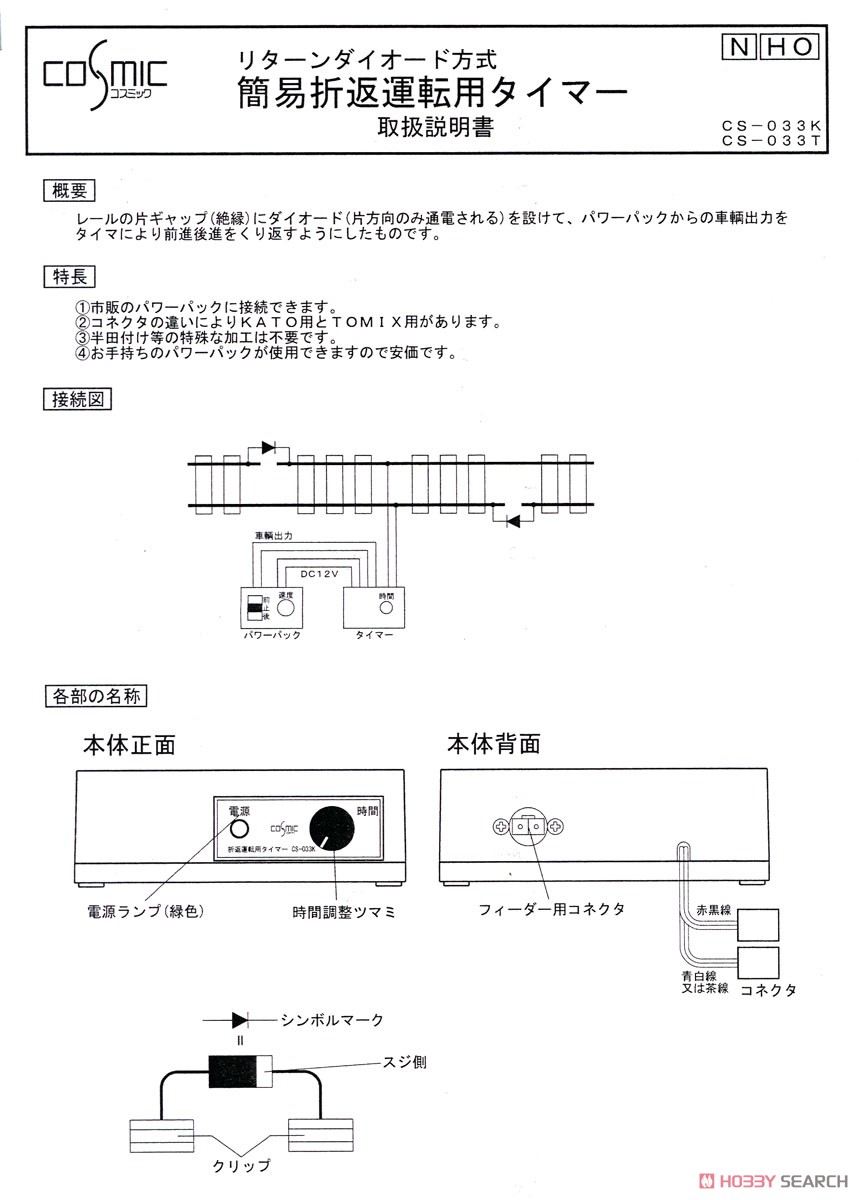

――A diode (energized only in one direction) is provided on one cap (insulation) of the rail, and the vehicle output from the power pack is repeatedly moved forward and backward by a timer.

[Features]
--Can be connected to a commercially available power pack.
--There are KATO and TOMIX depending on the connector.
--No special processing such as soldering is required.
――You can use your own power pack, so it's cheap.
--Using the return diode with clip (sold separately), you can enjoy manual turn-back operation only with the power pack.

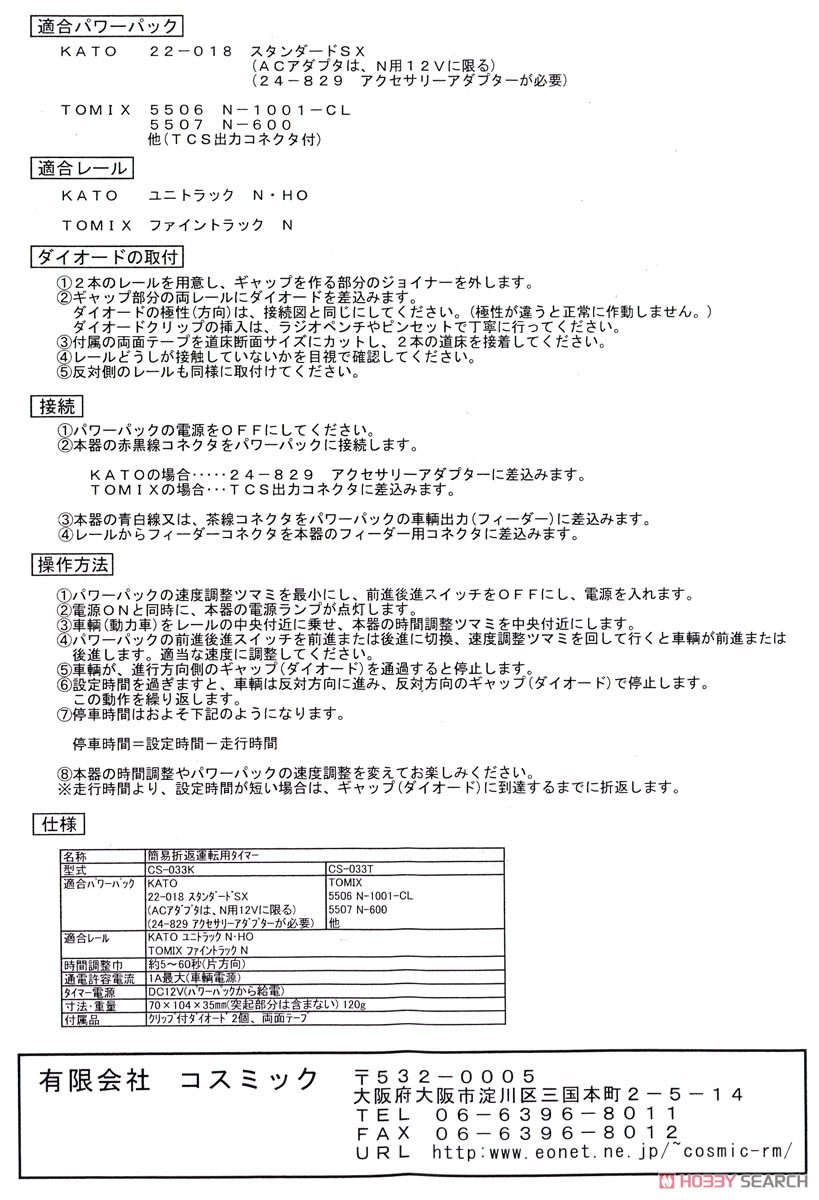

[specification]
--Adaptive power pack
・ TOMIX 5506 N-1001-CL
・ TOMIX 5507 N-600
·other
--Adaptive rail
・ KATO Unitrack N ・ HO
・ TOMIX Fine Track N
--Time adjustment width: Approximately 5 to 60 seconds (one way)
--Current current allowable current: 1A maximum (vehicle power supply)
--Timer power supply: DC12V (powered from power pack)
--Dimensions / Weight: 70x104x35mm (excluding protrusions) 120g
- accessories
・ Two diodes with clips
·double-sided tape

Item Size/Weight : 13.8 x 13 x 4.9 cm / 175g
