* This item cannot be canceled.

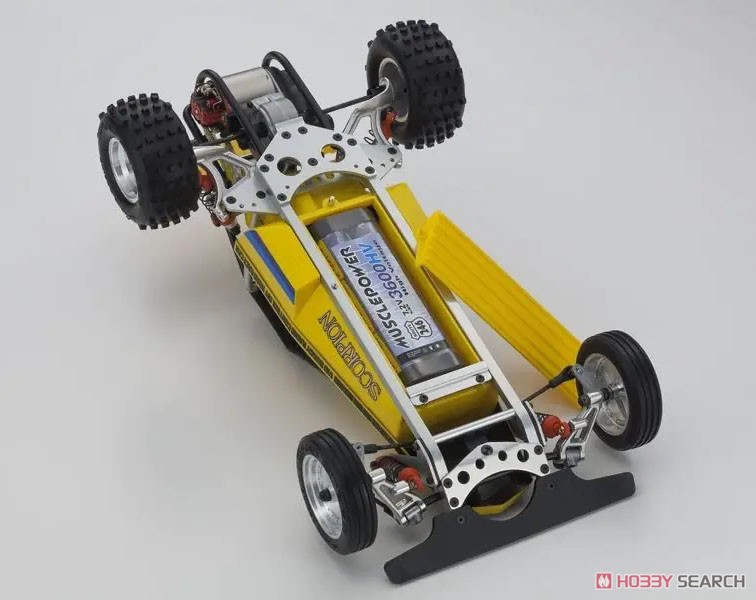

- A reprint that goes beyond the reprint is finally here! The famous Scorpion is back!
- Faithful to the original, but upgraded throughout!
[Technical Data]
- Total length 398mm
- Overall width: 236mm
- Height 145mm
- Wheelbase 263mm
- Track (F/R): 198mm/195mm
- Tires (F/R): 75×20mm / 85×41mm
- Gear ratio H specification 6.9:1, L specification 8.3:1 (2 combinations included)
- Total weight: approx. 985g (without R/C mechanism and battery)
- Motor 540 class
- Battery size L 143mm x W 50mm x H 26mm
*If you are installing a box-type Li-PO with a European connector, you will need to enlarge the terminal hole in the radio box.
*When installing a small battery such as a short size battery
You will need to fill in any gaps with sponge or styrofoam.
[Kit Contents]
- Complete assembly kit
- Assembly kit (gearbox and oil damper are pre-assembled)
- Clear polycarbonate body
- Decals
- L-shaped hexagonal wrench
- Cross wrench
- Damper wrench
- Damper oil
- Grease
- Thread locking agent
[Required items for operation]
- 2ch 1 servo radio for all car models
- 540 class motor (recommended: 30-27 turns)
- ESC for motor used
- Battery pack for running
- Charger
- Paint for polycarbonate body
- Transmitter battery
- Tools (1.5, 2, 2.5mm hex wrench drivers)
( This is a machine translation. Please allow for possible misinterpretations in the text. )
