Product Description

──Rear-drive chassis with emphasis on driving performance
──MINI-Z RWD series combined with Syncro KT-531P transmitter.

- The MINI-Z racer has been completely established as an R/C model that anyone can easily start using just by preparing 8 AAA batteries.
- Based on the concept of [making it easier for a wider range of users to enjoy the game], a set includes a Syncro KT-531P transmitter and a scale body that realistically reproduces popular car models. This is the `MINI-Z RWD series`.

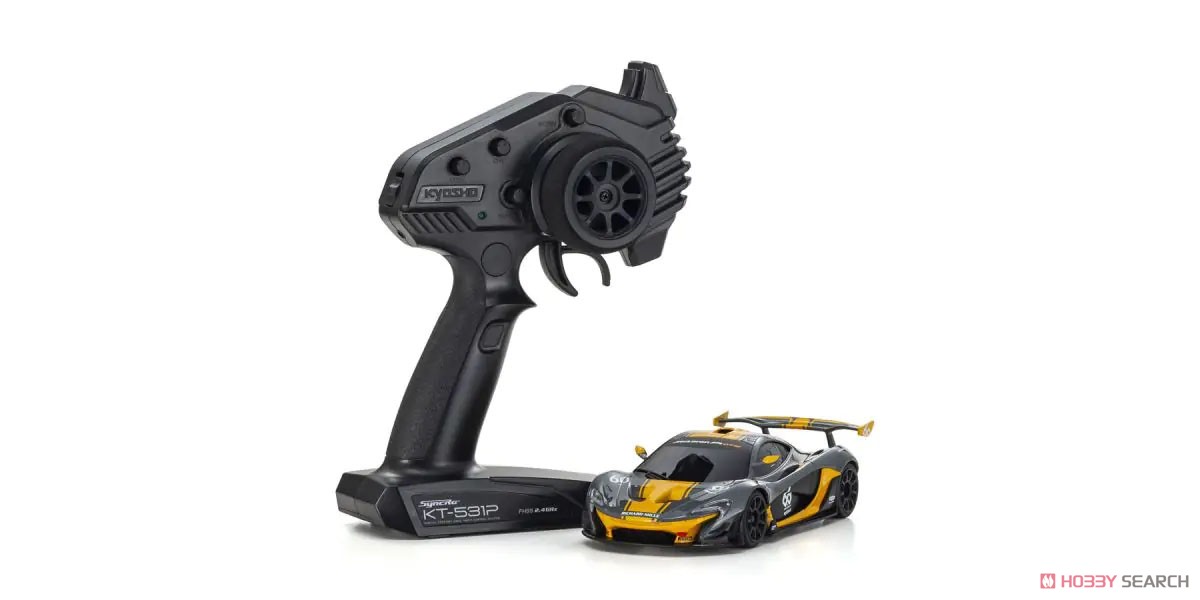

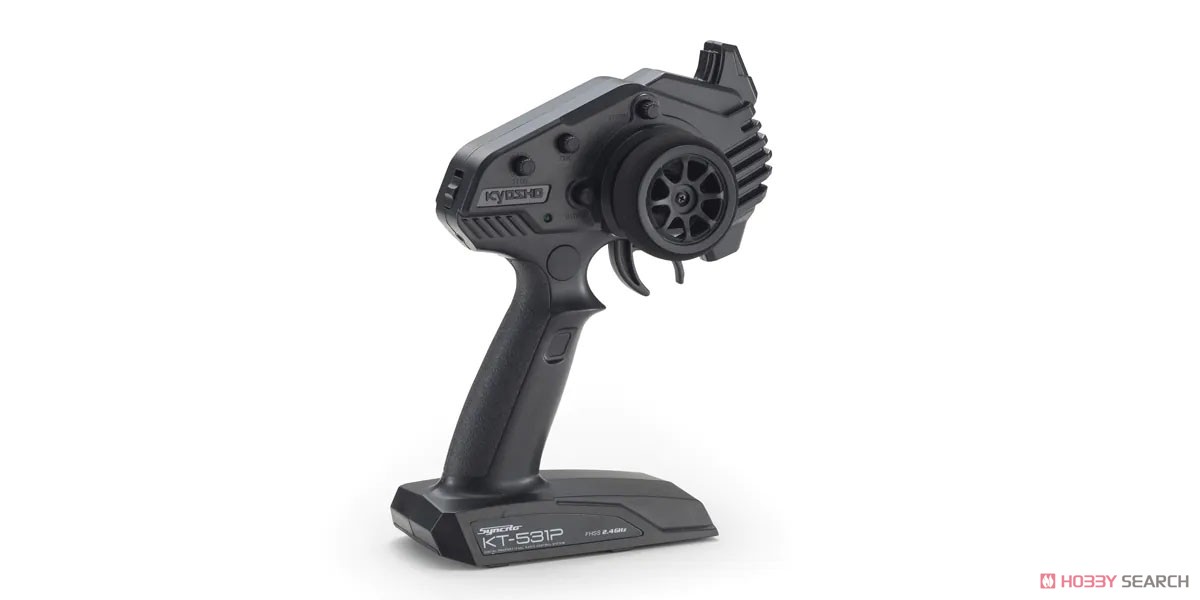

- In addition to steering trim and throttle trim, the Syncro KT-531P transmitter is equipped with dual rate and LED control functions, as well as a sponge on the steering wheel as standard to emphasize fit when controlling. Also included is a factory-assembled body that is finished to the same level as a display model, making it even more fun to display.

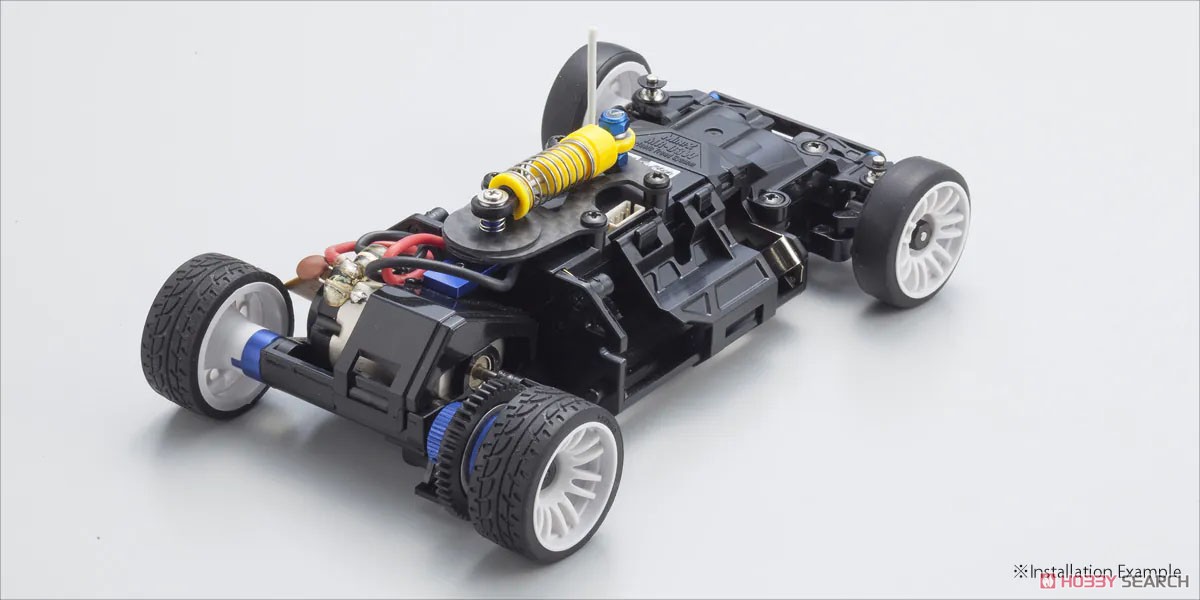

- The chassis is based on the proven MR-03, so not only does it have excellent driving performance, but it also has guaranteed durability and reliability.
- Furthermore, by adopting a new board with a completely new control program in conjunction with the adoption of the Syncro KT-531P transmitter, linear handling has been achieved, and the optional gyro unit (MZW446/sold separately) has been adopted. The behavior when worn is also more controllable.
- Since it is the perfect package for your first R/C car, why not start your R/C life with this series?

*Since the Syncro KT-531P transmitter uses FHSS2.4GHz, it is not compatible with conventional ASF/MHS/FHS2.4GHz systems.
*The separately sold LED light unit set (No.MZW429R) cannot be installed on the McLaren P1 GTR Kyosho / McLaren 60th Anniversary Specification.

- MINI-Z RWD series that uses the Syncro KT-531P transmitter, which can be configured in various ways.
- In conjunction with the adoption of the Syncro KT-531P transmitter, the steering feel has been dramatically improved by adopting a new board with a completely new control program.

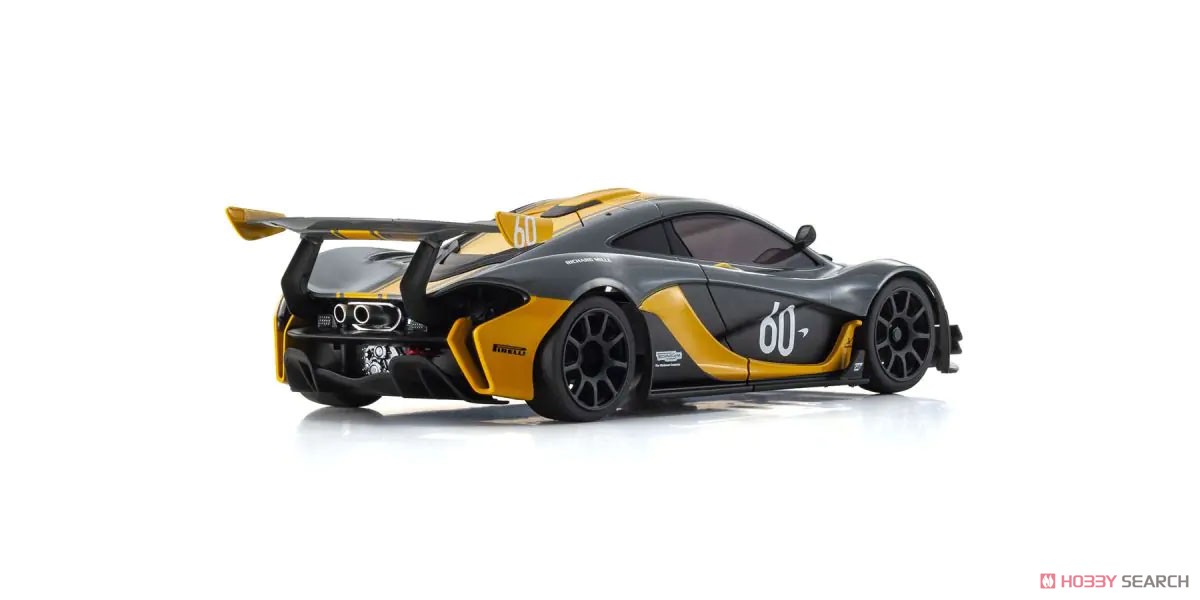

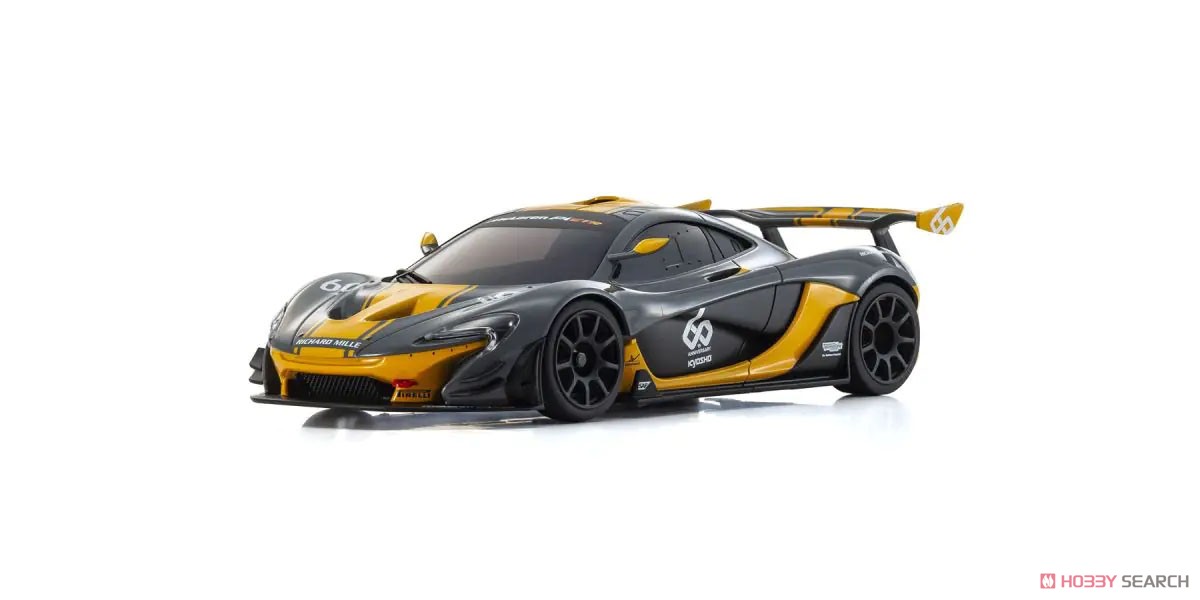

- The factory completed body has a high scale finish comparable to the display model.
- Full bearing specification with a total of 7 ball bearings, which were previously optional.
- Can be installed on all MINI-Z racer bodies. *Motor case and differential gear assembly compatible with the installed body are required separately.

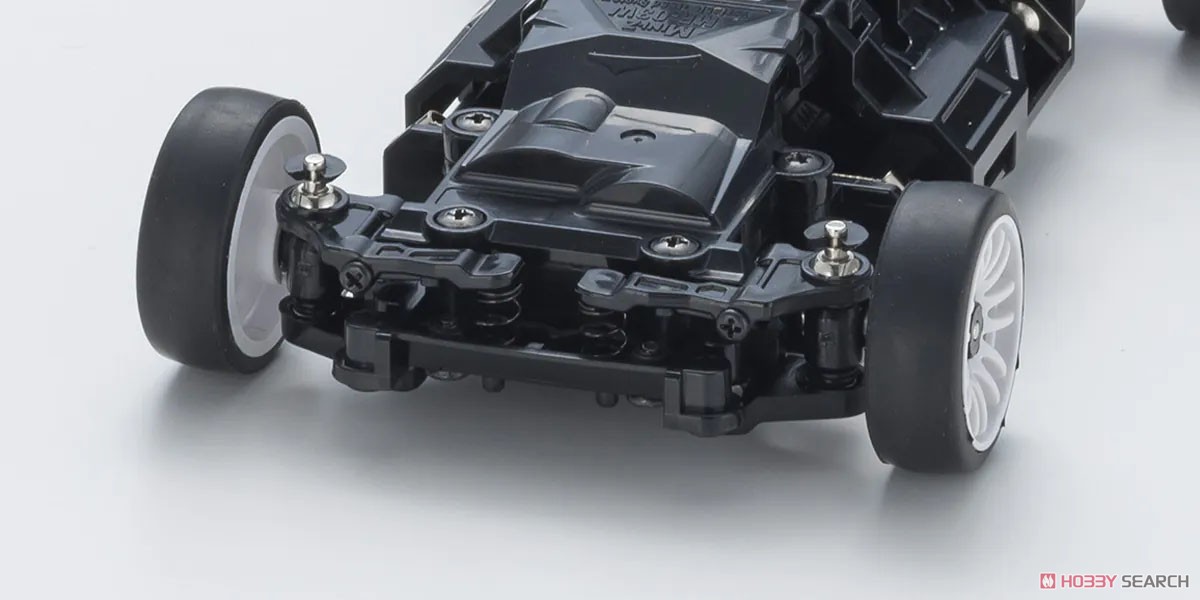

- Adopts an original front suspension [VCS] that brings out the optimal camber change according to the suspension stroke.
- Optional gyro unit (MZW446) can be installed. The effectiveness of the gyro unit can be adjusted using the volume installed on the vehicle body (*When using the separately sold KT-432PT transmitter, it can be adjusted using the transmitter).
- Optional LED light unit clear & red (MZW429R) can be installed.

[Technical data]
- Total length 177.0mm
- Overall width 76.0mm
- Overall height 44.0mm
- Complete weight 130g
- Wheelbase 98mm (LL)
- Tread F: 64.5mm R: 62.0mm
- Chassis used: RWD (MR-03)
- Motor mount MM
- Front wheel offset narrow +1.5mm (for RWD)
- Rear wheel offset wide +1.5mm (for RWD)
- Radio used: Syncro KT-531P

[Kit contents]
- Factory completed chassis
- Painted and marked factory completed plastic body
- Syncro KT-531P 2.4GHz transmitter
- Complete set of parts for changing front tread
- Front suspension spacer for adjustment
- 6T/7T/8T/9T pinion gear
- wheel wrench
- Pinion removal tool
- Spare wheel nuts
- Pairing stick
- Tires and wheels included

[What you need before driving]
- 4 AAA alkaline or nickel metal hydride batteries for running
- 4 AAA alkaline batteries for transmitter


Item Size/Weight : 30.5 x 24 x 11 cm / 835g

Product Specifications

Item series

Mini-Z RWD

Item code

32349GO

JAN code

4548565455515
