Product Description

- A basic horizontal pier for converting a double track system into an elevated track.

[Features]
- Compatible with double track slab rail and double track wide PC rail
- Cannot be used in single track viaduct systems due to rail thickness
- Couplings compatible with double track rails (PC sleepers) are included.
- Couplings compatible with double track slab rails and wide PC rails are sold separately.

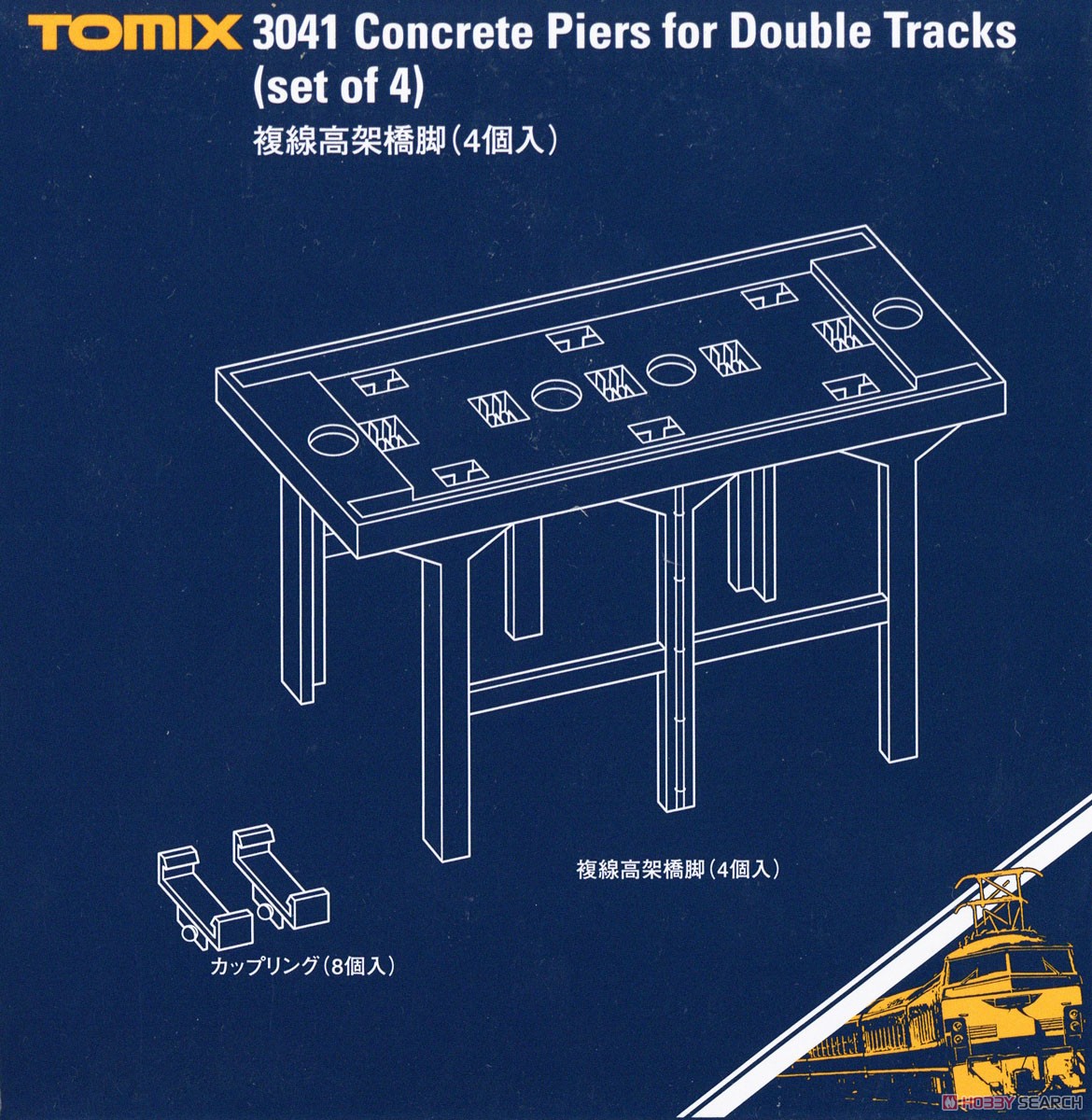

[Product contents]

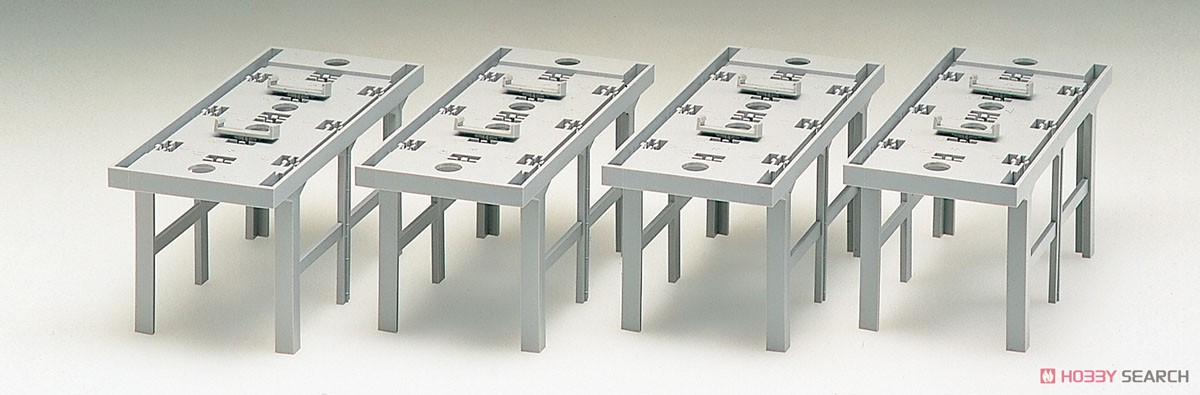

- Double track elevated pier (4 pieces)
- Coupling (8 pieces)

[How to assemble with double track rail]
- This product is a pier dedicated to double-track rails and double-track slab rails (sold separately). Please use it when making an elevated line. For detailed handling instructions, please read the instructions included with the rail product carefully.

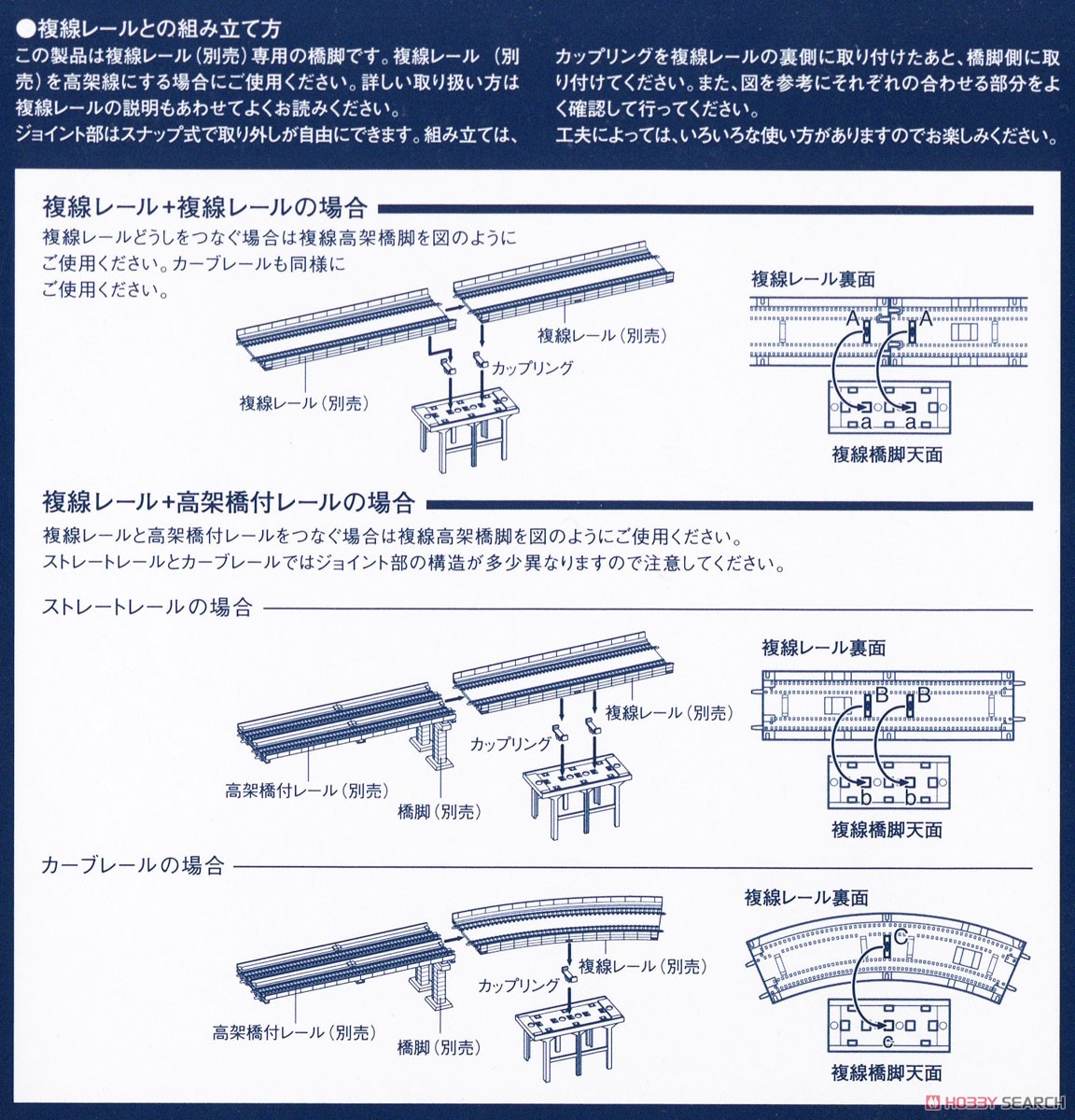

- The joint part is a snap type and can be removed freely. To assemble, attach the coupling to the back side of the rail and then attach it to the pier side. Also, please refer to the diagram on the back of the package and carefully check the parts that fit together.When using on double track slab rails, do not use the couplings that come with this product, but the ones that come with the rail product. Please use [coupling for double track slab rail].

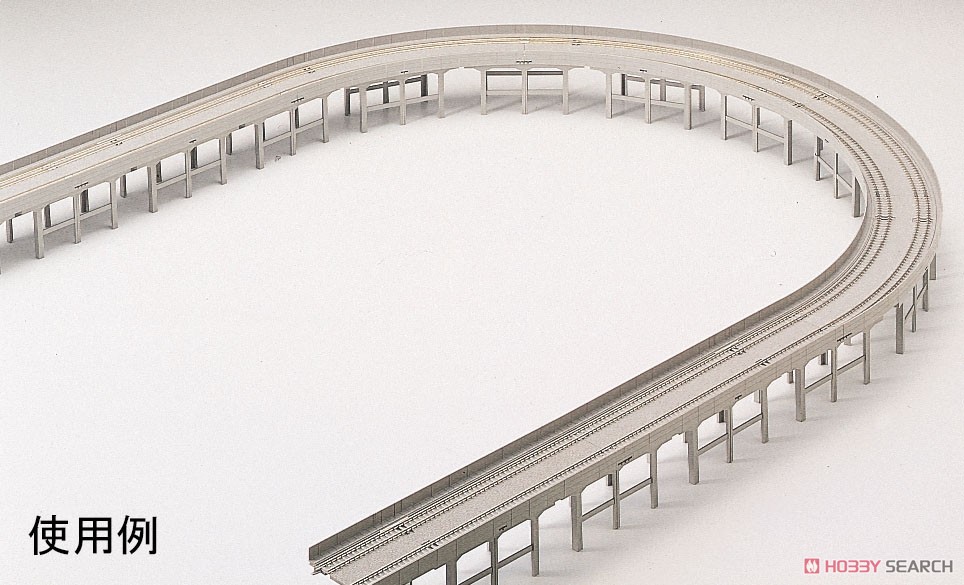

- Depending on your ingenuity, there are many ways to use it, so please enjoy it.




Item Size/Weight : 13.4 x 12.9 x 7.1 cm / 143g

Product Specifications

Item series

Structure

Item code

3041

JAN code

4904810030416
