Product Description

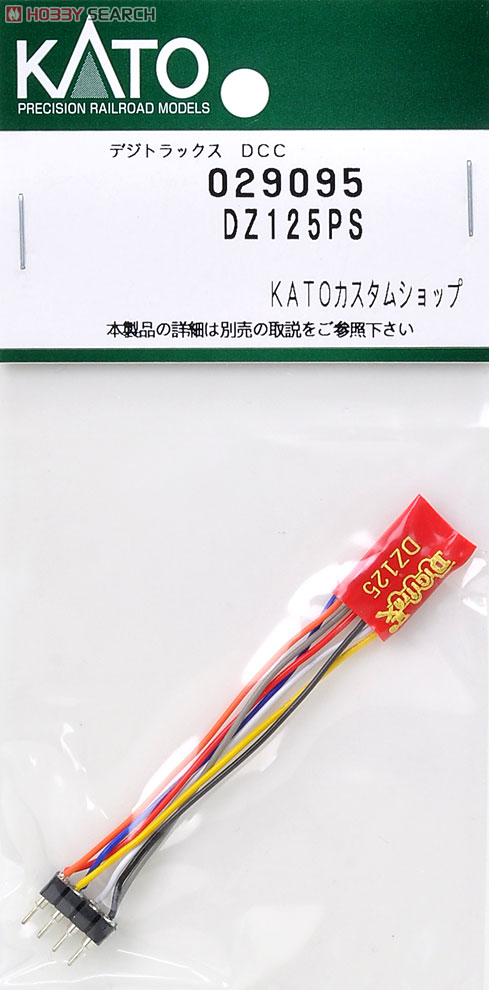

New Tiny Decoder with 8 Pin Plug (Replaces DZ123PS)
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
SuperSonic™ motor drive for silent operation.
FX 3 Function outputs for prototypical lighting effects and on/off control:
Constant Brightness Lighting with directional or independent control
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
FX 3 & Standard Function Qualifiers operate functions based on direction,
F0 on or off, direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Decoder Lock equipped
Transponder equipped ready for transponding on your layout.
BEMF equipped
All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline.
Decoder Reset CV with or without speed table reset.
Motor Isolation Protection prevents damage to your decoder.
Basic, Advanced & UniVersal Consisting
2 Digit and 4 Digit Addressing
Works with most DCC-ready Z, N, and HO scale locomotives up to 20V track voltage
DCC Compatible
BEMF equipped
FCC Part 15, Class B RFI compliant
Current Rating1.00 Amp (1.25 Amps Peak
Size.41" x .340" x .112"
10.6mm x 8.7mm x 2.86mm
(Approx. measurement without wires + plug)
InstallationWired Plug
Function Outputs2-500mA
Function Type
FX3
Item Size/Weight : 12.5 x 6.2 x 0.5 cm / 4g
Product Specifications
- Item code
- 29-095
- JAN code
- 4952844290955
Purchase Information
This item is limited to 20 per household.
