Product Description
[Summary]
- It is a switching type power pack power running - of microcomputer control, very - braking - coasting
[Feature]
- I enjoy driving the vehicle sense at 4 position toggle.
- Rate of acceleration and braking power can be set arbitrarily.
- Orbit voltage adjustment is attached therefore, the vehicle starts moving at the same time as the handle switch.
- PWM that can be lit stop when the vehicle lighting is (pulse) method.
- There are two types of HO gauge and N gauge due to the difference of the output voltage.
- Texture is high and is all-metal exterior with a mass feeling.

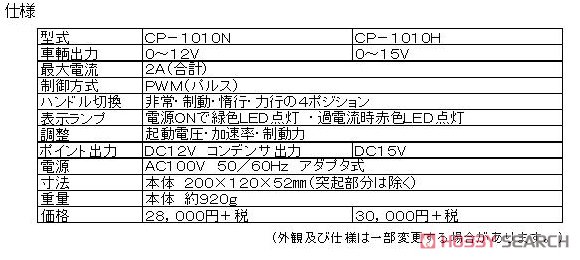

[Specification]
- Vehicle power: 0 ~ 12V
- Maximum current: 2A (total)
- Control method PWM (pulse)
- Steering: 4 position of emergency, braking, coasting, powering
- Display: green LED is lit or over-current red LED lights when power is turned ON
- Adjustment: start-up voltage, acceleration rate, braking force
- Point output: DC12V output capacitor
- Power: AC100V 50/60Hz adapter formula
- Dimensions: (excluding protrusions) body 200x120x52mm
- Weight: about 920g body
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 24 x 23 x 8.3 cm / 1216g
Product Specifications
- Item code
- CP-1010N
- JAN code
- 4582330652129
