Product Description

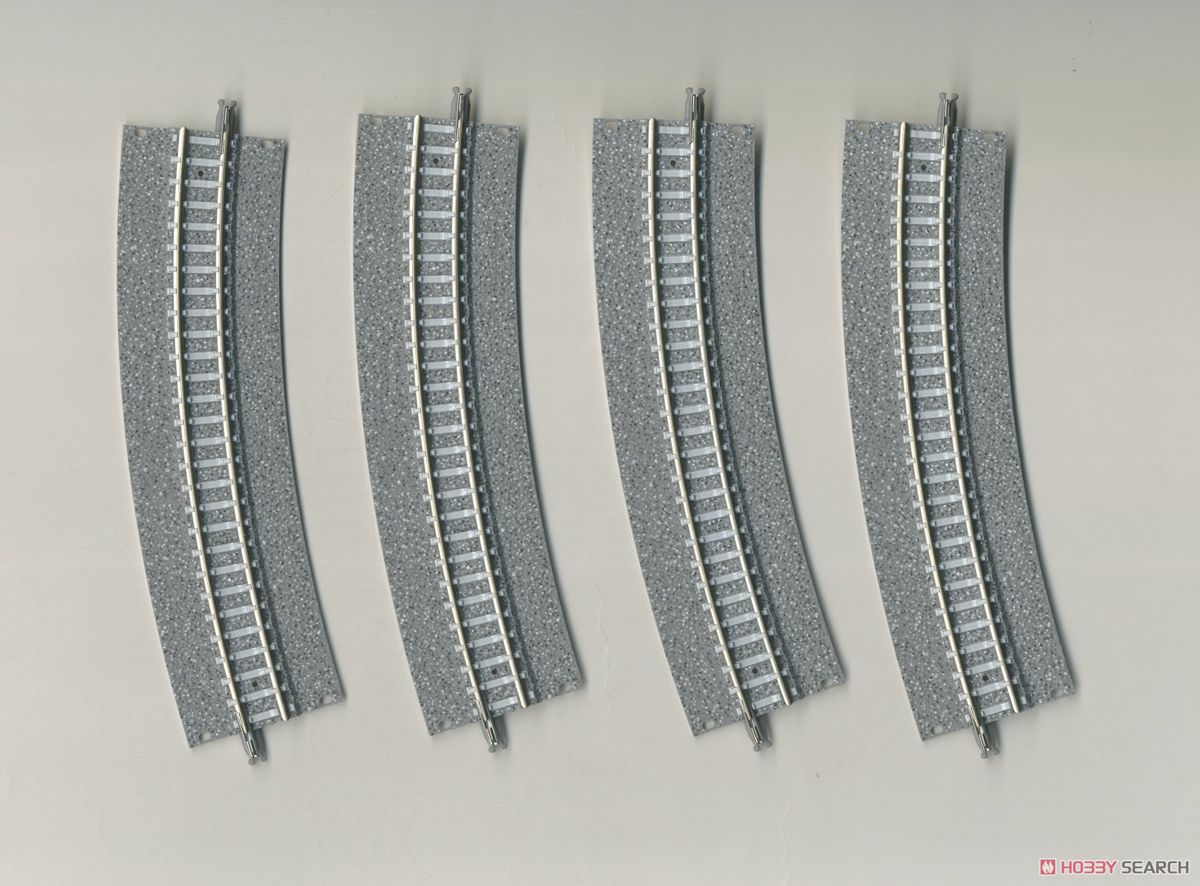

- Radius 354mm curve angle 22.5 ° width 37mm wide curve Kant introduced rail.
- Painted the ballast and sleepers, very beautiful appearance.
- Cant rail curve outside of the rail is higher than inside, it is rail to be introduced into the cant rail with a gradually Kant from flat without Kant.
- Kant inclination angle is about 0-4 °, curve angle 22.5 ゚De gradually change.
- Rail each other and can be combined with snap with a nail, is an easy and reliable connection.
- There is a connection compatible with conventional TOMIX rail.
- Also supports single line piers sold separately. Others, fence, railing, the rail side the side wall and can be mounted. It also supports various overhead wire pole mount.
- Sold separately CR (L) can be used to 391-22.5-WP as double track rail is connected to the outside.
- If you install when used as a double track rail to wide rail cant part for coupling (coupling for wide rail slab rail to flat introduction part) on the underside and also supports multi-line effect pier.
- Is mounting a feeder for wide rail slab rail on the underside, to power. (Possible feeder for slab rail also mounting. Traditional feeder not be installed)
- Structure on a not correspond to the mounting of sensors,.
- 2 This is a set of CL to gradually inclined cant while curves CR and left to slowly cant slope while the curve to the right.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 17.8 x 5 x 2.3 cm / 61g
Product Specifications
- Item code
- 1783
- JAN code
- 4543736017837
Purchase Information
This item is limited to 13 per household.
