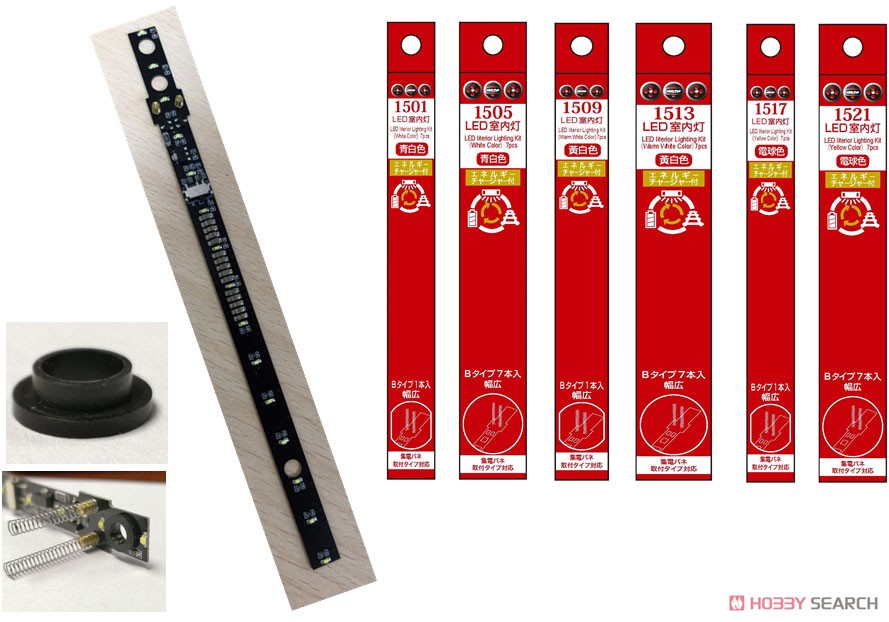

-Following the A type (narrow) released in July, the B type (wide) will be newly introduced.
* This is a genuine indoor light compatible with JR Kyushu 305 series and Sotetsu 20000 series that will be released from Popondetta.
As with existing products, it has a light / dark selector switch and a power storage (energy charger).
[Specifications (Specifications may change when commercialized)]
-There is no change in the light quantity and color of other types of indoor lights already released by our company.
[About changeover switch]
-Light intensity can be switched with the switch on the board
-Mode S: Normal mode that takes into account the illuminance of the actual vehicle. Large amount of electricity stored
-Mode H: Brightness priority high illumination mode. Small amount of electricity stored
* The default setting is mode S (standard).
* Compatible with TOMIX vehicles, but some vehicles cannot be installed.
* Cannot be installed in the case of streetcars and vehicle interior lights.
-The colors are blue white, yellowish white, and light bulb color.
-About yellowish white: Ideal for vehicles that use a UV window with a neutral color between light blue and light bulb.
-Number of LEDs: 15 installed.
[set content]
-1 pc: 1 pc., 2 current collectors, 1 silicon rubber
-7 pieces: 7 boards, 14 current collectors, 7 silicon rubbers
-Please use this product at 12V or less.
-Since it is an N gauge room light, it is strictly prohibited to use it for any other purpose.
[how to use]
-Cut to a length that can be mounted on the vehicle.
* Please note the location of the board that cannot be cut off.
[Mounting method]
-Attach the silicon rubber to the spring and the appropriate hole attached to the room light board.
* Select and install the silicon rubber where the hole in the vehicle body matches.
Attach a board with silicon rubber to the hole in the vehicle body.
Install the spring so that it matches the indoor lamp mounting position under the floor.
