Product Description
- The conventional MINI-Z had a receiver section (receiver section), servo control section, and speed controller mounted on a single control board, but with the MR-03EVO, the receiver section is made independent as a unit.
-By purchasing and installing an optional receiver unit according to your transmitter, you can use KYOSHO (EX-6R/KT-531P), KO (EX-2/EX-RR), Futaba (T7PX/ T7XC/T4PM) and Flysky (Noble NB4) transmitters are now available.
- In addition, positioning feedback control speed is improved by 11.2 times (VE PRO ratio) by installing a dedicated CPU for servo control.
- The control program has also been completely redesigned to deliver the best steering feel in the history of the MINI-Z.
- Speed controller response has been improved up to 100 times (VE PRO ratio).
- The motor comes standard with the new KYOSHO SPEED HOUSE brand XSPEED 85 (8500KV) brushless motor with an eye-catching aluminum case that integrates a heat sink essential for cooling.
- From this EVO board, it is now possible to switch to a brush motor with the ICS manager, which was not possible with the chassis set so far, and it is possible to make more detailed settings.
- In this way, the MR-03EVO, which incorporates new innovations, will bring you a different dimension of driving that you have never experienced before.
- In addition, the SP chassis is equipped with an oil damper (No.MZW432) as standard equipment, which is assembled with nickel-plated hex screws.
- In addition, the ball differential II set, which is normally black, has a red anodized finish that matches the motor.
- Also included is a new upper arm with caster angles (1°/2°/3°) that racers have been waiting for. The range of settings has expanded.

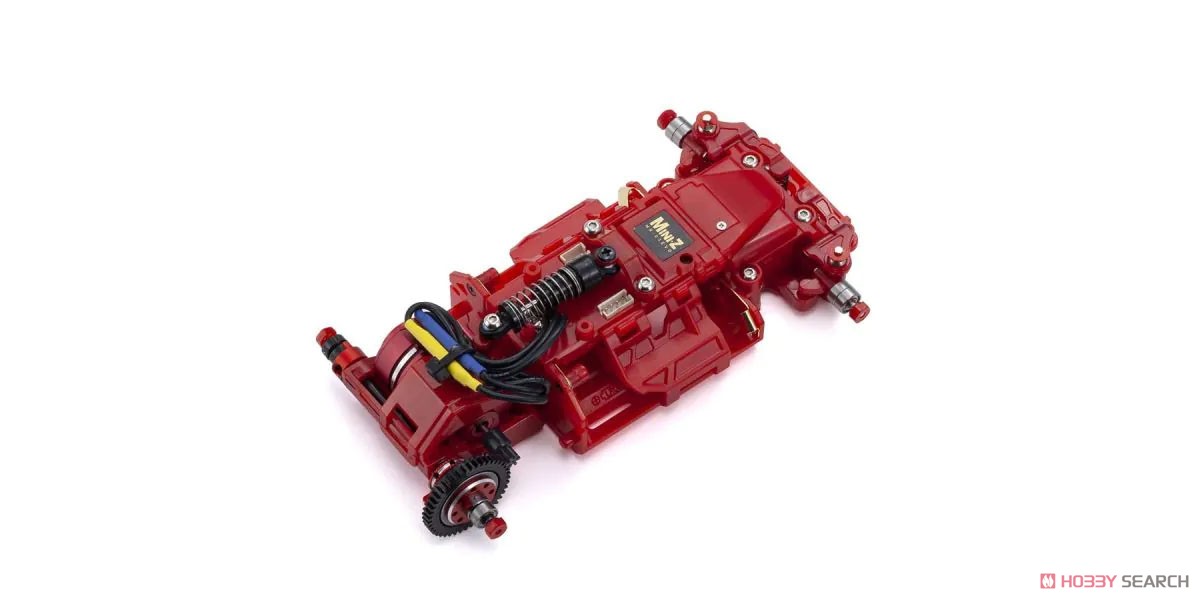

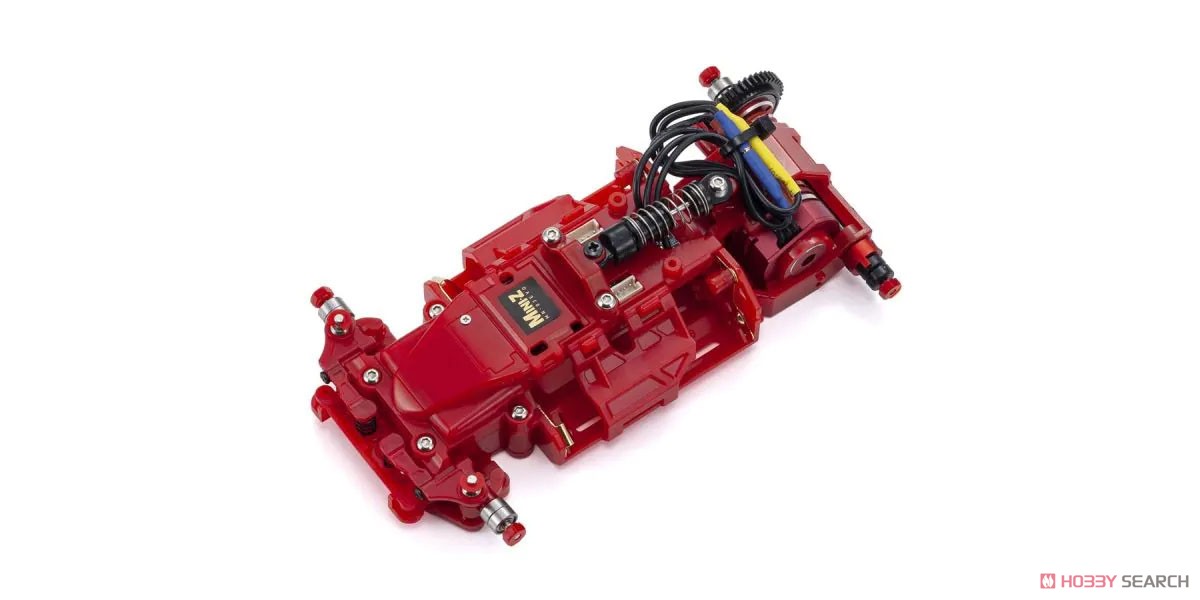

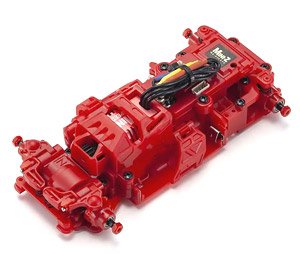

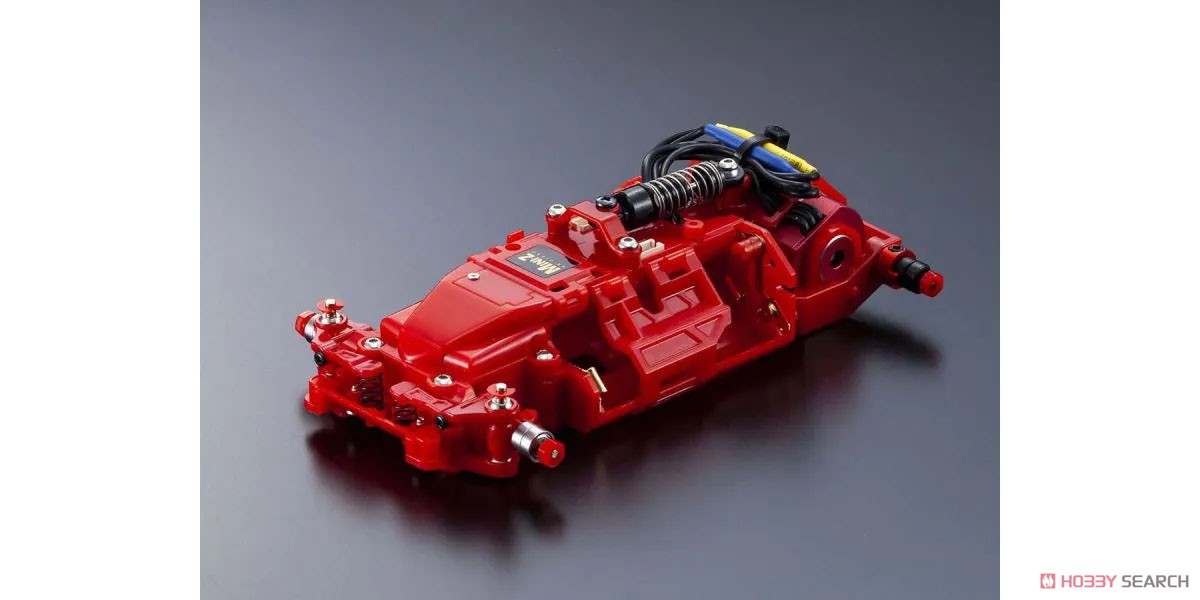

- The Red Limited uses a new chassis made up of red parts.
- A high sense of unity is achieved with the motor alumite color and ball differential.
- MR-03 chassis set with separate ESC and receiver unit for the first time in MINI-Z history.
- Adopted new KYOSHO SPEED HOUSE XSPEED 85 brushless motor (KV8500).
- In addition to various settings in the ICS manager, it is also possible to select brushless motors and brushed motors.
- Independent CPU control improves internal processing speed and allows for finer control.
- Full bearing, ball differential set II (red alumite finish) are standard equipment.
- Separated receiver cover and front upper arm attachment improves workability when changing tread.
- Option parts related to MR-03 chassis can be installed.
- Newly developed front caster angle upper arm (1°/2°/3°)
- A special specification that uses a color chassis that can only be obtained with the chassis set.
( This is a machine translation. Please allow for possible misinterpretations in the text. )
Item Size/Weight : 23.5 x 10 x 6 cm / 257g
Product Specifications
- Item code
- 32792SP
- JAN code
- 4548565423187
Purchase Information
This item is limited to 3 per household.
