Product Description

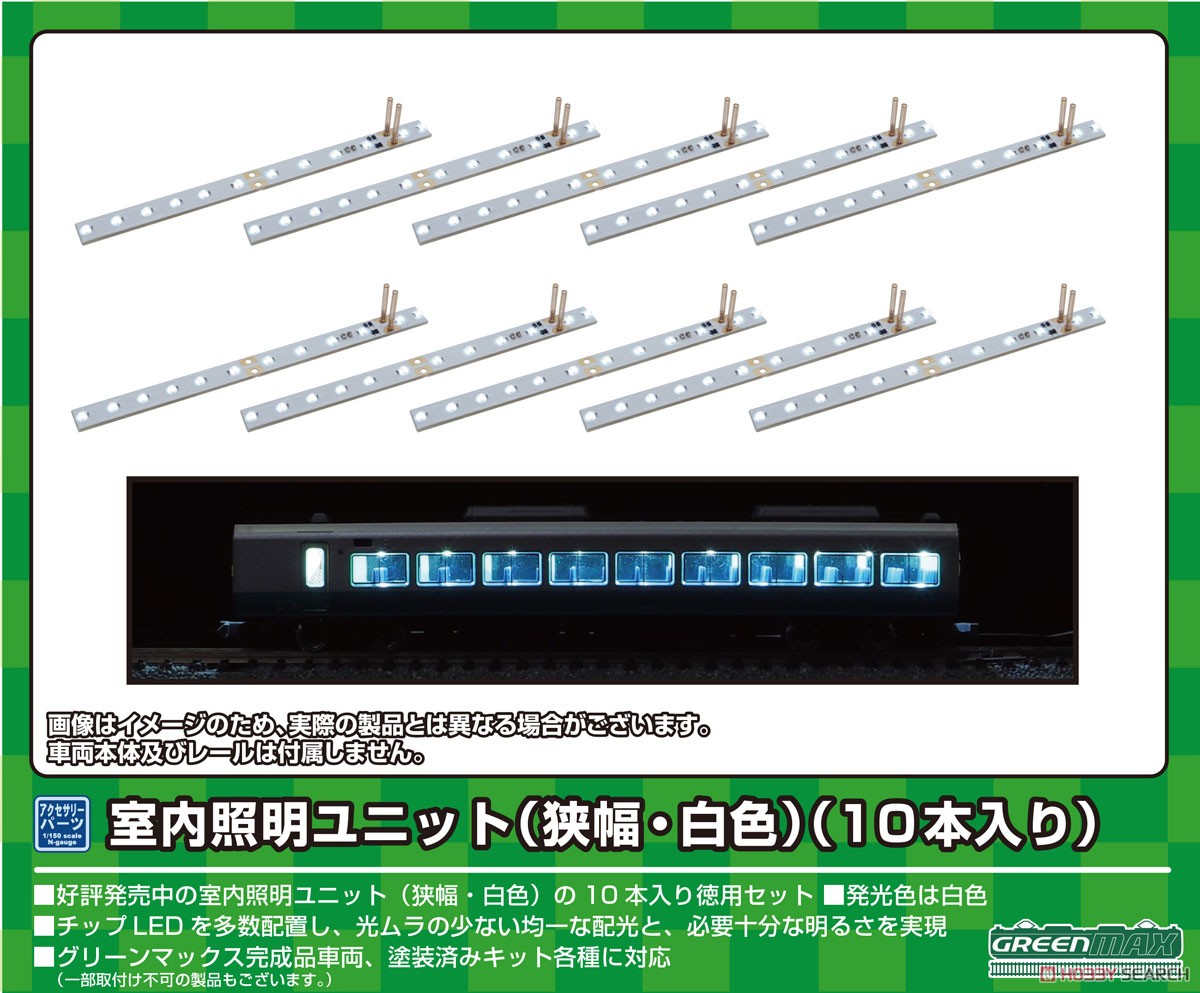

- Interior lighting unit for N scale vehicles.
- 12 chip LEDs are arranged to achieve uniform light distribution with little unevenness and sufficient brightness.
- By cutting the length of the board, it can be installed in 17m to 21m class vehicles.

- Value set of 10 indoor lighting units (narrow width, white)
- Emission color is white
- Compatible with Green Max completed vehicles and various pre-painted kits (some products cannot be installed)
- The length of the board can be adjusted by cutting it.

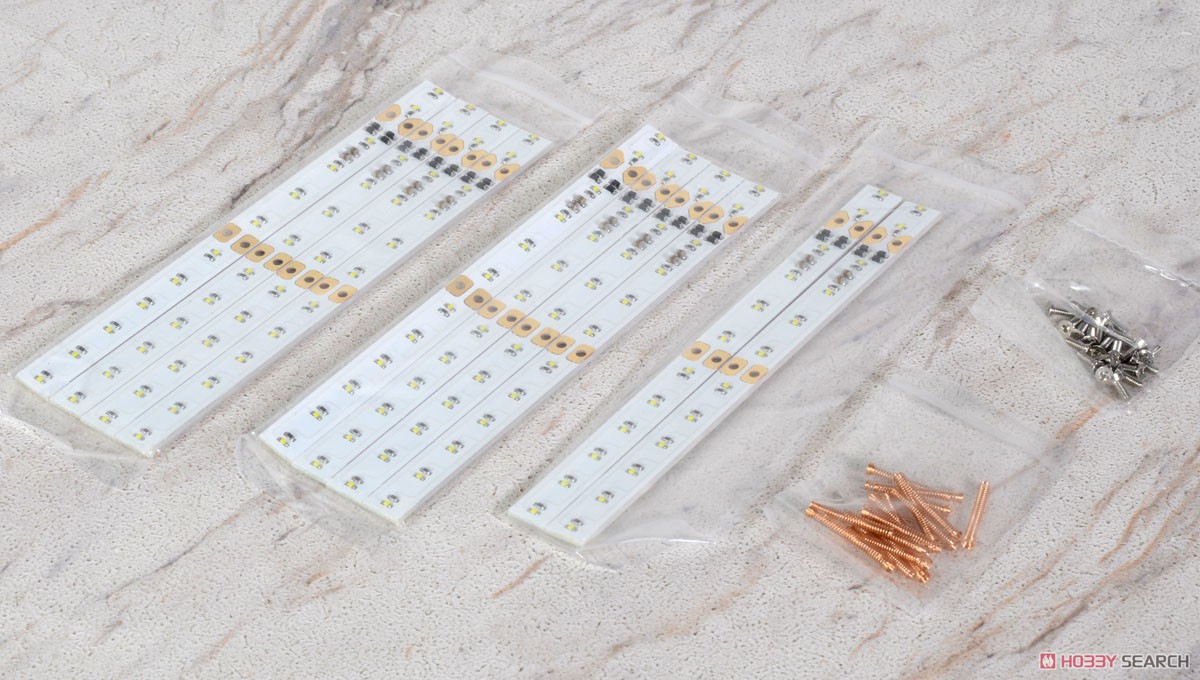

[set content]
-Indoor light body x 10 pieces
- 20 current collector springs
- Screws x 20
- operating instructions

[Product features]
- Interior lighting unit for N scale vehicles equipped with 12 chip LEDs
- External dimensions (excluding current collector spring) = length 130mm x width 9mm x height 3mm

- A large number of chip LEDs are arranged to achieve uniform light distribution with little unevenness and sufficient brightness.
- By cutting the length of the board, it can be installed in 17m to 21m class vehicles.
- Emission color is white
- Compatible vehicles:
Can be installed in vehicles that are compatible with spring-type interior lighting units.
・Green Max completed vehicle...<4000> series, <30000> series, <50000> series
・Vehicle body kit that can be combined with a floor plate and trolley compatible with current collection

*When installing into a vehicle, the user performs a simple task of assembling the included current collector spring and screws to the board.


Item Size/Weight : 17.5 x 3.5 x 1.9 cm / 52g

Product Specifications

Item series

Parts

Organization

Seibu Railway , Shizuoka Railway (Shizutetsu) , Keisei Electric Railway , West Japan Railway (JR West) , Tokyo Metro , Toyo Rapid Railway , Hankyu Electric Railway (Hankyu Corporation) , Kinki Nippon Railway (Kintetsu Corporation) , Nagoya Railroad (Meitetsu) , Nagano Electric Railway (Nagaden) , Japan National Railways (JNR) , Central Japan Railway (JR Central, JR Tokai) , Tokyo Metropolitan Bureau of Transportation (Toei) , Keihan Electric Railway , Keihin Electric Express Railway (Keikyu) , Tobu Railway (TRC) , Kyushu Railway (JR Kyushu) , Tokyu Corporation , Sanyo Electric Railway (Sanyo Train) , Keio Corporation

Region

Kanto , Chubu , Kansai , Chugoku , Kyushu , Tohoku

Item code

8463

JAN code

4946950846304
