Product Description

-- Introducing a short curved rail with a radius of 541 mm and an easy-to-use 7.5 degree rail adjustment!

[Official manufacturer introduction video]



[Product Features]
Compatible with conventional TOMIX rails
The rails are connected by snapping together.
The rail specifications are a curve radius of 541 mm and an angle of 7.5 degrees.
DC feeder or one-touch sensor can be attached to the center of the rail
Power can be supplied by attaching a feeder for wide rails and slab rails to the underside (feeder for slab rails can also be attached)
Sensors for wide rails and slab rails can be installed by user modification (sensors for slab rails cannot be installed)
Compatible with various overhead pole installations
The sleepers are PC sleepers.

[point]

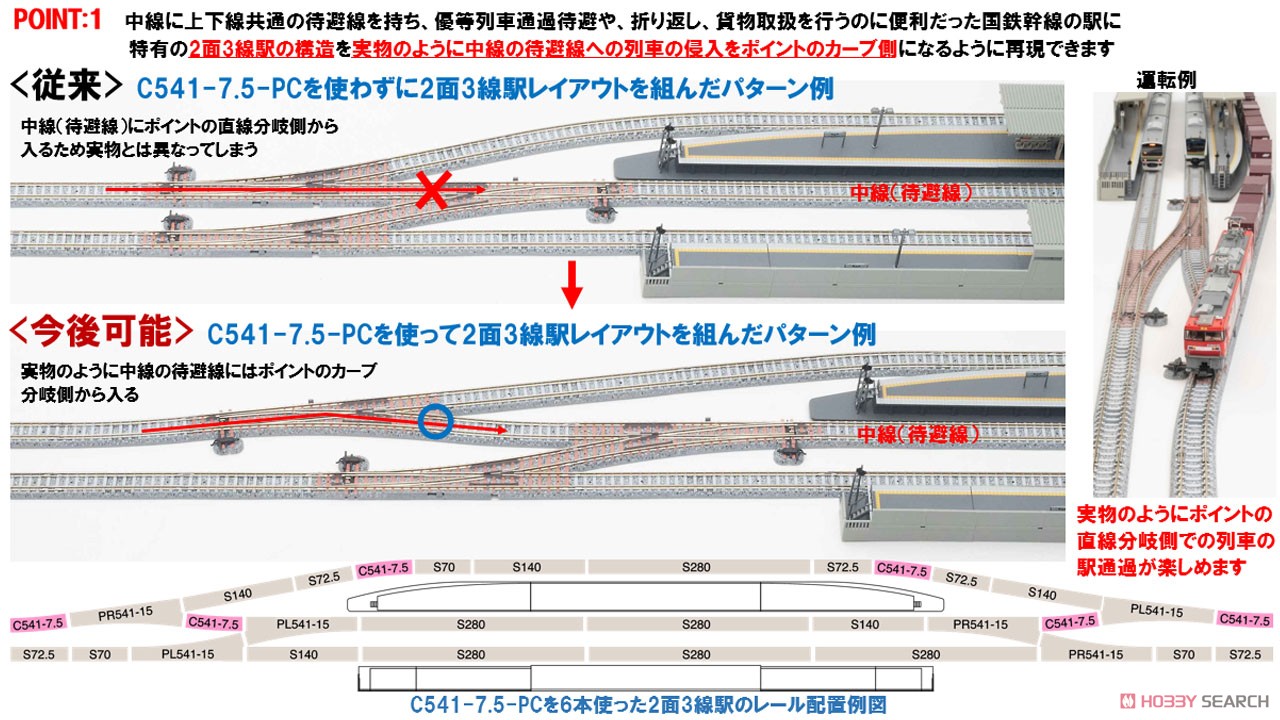

- The station has a common siding on the center track, which is unique to main line stations on the national railways. This was useful for express trains to pass through, turn around, and handle freight. The structure of this station with two platforms and three tracks is reproduced exactly like the real thing, with trains entering the siding on the center track on the curved side of the points.
- Conventional: The train entered the center track (siding) from the straight branch side of the points, which was different from the actual train.
- Uses C541-7.5-PC: Like the real thing, the center line siding is accessed from the curve branch side of the points.
You can enjoy trains passing through stations on the straight branch side of the points just like in the real thing.

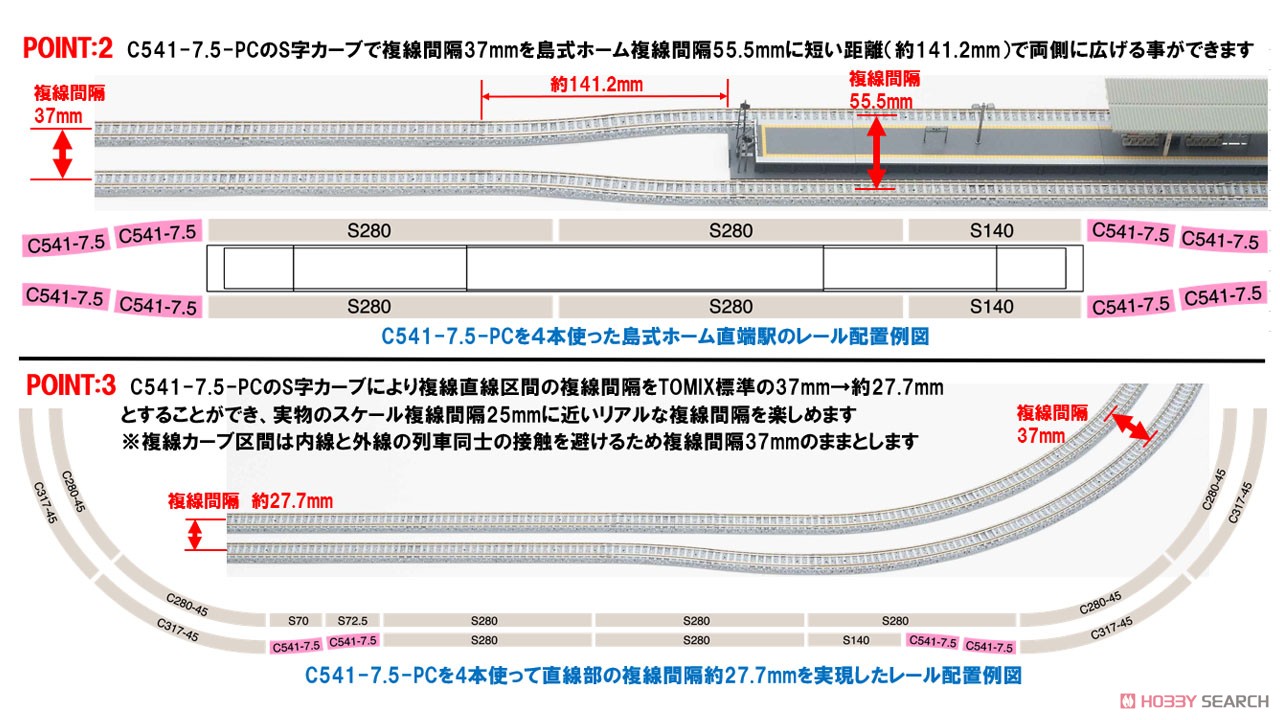

- The S-curve C541-7.5-PC allows the track spacing to be expanded from 37mm to 55.5mm on both sides over a short distance (approximately 141.2mm) on the island platform.
- The S-curve of the C541-7.5-PC allows the distance between the double tracks in the straight double track sections to be reduced from the TOMIX standard of 37mm to approximately 27.7mm, allowing you to enjoy a more realistic double track distance that is close to the 25mm distance between the double tracks on the actual scale.
* In double-track curved sections, the track spacing will remain at 37 mm to prevent trains on the inner and outer tracks from coming into contact with each other.

[Product Contents]
- C541-7.5-PC x 4


Item Size/Weight : 11.3 x 3 x 2.1 cm / 20g

Product Specifications

Item series

Track

Item code

1199

JAN code

4543736011996
