Product Description

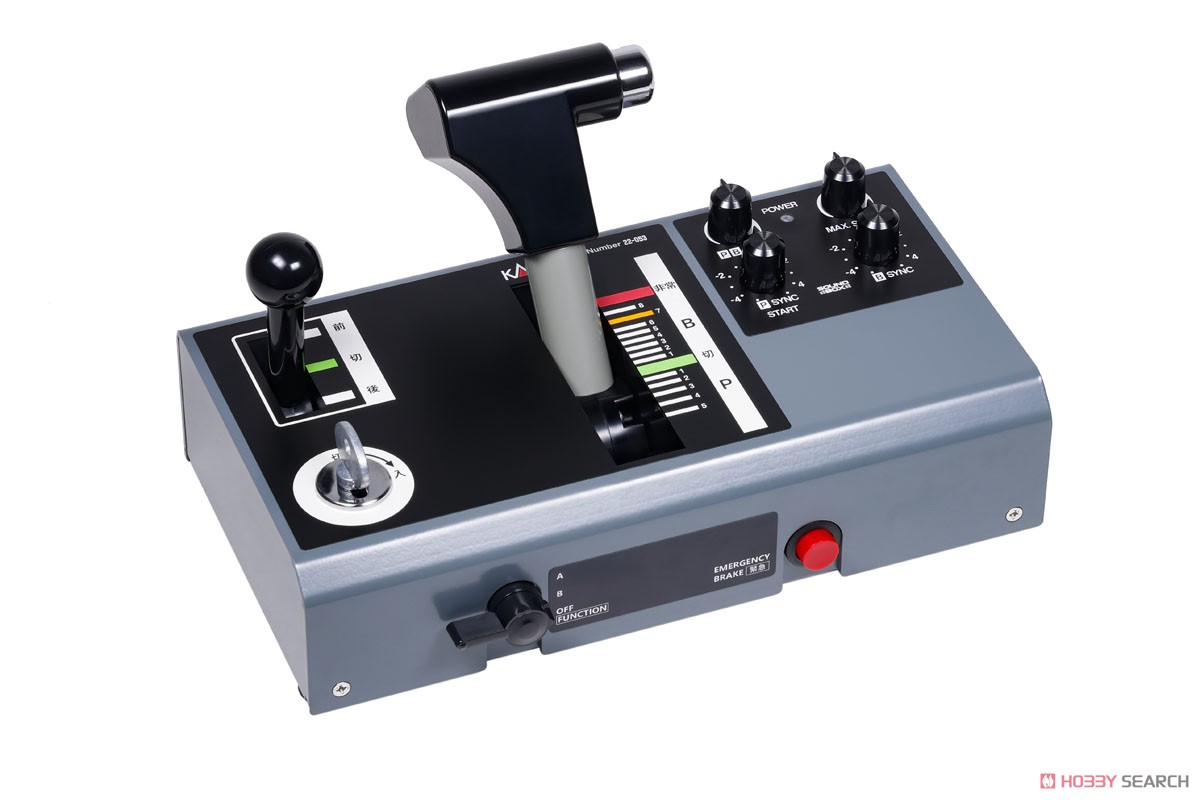

──The standard controller for model trains!

[Product introduction]
- The one-handle cab controller has finally arrived, allowing you to experience being a real driver with the same feel as a real train. With a focus on texture, weight, and operability, it creates a more realistic cab appearance and operation action. In addition, by linking it with the sound box, you can enjoy a more realistic model train driving experience, including running and sounds.
- [EC-1 One-handle Cab-type Controller] is the main unit only. Please use it together with the AC adapter for N/HO (sold separately).
- An all-in-one set [One-Handle Cab <Sound Driving> Box Set] will also be released at the same time, which includes a sound box, AC adapter, anywhere power connector, and a sound card that lets you enjoy driving as if you were in a cab.

[Product Features]
- A controller that works in conjunction with the sound box to provide a realistic driving experience with the feel of a real car.

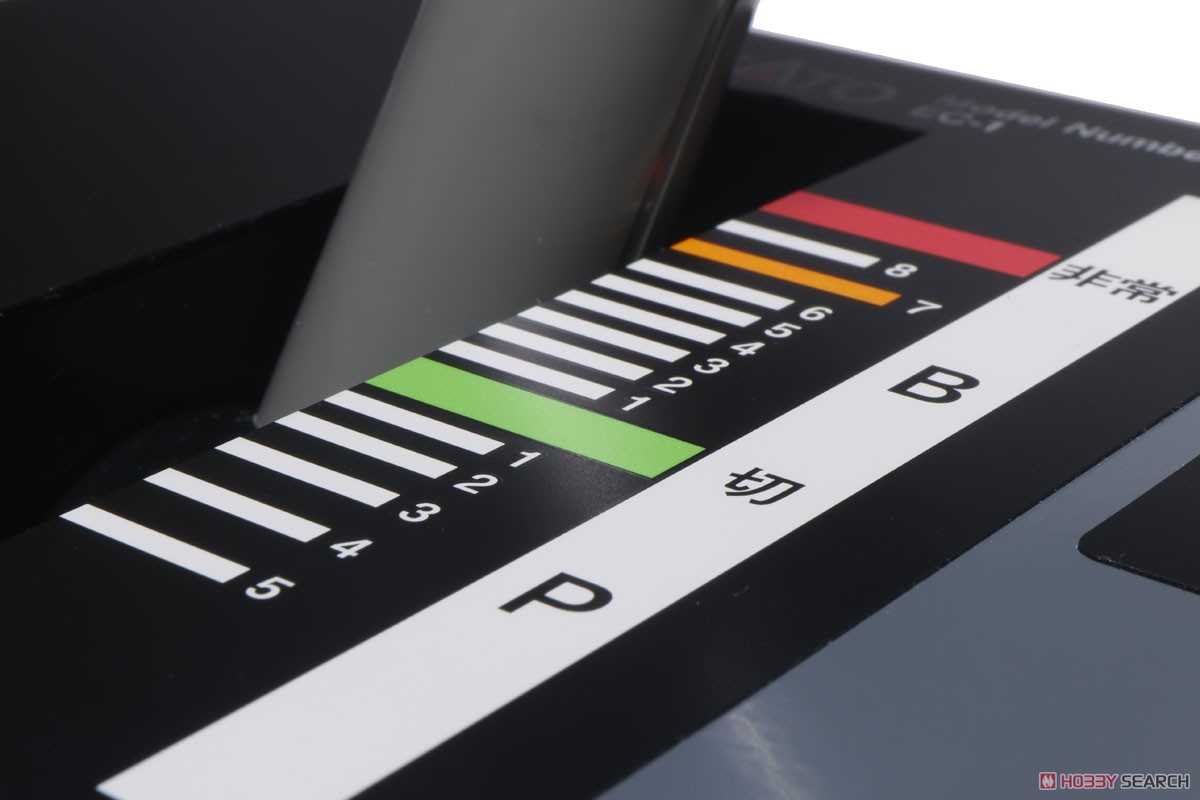

- The handle shape and specifications are accurately modeled after the actual vehicle, with notches [Power (P): 5 steps, Neutral (off), Braking (B): 8 steps + emergency], and when in [P] position, it is the same as the actual vehicle.
- Can be inserted by pressing the button on the handle
- When coasting in the [OFF] position, the train speed is kept constant
- By using the separately sold N/HO AC adapter according to your needs, you can operate the train at the optimum output for running N gauge or HO gauge trains.
- Equipped with power supply function for sound box
- The power is turned on by inserting the included master controller. It also turns the power supply to the sound box on and off.
- When a sound box is connected, the brake release sound will sound when the brake is released (turned off), and the sound synchronization volume (SYNC) is equipped with separate acceleration/deceleration.
- Improved responsiveness of driving sound

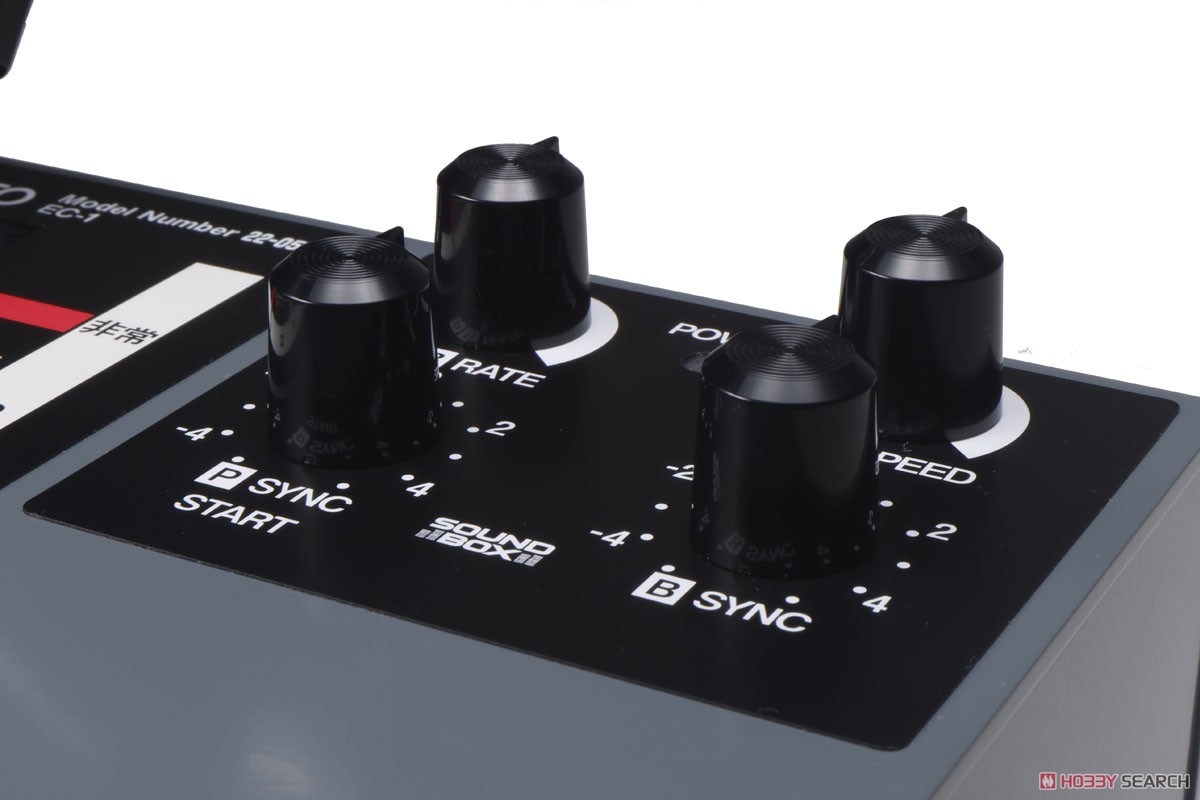

- Equipped with maximum speed adjustment volume and acceleration/deceleration adjustment volume
- Body exterior color is dark gray
- No side snap terminals. If you need a snap terminal, such as a point switch, use the separately sold <22-081 Anywhere Power Connector>.
- Dimensions: 246mm x 124mm x 150mm Weight: 2.2kg
- Input voltage is DC13.5V / 17V (compatible with AC adapter for N and AC adapter for HO, sold separately). Output voltage is 0-12V / 0-16V, 2.0A

[set content]
- EC-1 One-handle cab controller

[accessories]
- Masconkey × 2
- Instructions
- Power supply cable
- How to play guide
- Soundbox connection cable

[Related optional parts]
- 22-082 AC adapter for N
- 22-083 HO AC adapter
- 22-102 Sound Box (sound card sold separately)
- 22-081 Anywhere Power Connector


Item Size/Weight : 43.5 x 23.5 x 22.5 cm / 3160g

Product Specifications

Item series

Control Systems

Item code

22-053

JAN code

4949727691763
